Double Ram Grab Buckets 'DOUBLE PUMPER'

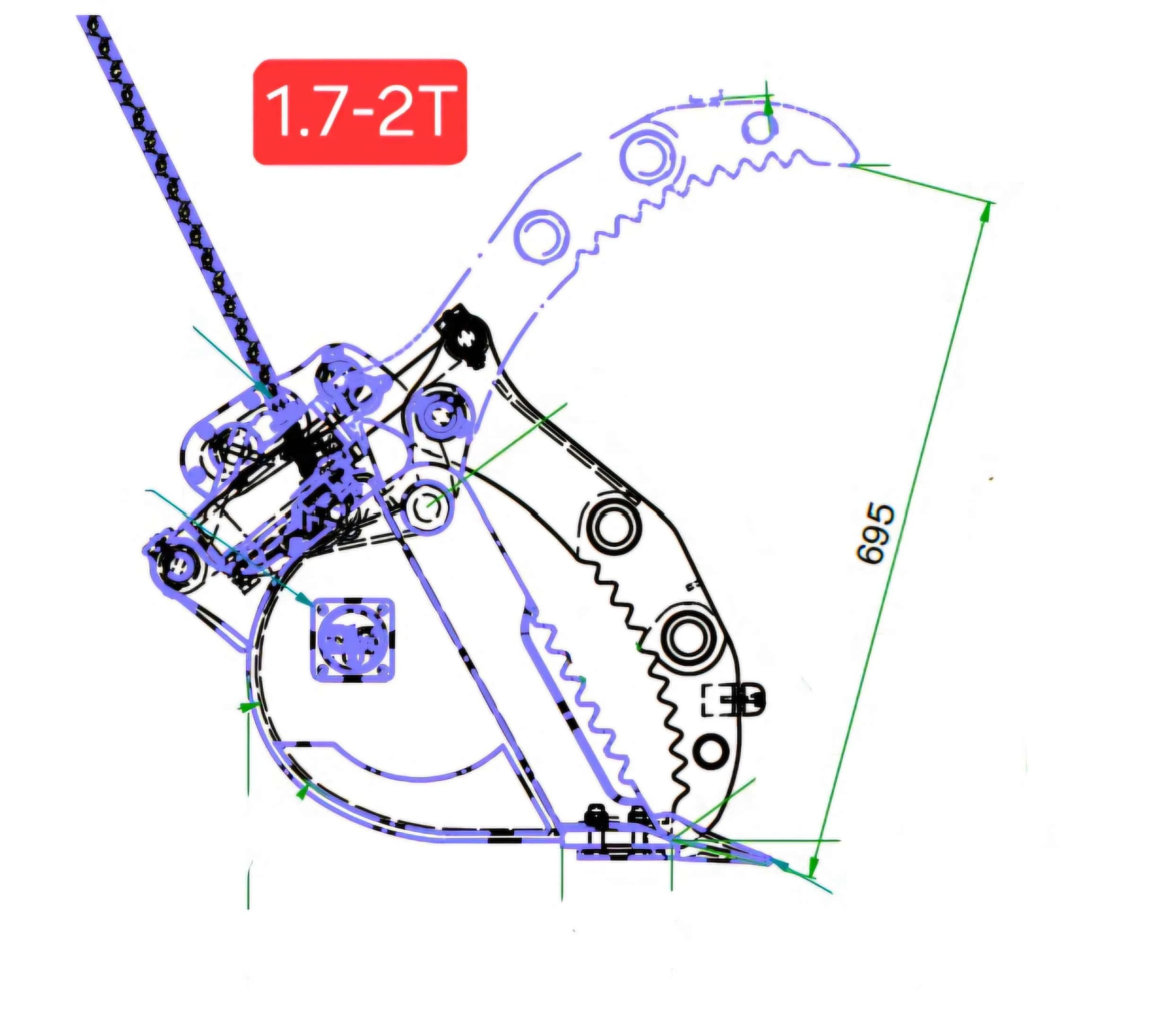

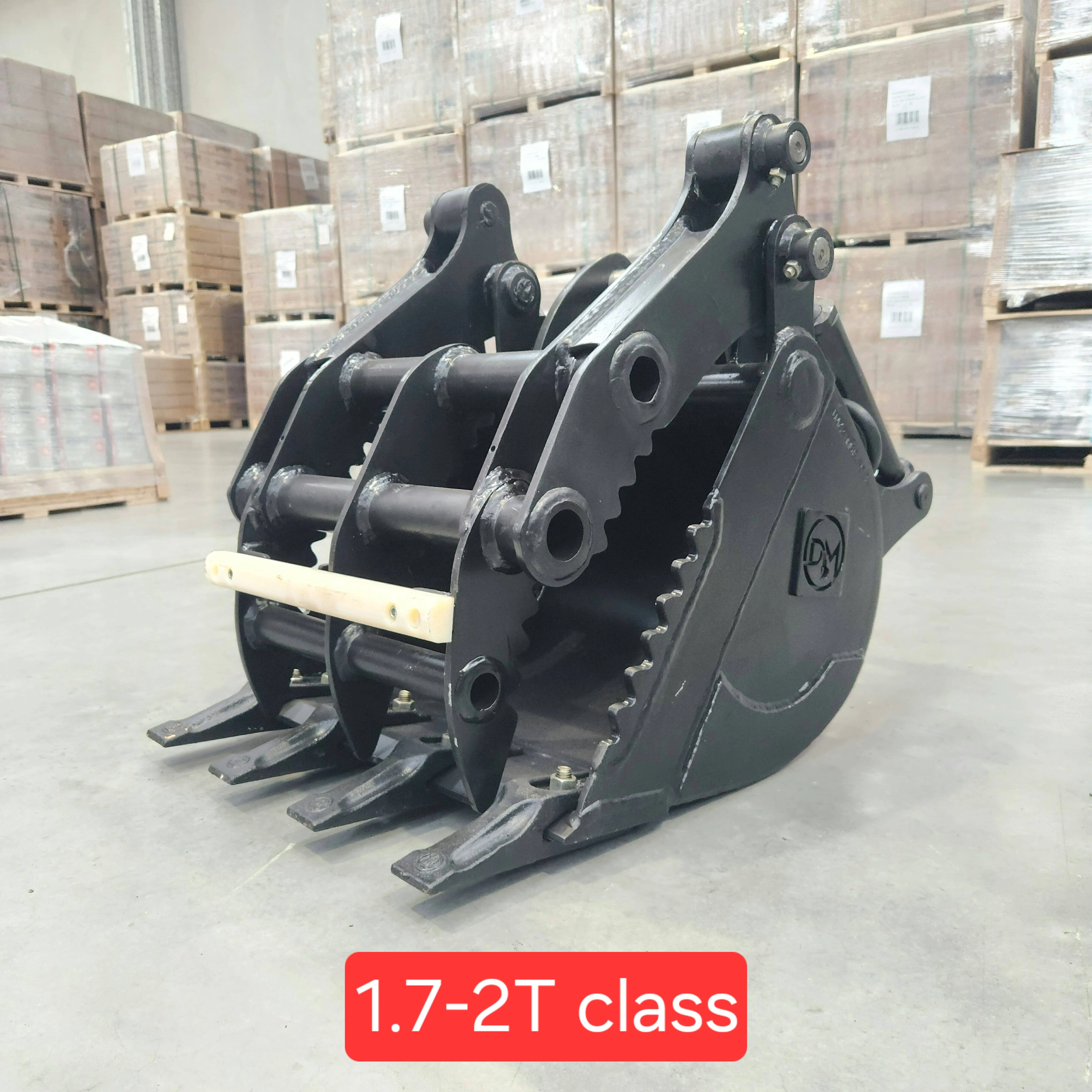

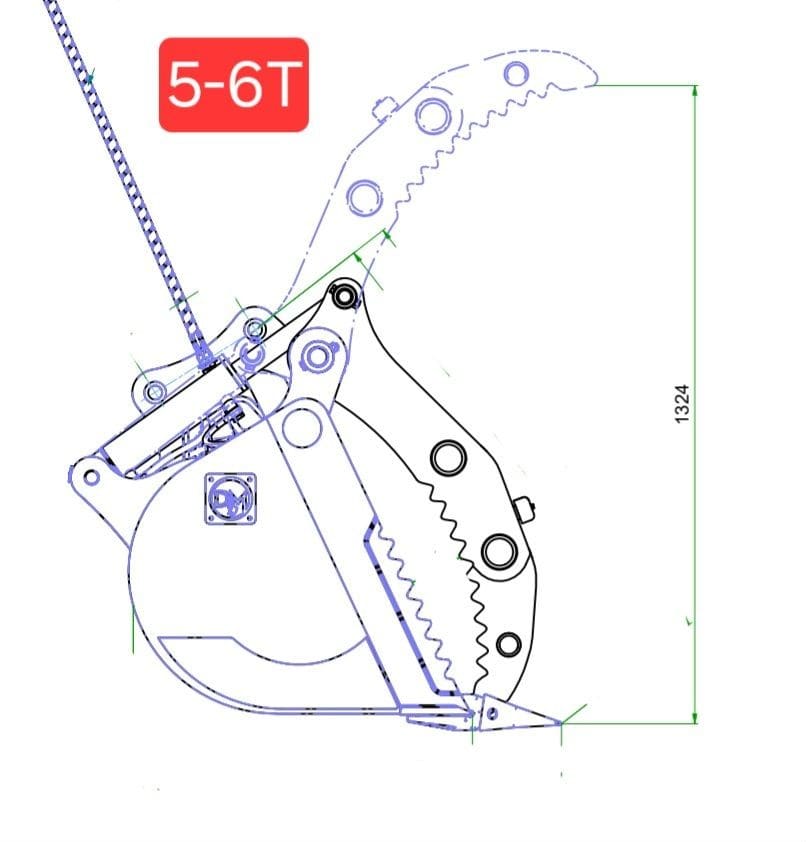

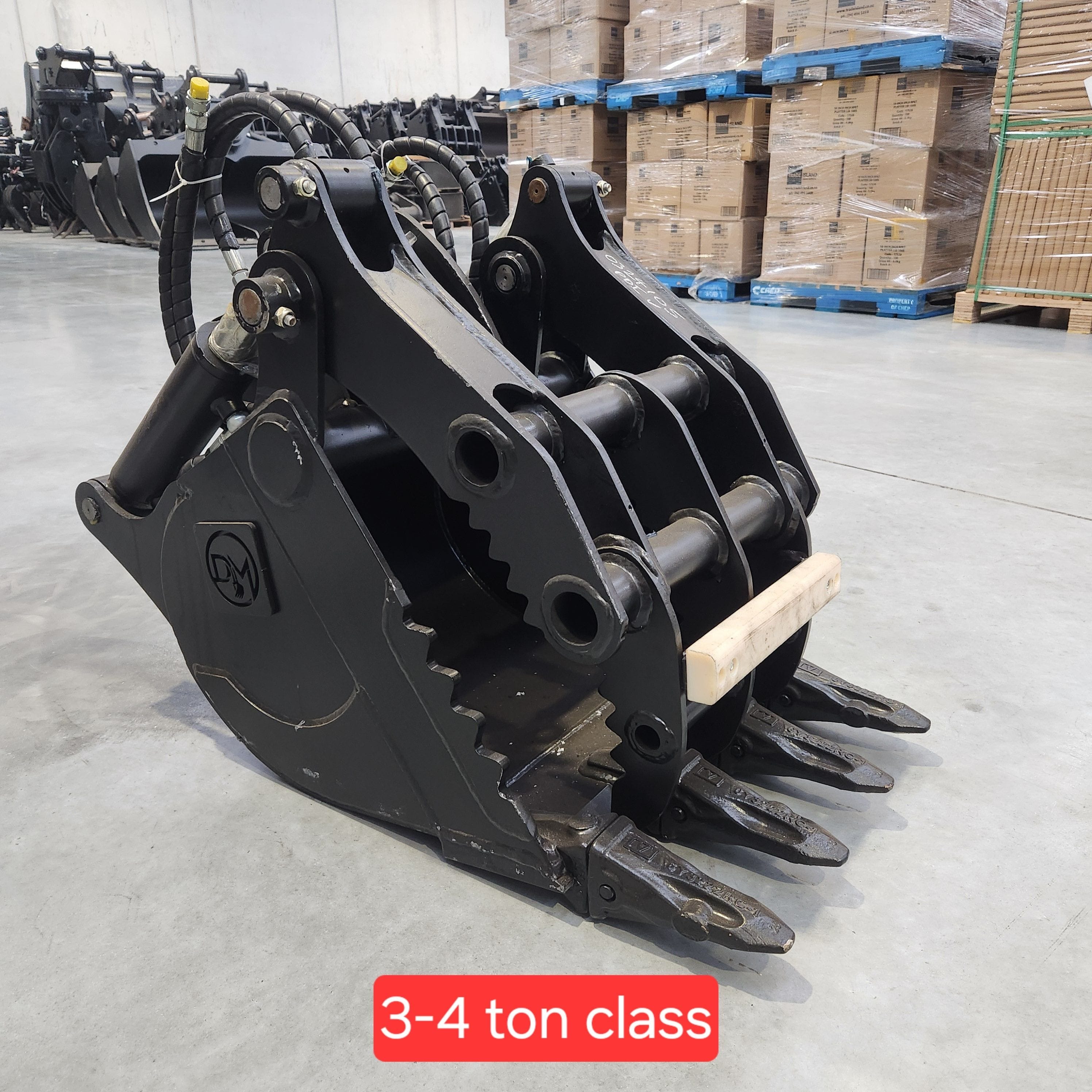

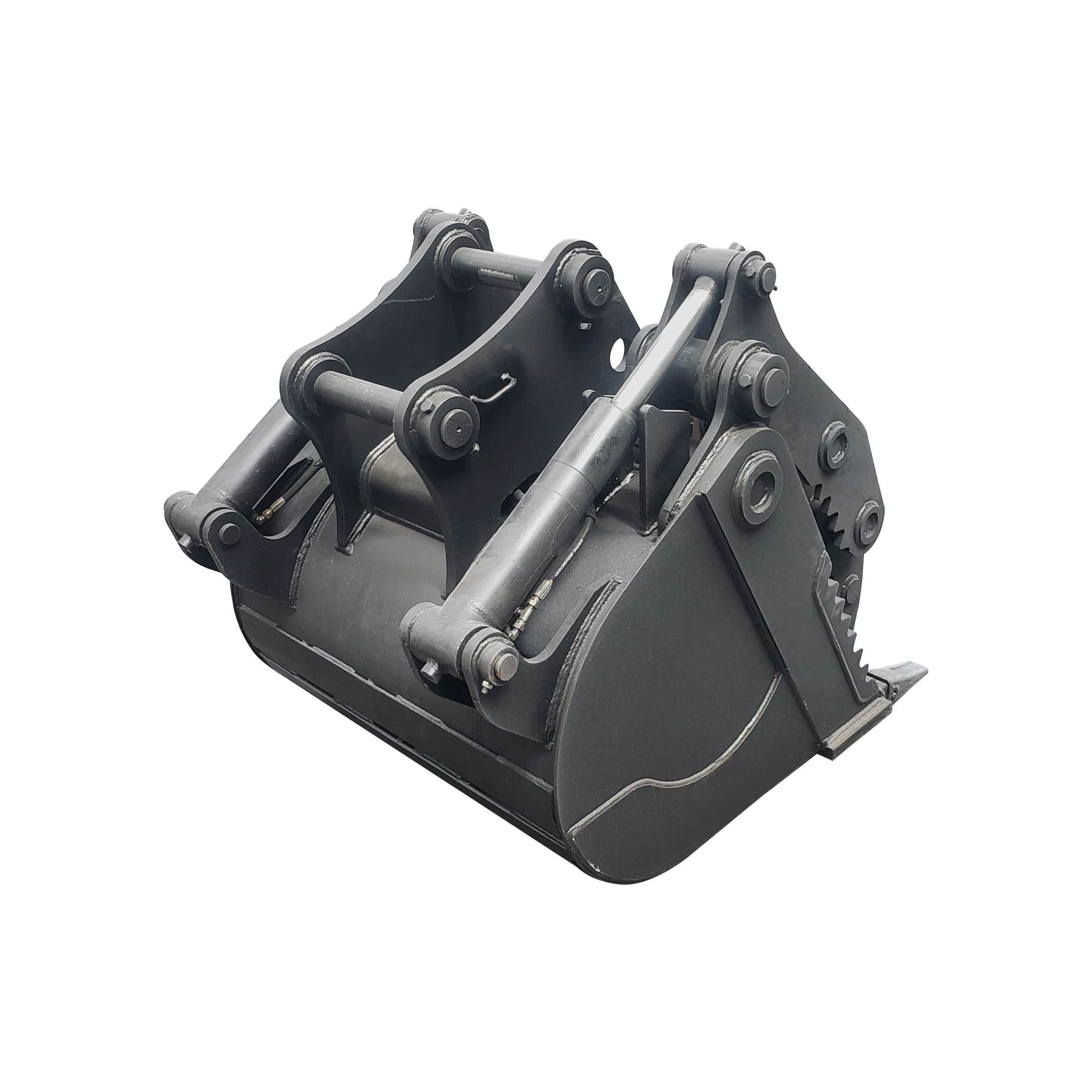

FOR SERIOUS PRODUCTION AND MAXIMUM VERSATILITY HUMP, PUMP & DUMP LARGER LOADS Available for 1.7 ton class excavators and above DigMax have developed the double ram grab bucket, affectionally known as the 'Double Pumper'. These have proven to massively increase versatility and production in all material handling applications, including demolition, waste, forestry, firewood, tree-work, and general earthworks. Key features: The width, shape & capacity of the bucket is same as a traditional digging bucket Bucket pickups mounted on the top Working envelope / geometry the same as a standard digging bucket Easily and productively dig & load with the bucket Full width grab arm provides unmatched material gathering, holding & loading capacity Double rams provide serious clamping force Solid ram stops to protect ram cylinder and ram base pin Grab arm operates from 1 x standard two-way auxiliary circuit Fully compatible compatible with tilting and standard quick-couplers Hardox and Bisaloy used in high wear areas Bisaloy wear strips underside 1.7 - 2 ton class: Width 450mm Capacity 0.044m3 Max grab opening at tips 695mm Weight 106kg 3 - 4 ton class: Width 500mm Capacity 0.08m3 Max grab opening at tips 1020mm Weight 178kg 5 - 6 ton class: Width 600mm Capacity 0.2m3 Max grab opening at tips 1325mm Weight 280kg 7 - 10 ton class: Width 790mm Capacity 0.25m3 Max grab opening at tips 1205mm Weight 400kg 12 - 14 ton class: Width 1000mm Capacity 0.5m3 Max grab opening at tips 1505mm Weight 800kg 20 - 25 ton class: Width 1300mm Capacity 0.91m3 Max grab opening at tips 1790mm ​​​​​​​Weight 1350kg 30 - 40 ton class: Width 1360mm Capacity 1.4m3 Max grab opening at tips 2080mm Weight 1780kg Contact us for further information and custom builds

Double Ram Grab Bucket - Ward Demolition

Ward Demolition ordered the first of the 14 ton class Double Pumpers. After years of working with single ram grab buckets and multi-purpose buckets, when approached with the concept of the double ram grab bucket, they immediatley recognised the benefits of having the working enevelope & geometry of a standard digging bucket, coupled with a full width grab arm. After one day in action, an order was confirmed for another 14 ton class, and 2 x 20 ton class.

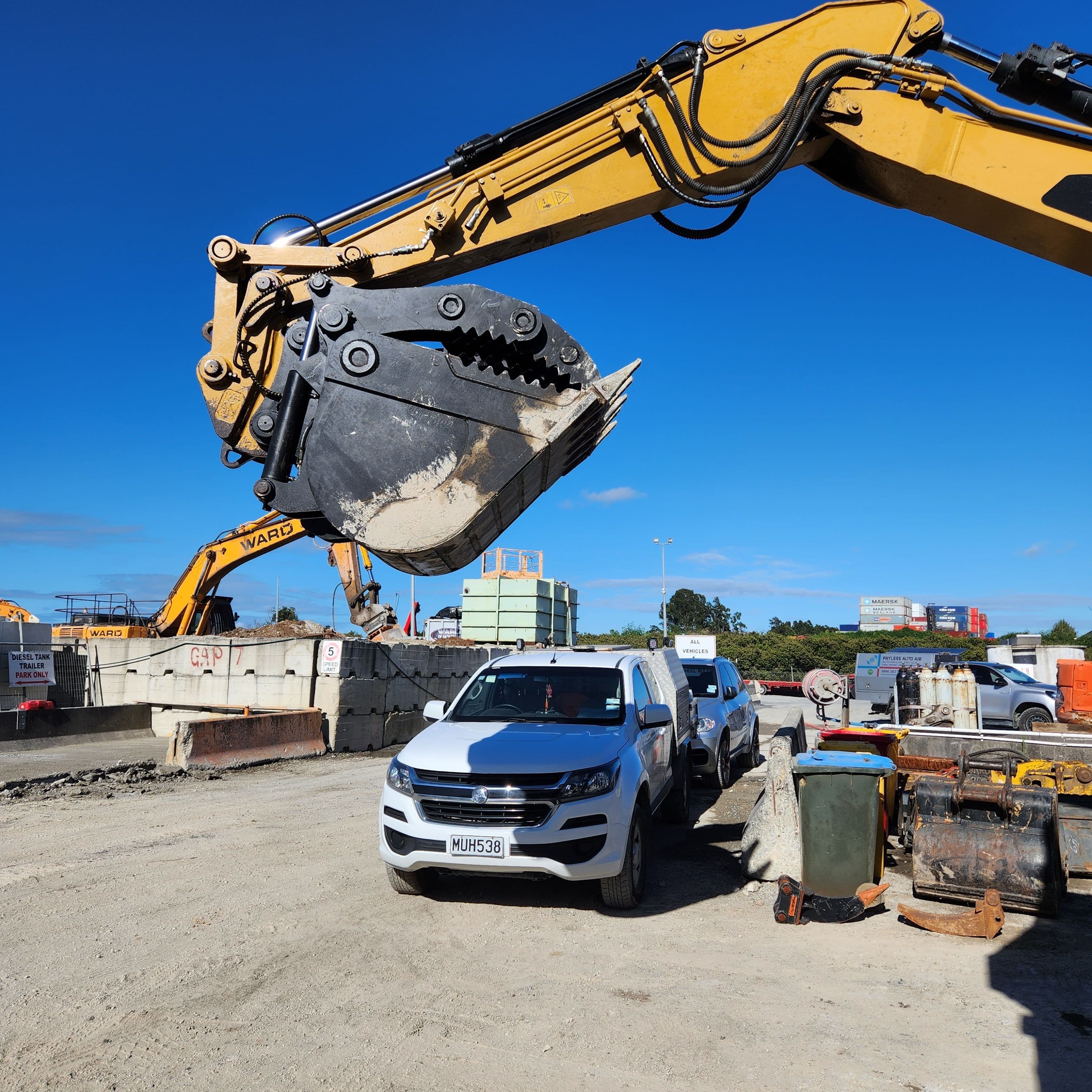

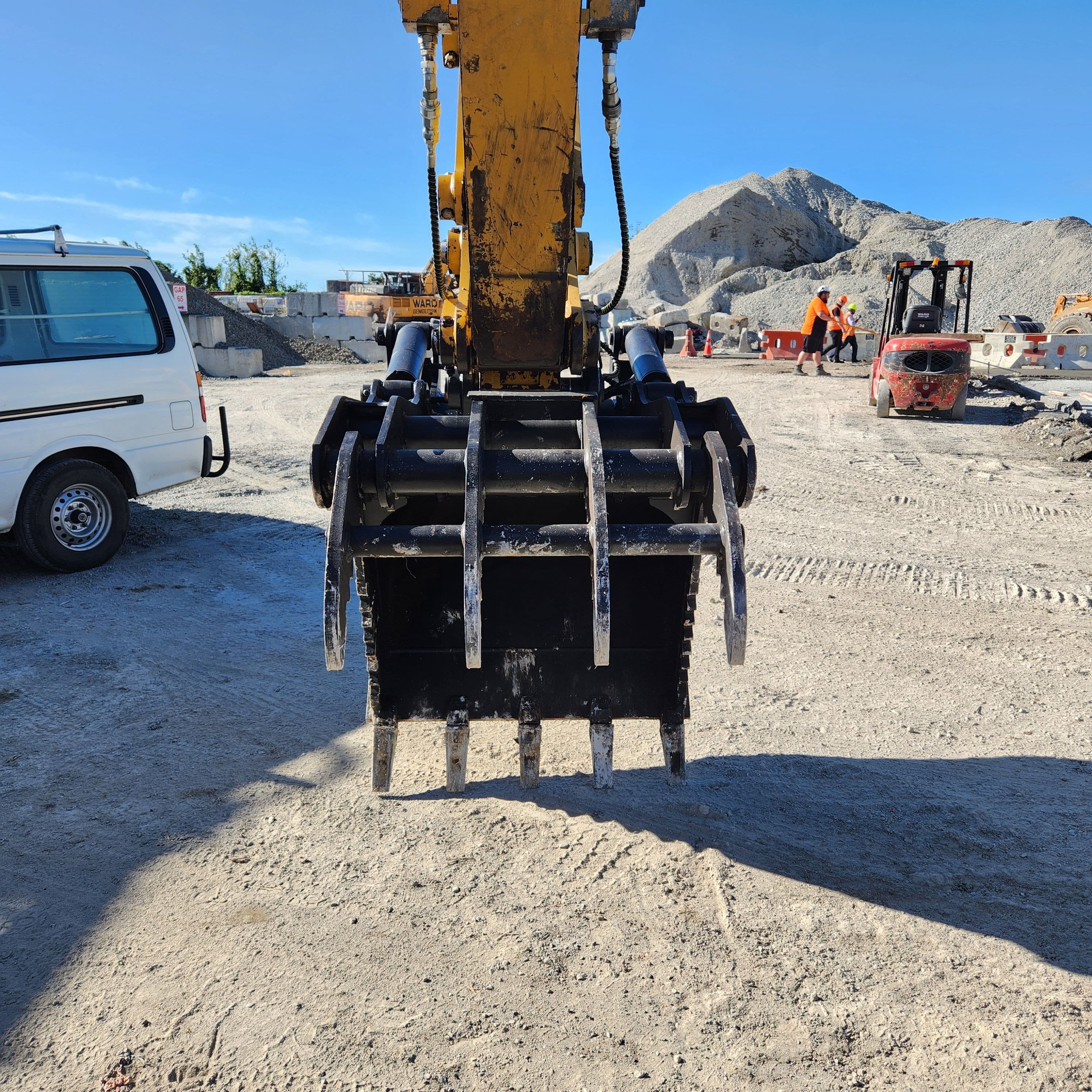

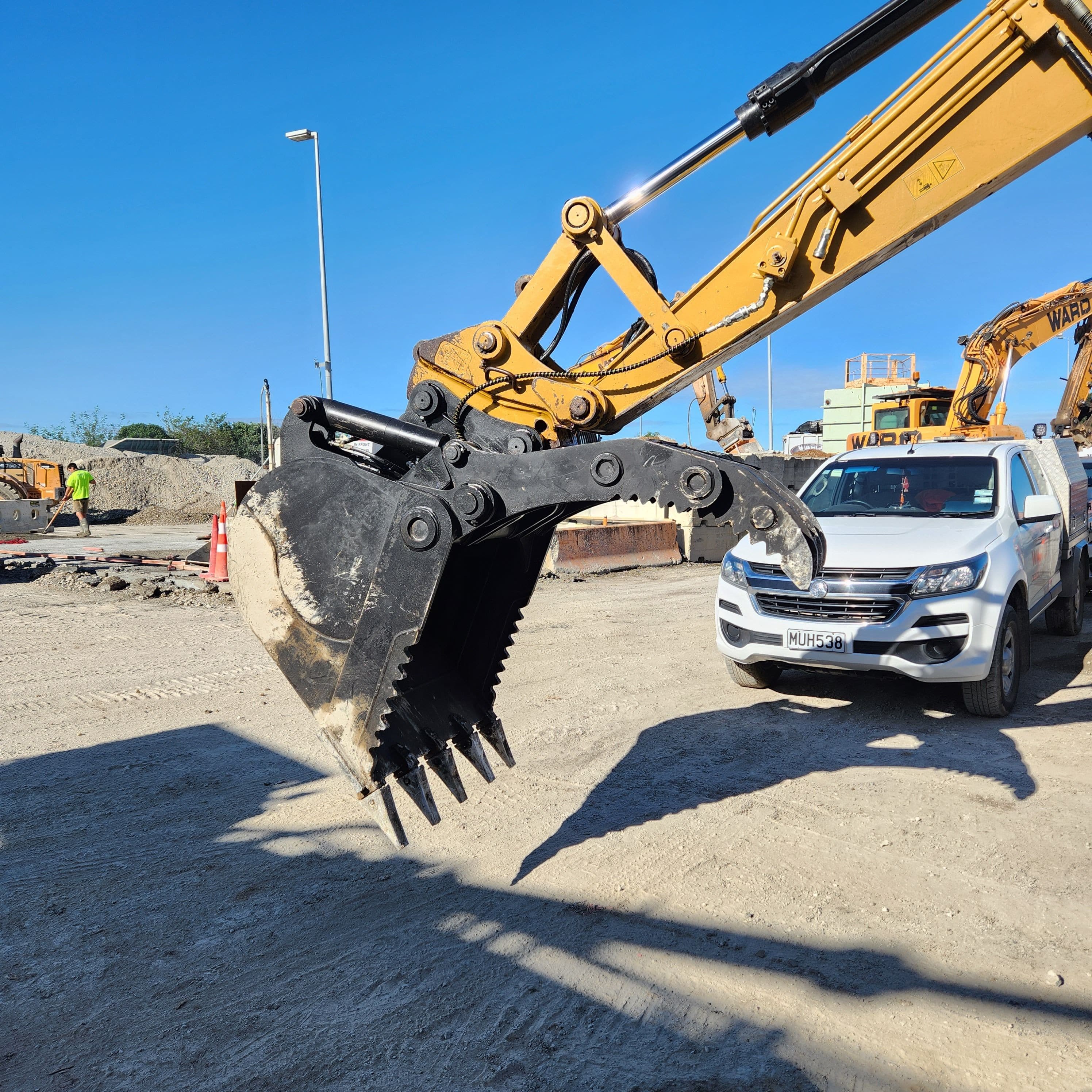

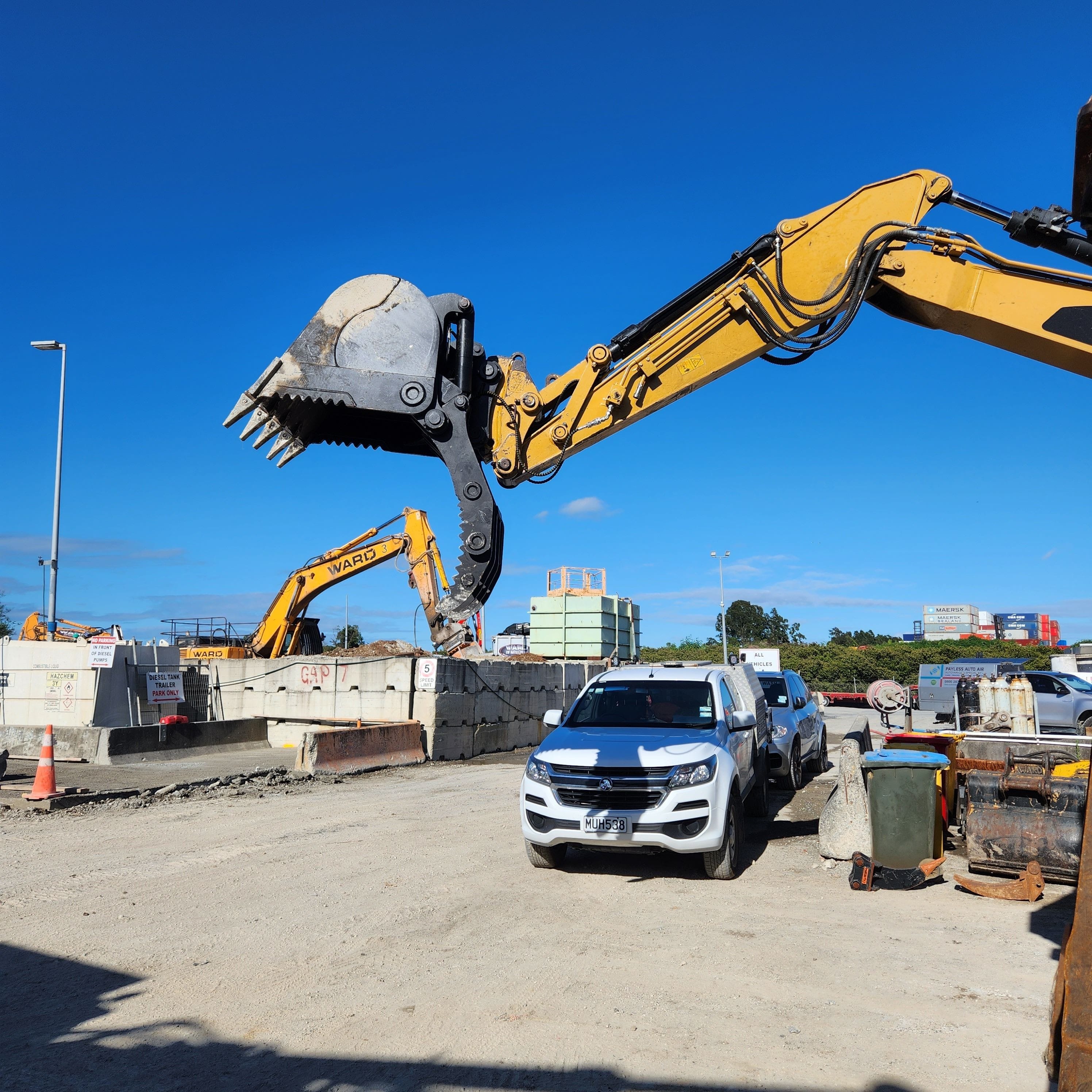

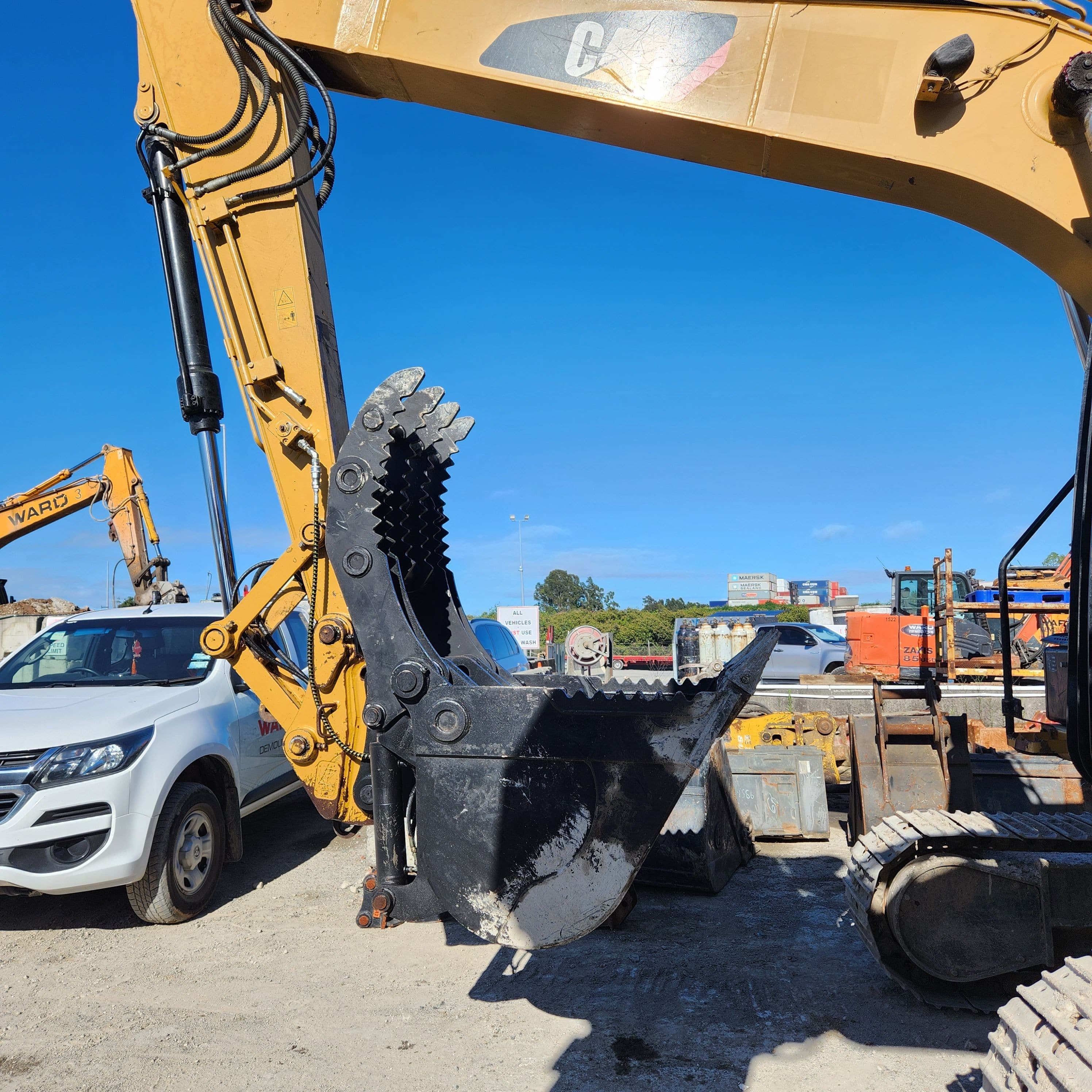

14 TON CLASS - WARD DEMOLITION

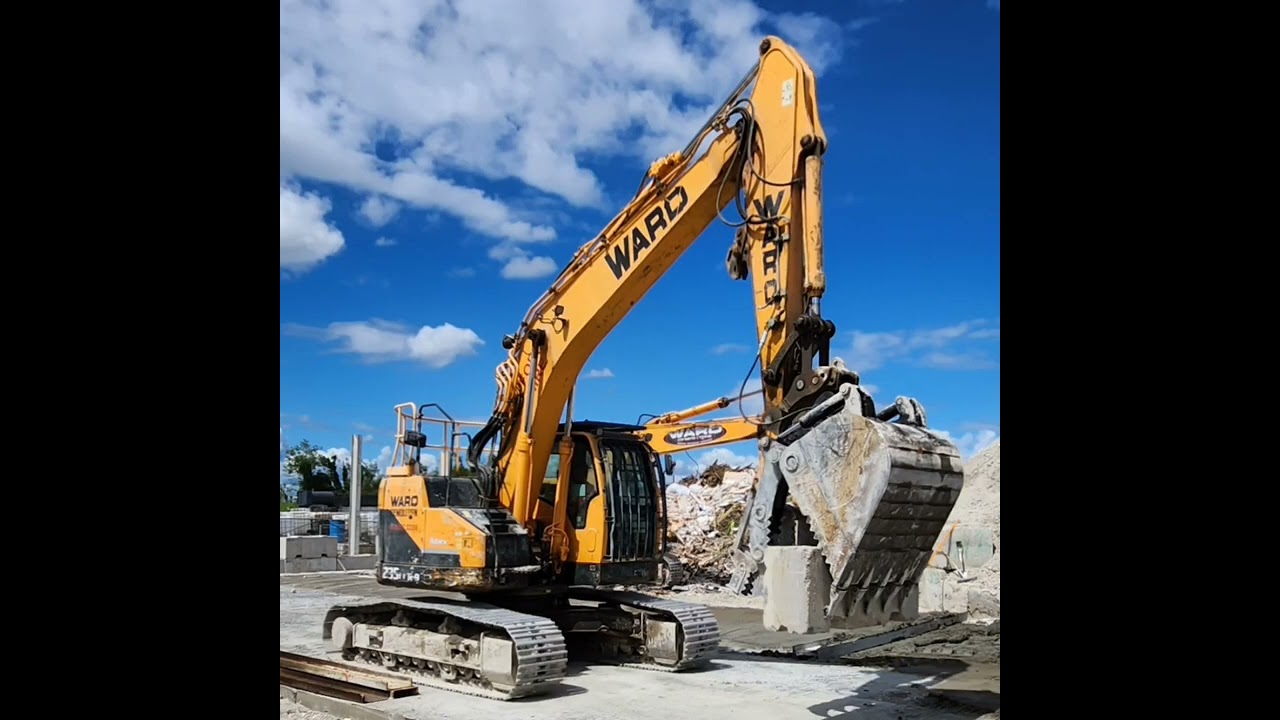

20 TON CLASS IN ACTION - WARD DEMOLITION, AUCKLAND
20 TON CLASS IN ACTION - SMITHERS ENTERPRISES, NEW PLYMOUTH

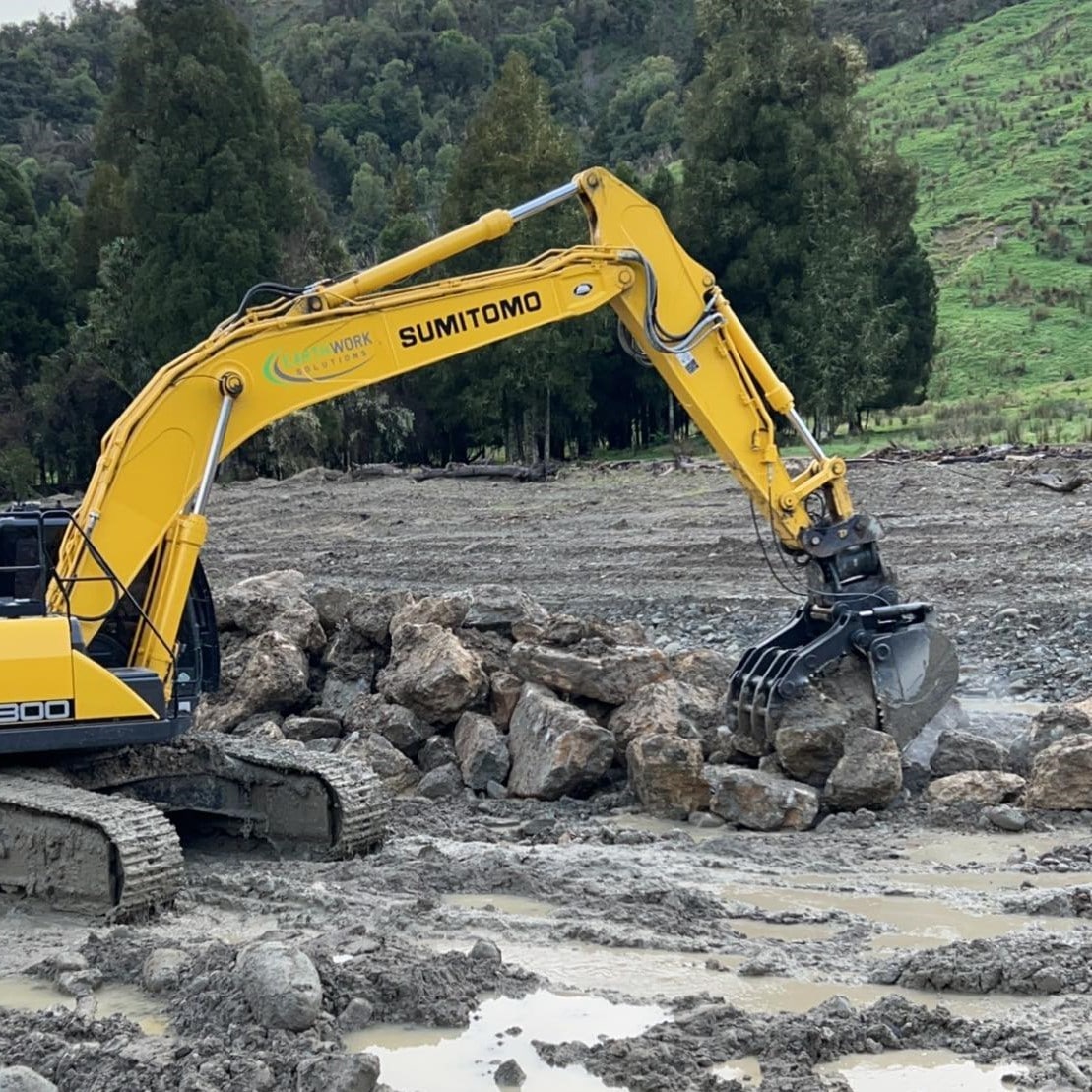

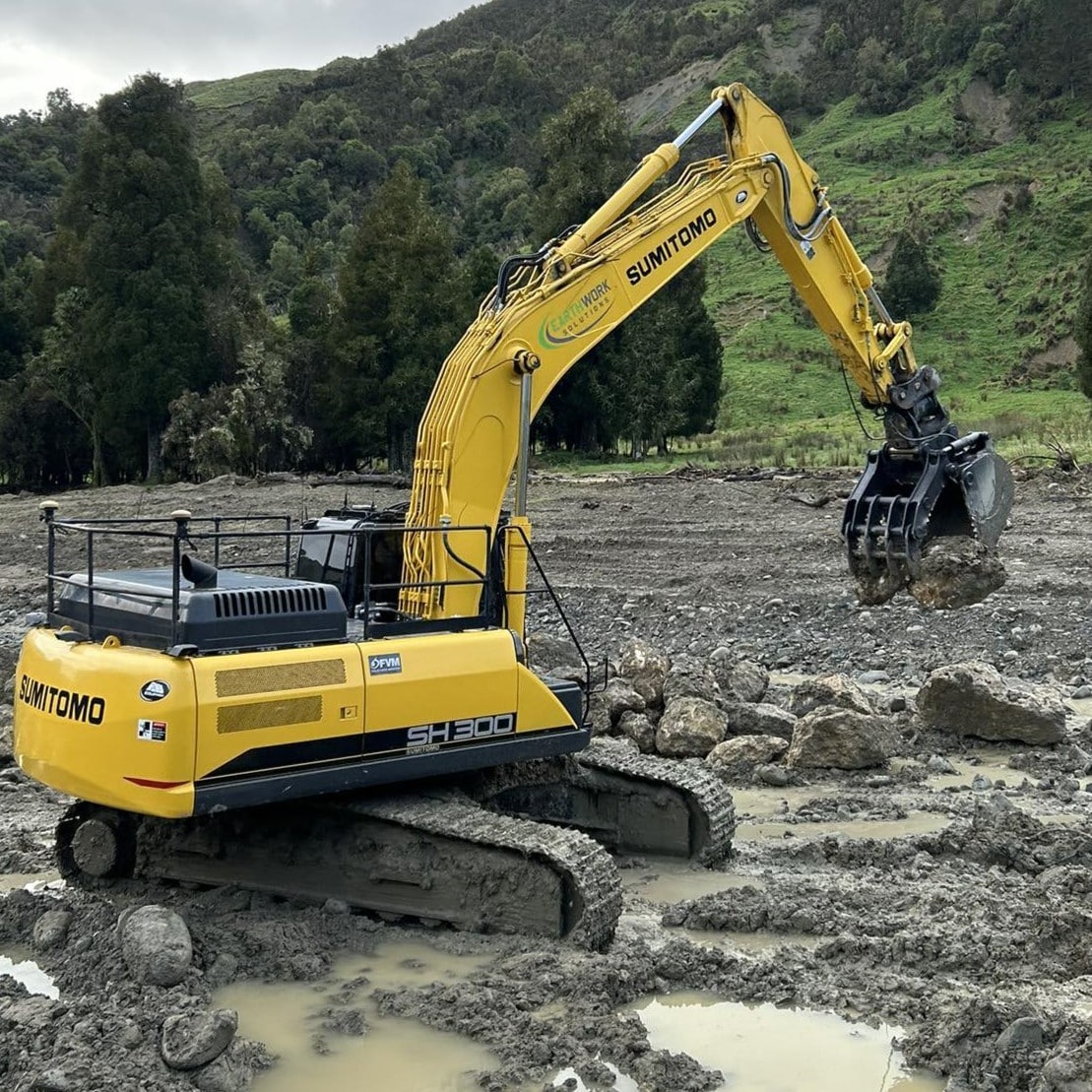

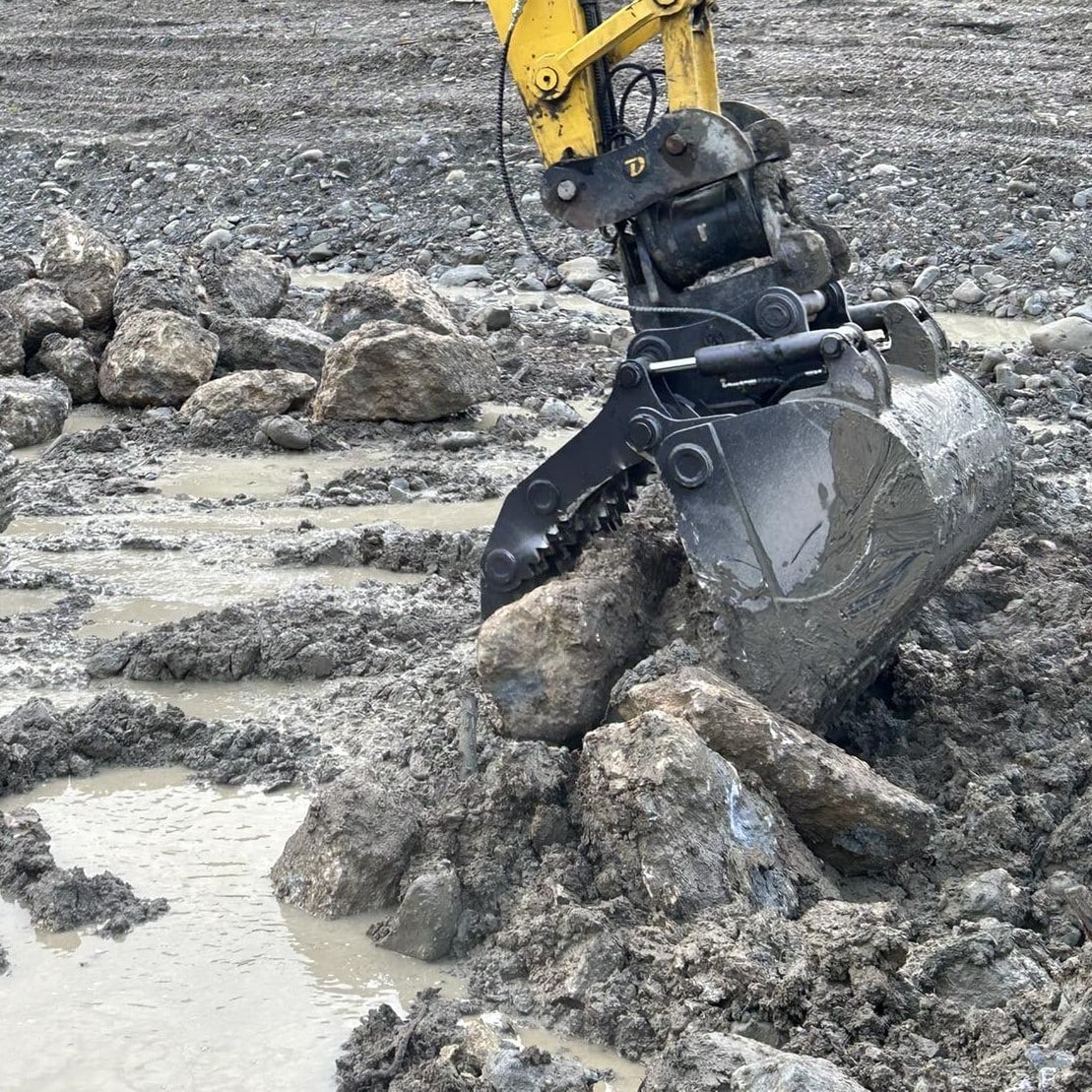

30 TON CLASS IN ACTION - EARTHWORKS SOLUTIONS, GISBORNE
14 TON CLASS IN ACTION - SHANE MAX EARTHWORKS, NAPIER
14 TON CLASS IN ACTION - B PERRY SERVICES, MASTERTON

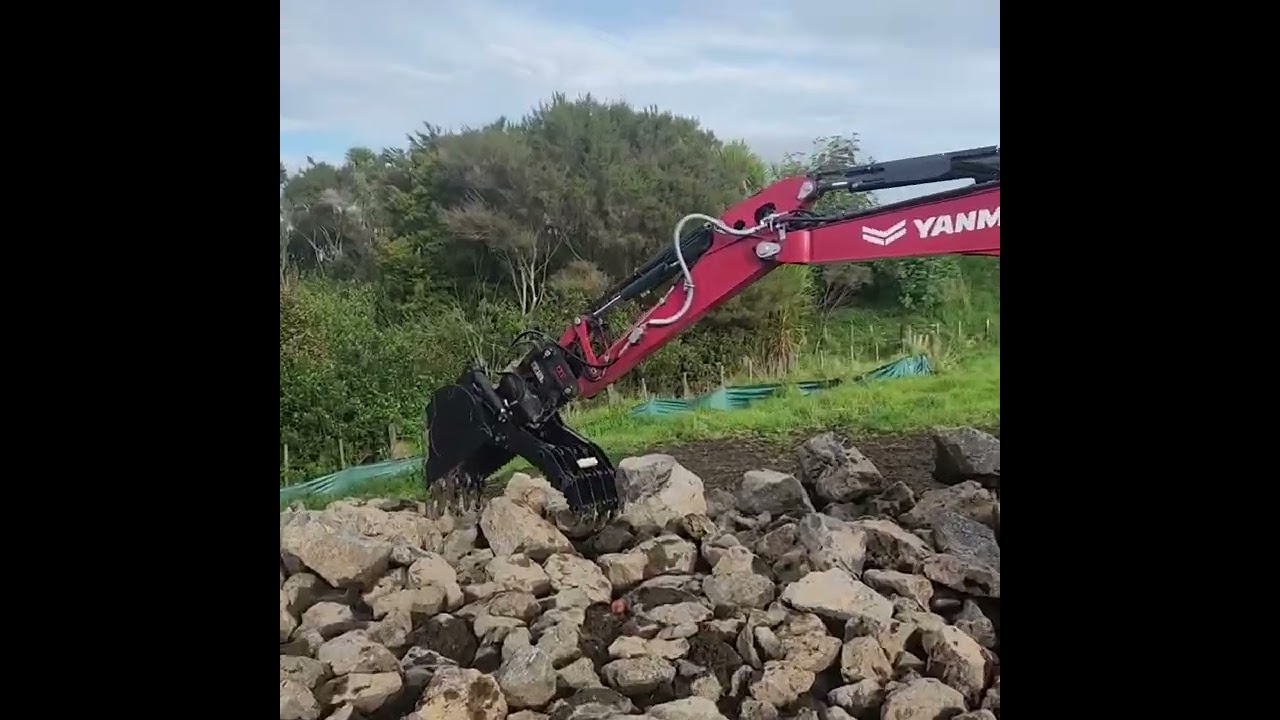

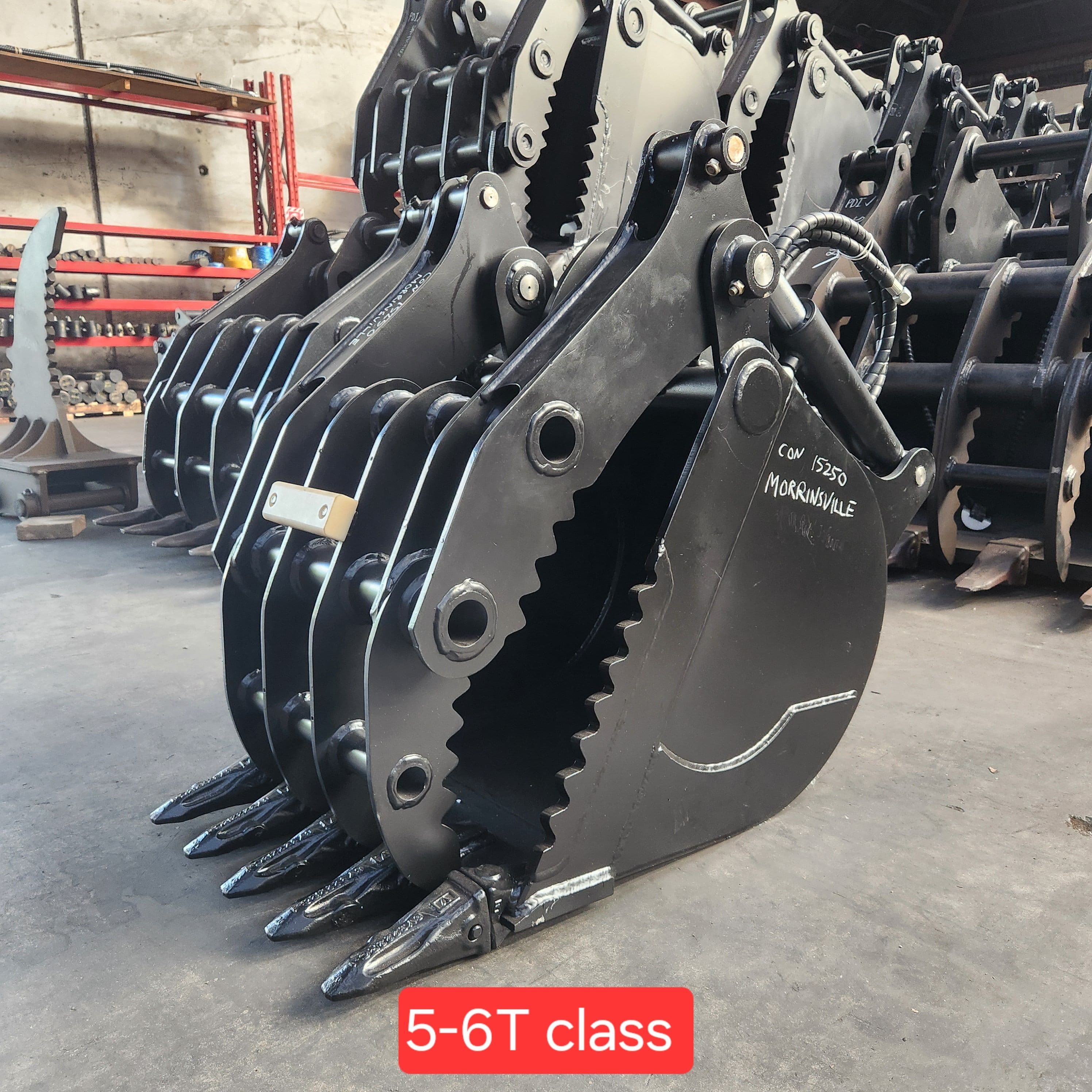

5-6 TON CLASS IN ACTION ON YANMAR ViO55 - HOME TOUCH LIMITED, KARAKA
3-4 TON CLASS IN ACTION HITACHI ZX38U - BEN MAYNE PLUMBING, WARKWORTH

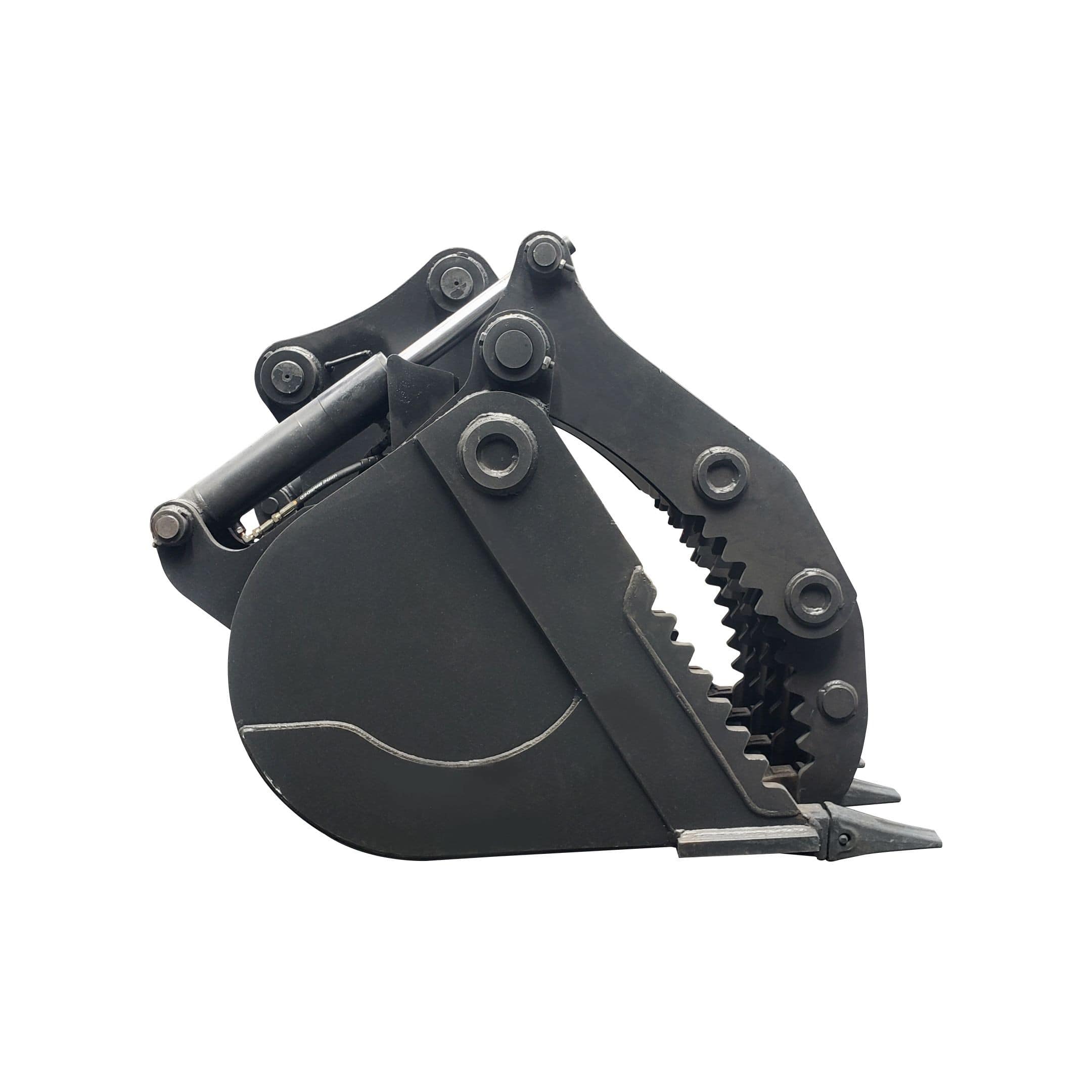

SINGLE RAM GRAB BUCKETS

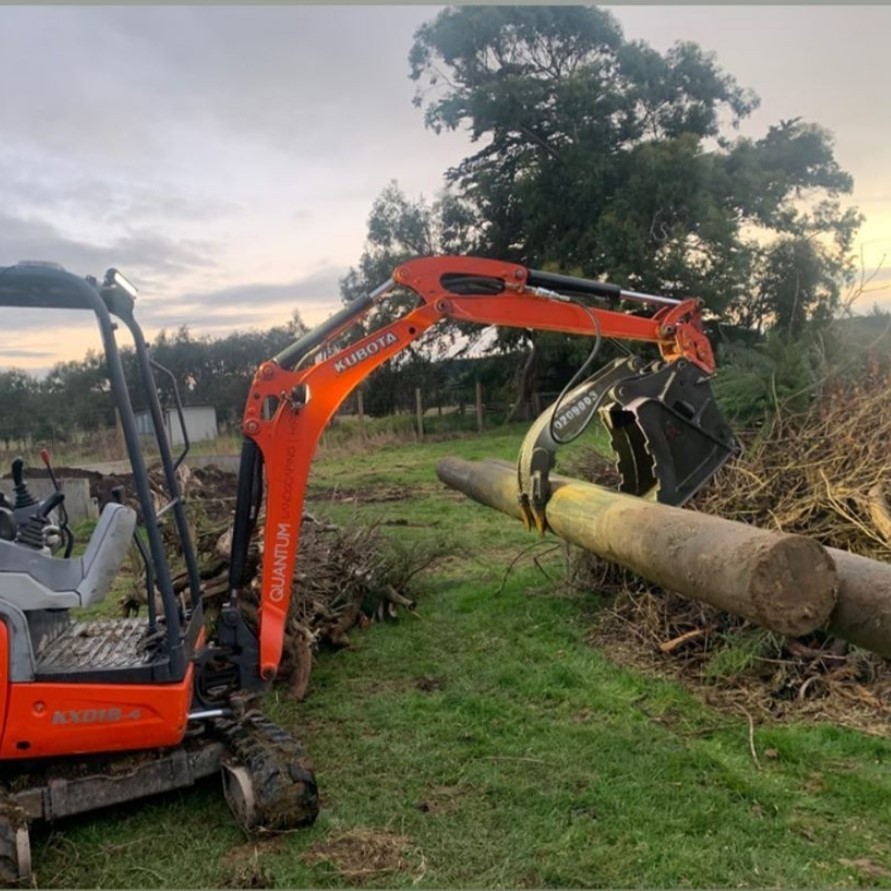

Grab buckets for 1.8 to 3 ton excavators Due to the popularity and proven increased production & versatility of the double ram grab buckets, the single ram grab bucket is only available for the 1.7 ton to 3 ton excavator weight class. Weight 125kg Width 400mm Max grab arm opening tip to tip 850mm Replaceable Esco 18S teeth NOTE We have a experienced a couple of customers opinion that these are on the heavy side for a1.7 ton excavator.We have a majority of customers that have no issue with the weight.Consider the weight before ordering.Below pics are Kubota KX018. Owner has no issue with the weight.

DigMax Single Ram 2 Ton Grab Bucket in action LC Earthworks, Napier
