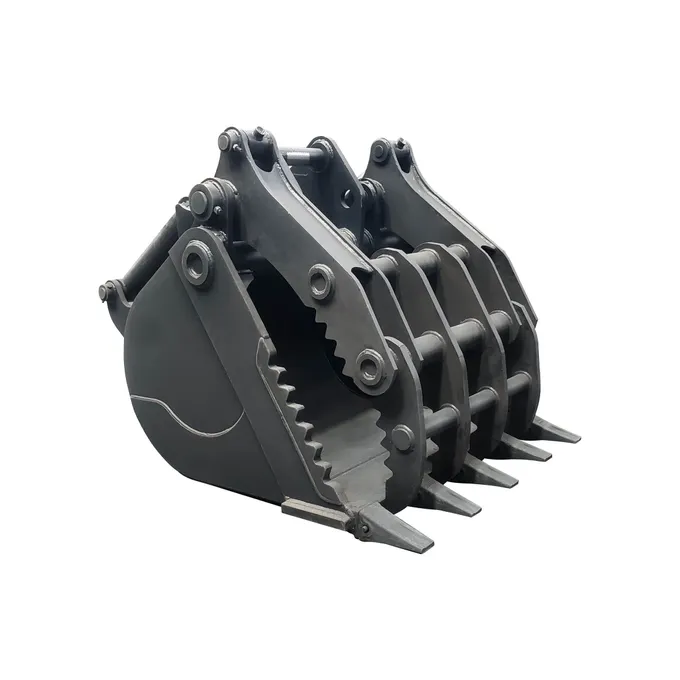

Double Ram Grab Buckets
'DOUBLE PUMPER'

FOR SERIOUS PRODUCTION AND MAXIMUM VERSATILITY
HUMP, PUMP & DUMP LARGER LOADS
Available for 1.7 ton class excavators and above

DigMax have developed the double ram grab bucket, affectionally known as the 'Double Pumper', now available off the shelf for excavators from 1.7 ton to 40 ton, and larger sizes to order.

These weapons of mass construction are rapidly replacing thumbs, single ram grab buckets, 4 in 1 buckets and grabs, due to their unrivalled versatility and increased productivity in all material handling applications including demolition, waste, forestry, firewood, tree-work, rock handling and general earthworks.

Key features:
Pickups are mounted on the top of the bucket, same as a standard type digging bucket
Width, shape & capacity of the bucket is same as a standard type digging bucket
Resulting working envelope / geometry is the same as a standard digging bucket
Easily and productively dig & load with the bucket as the grab arm opens right up & out of the way
Full width grab arm provides unmatched material gathering, & maximises bucket loading & holding capacity
Double rams provide massive clamping force, ensuring the larger loads are secured with maximum safety
Solid ram stops on the grab arm to prevent the ram cylinder bottoming out and the ram base pin from being punched out
Grab arm operates from one standard two-way auxiliary circuit
Fully compatible with tilting and standard quick couplers
Hardox and Bisaloy used in high wear areas
Bisaloy wear strips underside on 5 ton class and above

Specifications at a glance:

1.7 - 2 ton class:
Width 450mm
Capacity 0.044m3
Max grab opening at tips 695mm
Weight 106kg

3 - 4 ton class:
Width 500mm
Capacity 0.08m3
Max grab opening at tips 1020mm
Weight 178kg

5 - 6 ton class:
Width 600mm
Capacity 0.2m3
Max grab opening at tips 1325mm
Weight 280kg

7 - 10 ton class:
Width 790mm
Capacity 0.25m3
Max grab opening at tips 1205mm
Weight 400kg

12 - 14 ton class:
Width 1000mm
Capacity 0.5m3
Max grab opening at tips 1505mm
Weight 800kg

20 - 25 ton class:
Width 1300mm
Capacity 0.91m3
Max grab opening at tips 1790mm
​​​​​​​Weight 1350kg

30 - 40 ton class:
Width 1360mm
Capacity 1.4m3
Max grab opening at tips 2080mm
Weight 1780kg

Contact us for further information and custom builds

Double Ram Grab Bucket - Ward Demolition

Ward Demolition ordered the first of the 14 ton class Double Pumpers.
After years of working with single ram grab buckets and multi-purpose buckets, when approached with the concept of the double ram grab bucket, they immediatley recognised the benefits of having the working enevelope & geometry of a standard digging bucket, coupled with a full width grab arm.
After one day in action, an order was confirmed for another 14 ton class, and 2 x 20 ton class.

14 TON CLASS - WARD DEMOLITION

20 TON CLASS IN ACTION - WARD DEMOLITION, AUCKLAND

20 TON CLASS IN ACTION - SMITHERS ENTERPRISES, NEW PLYMOUTH

30 TON CLASS IN ACTION - EARTHWORKS SOLUTIONS, GISBORNE

14 TON CLASS IN ACTION - SHANE MAX EARTHWORKS, NAPIER

14 TON CLASS IN ACTION - B PERRY SERVICES, MASTERTON

5-6 TON CLASS IN ACTION ON YANMAR ViO55 - HOME TOUCH LIMITED, KARAKA

3-4 TON CLASS IN ACTION HITACHI ZX38U - BEN MAYNE PLUMBING, WARKWORTH
