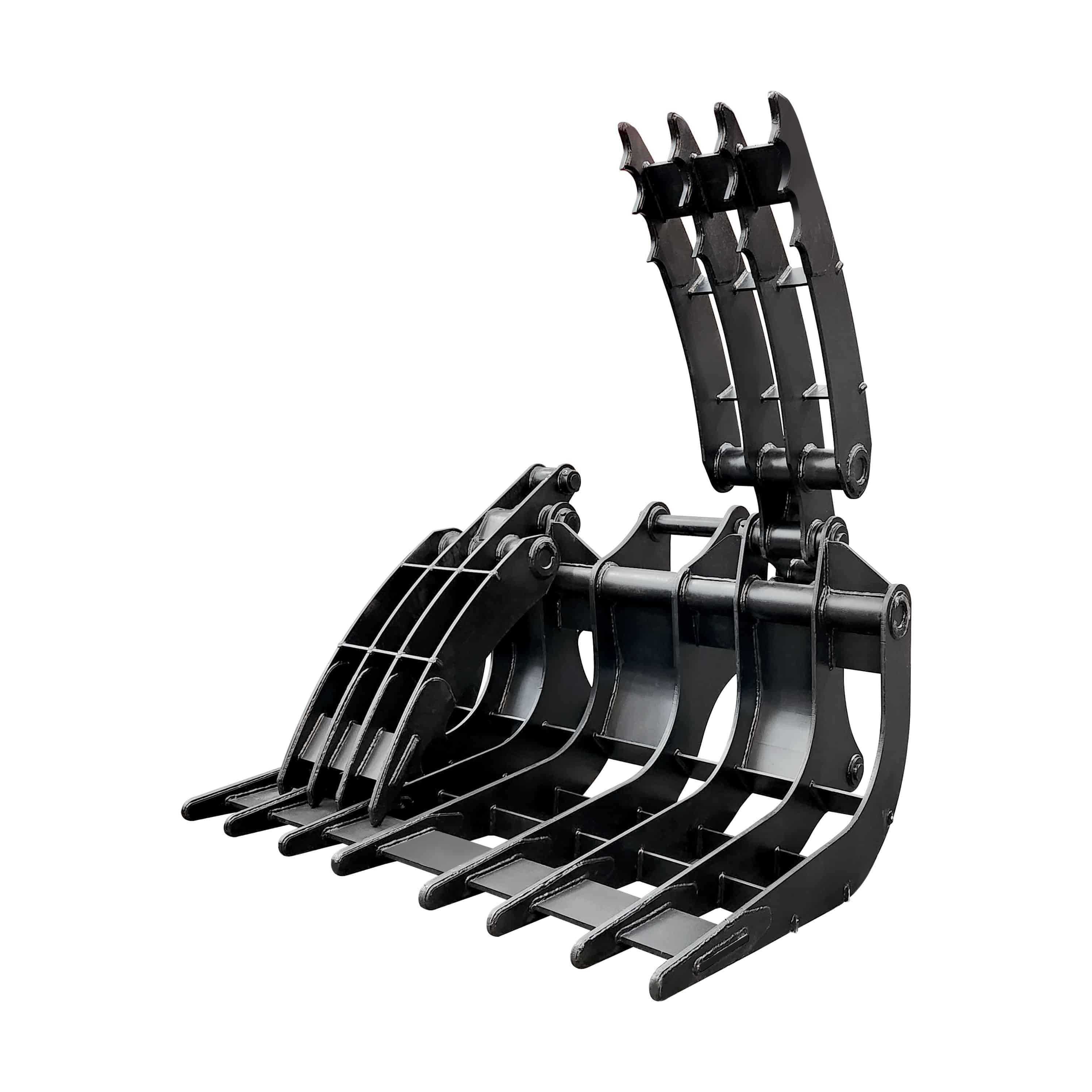

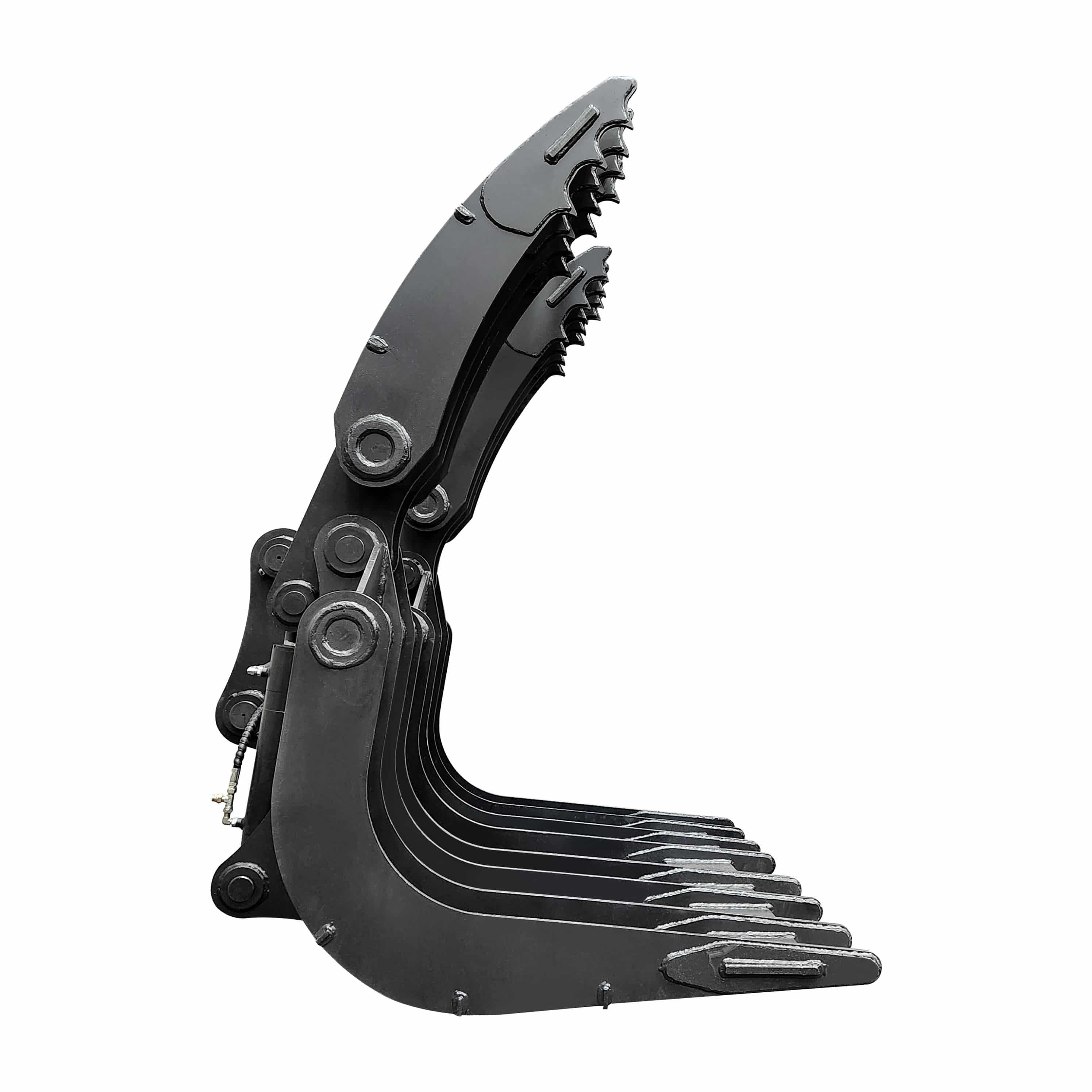

DOUBLE ARM GRAB RAKES 'DOUBLE HUMPER'
DigMax Equipment responded to contractors requesting an affordable Grab Rake.
Grab tines are solid Bisaloy (BIS400), providing high wear life and ability to flex with loading.
Extra Bisaloy wear plates on the tips for increased durability.
Solid plate in front of the ram for protection.

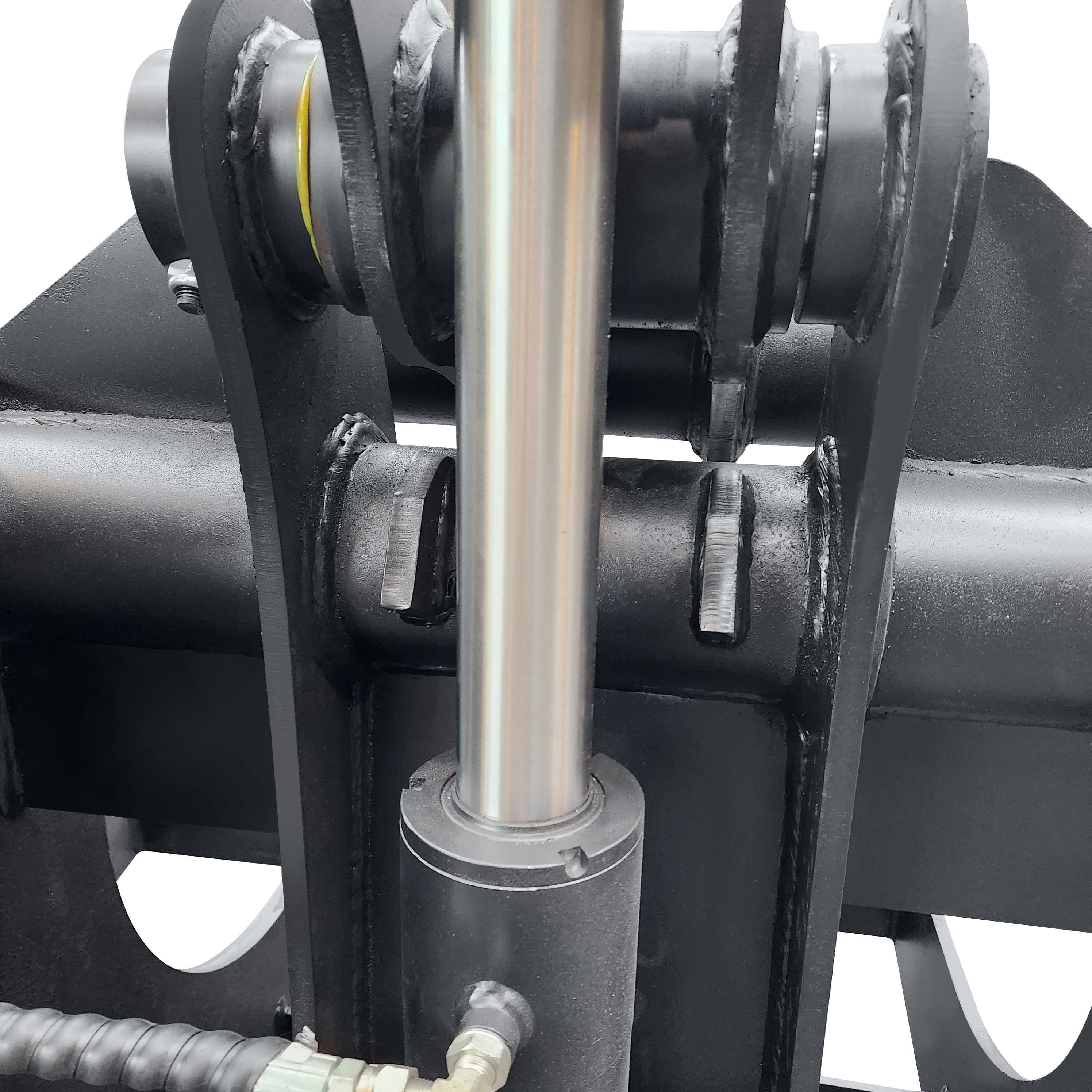

Solid ram stops to prevent the ram spear dead-heading, and prevent the ram base pin from being over-loaded when pushing materail away with the grab arm tips.
Each grab arm works off the same hydraulic circuit, but will independently pressurise on uneven loads.
A single two-way auxiliary hydraulic circuit is all that is required.
The grab arms are positioned so they will open up each side of the dipper arm, and the opening distance tip to tip is large enough to enable the raking of material with the bottom rake frame. With the grab arms opened up, material can be pulled towards the operator with the bottom rake, and pushed away with the grab arms.
These are now well established in the market, and have proven to massively increase versatility and production in all material handling applications, including demolition, waste, forestry, firewood, tree-work, and general earthworks.
These are fully compatible compatible with tilting and standard quick-couplers.
We completed a custom build 25 ton class with 360 continuous rotation, for feeding much into a hogger (see below vidoe).
Come with connection hoses. Pickups can be modified to suit if required.
3-4T are 1200mm wide, 320kg, max grab opening 958kg
Pickups: Pin dia 35 or 40mm, Internal width 145mm, pin centres 185mm
5-6T are 1600mm wide, 450kg, max grab opening 1343mm
Bucket pickups: 45mm dia pins, 172mm internal width, pin centres 245mm
8-10T are 1700mm wide, 520kg, max grab opening 1343mm
Bucket pickups: 50 or 55mm dia pins, 201mm internal width, pin centres 305mm
12-14T are 1850mm wide, weight 940kg, max grab opening 1711mmBucket pickups: 65mm dia pins, 277 internal width, pin centres 390mm
20-22T are 2050mm wide, weight 1400kg, max grab opening 2330mmBucket pickups: 80mm dia pins, 333 internal width, pin centres 460mm
30-35T are 2200mm wide, weight 2030kg, max grab opening 2330mm
Bucket pickups:
Option 1: 90mm dia pins, 422 internal width, pin centres 512mm
Option 2: 100mm or 90mm dia pins, 435 internal width, pin centres 543mm
And we can custom build for other size machines.

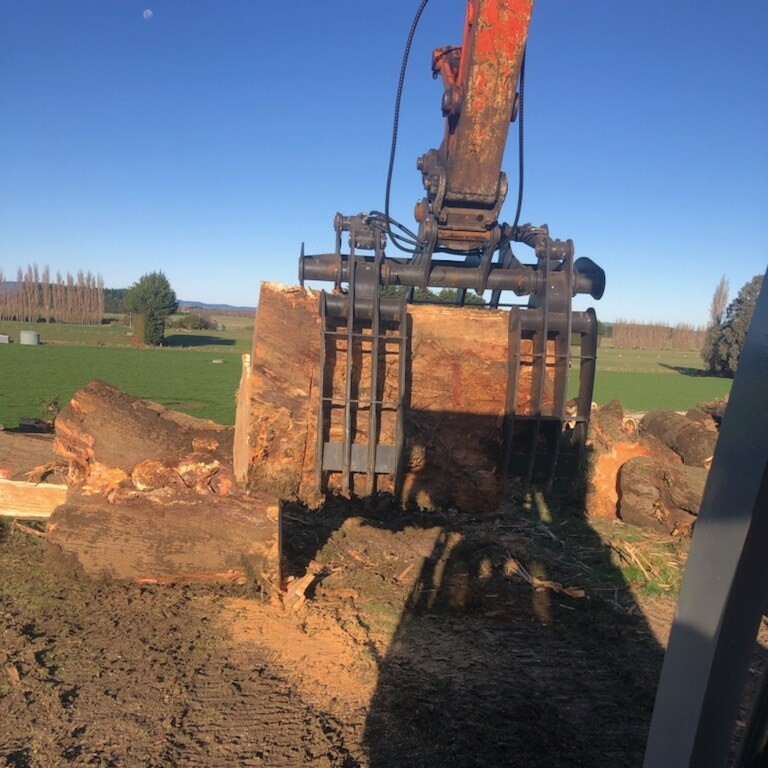

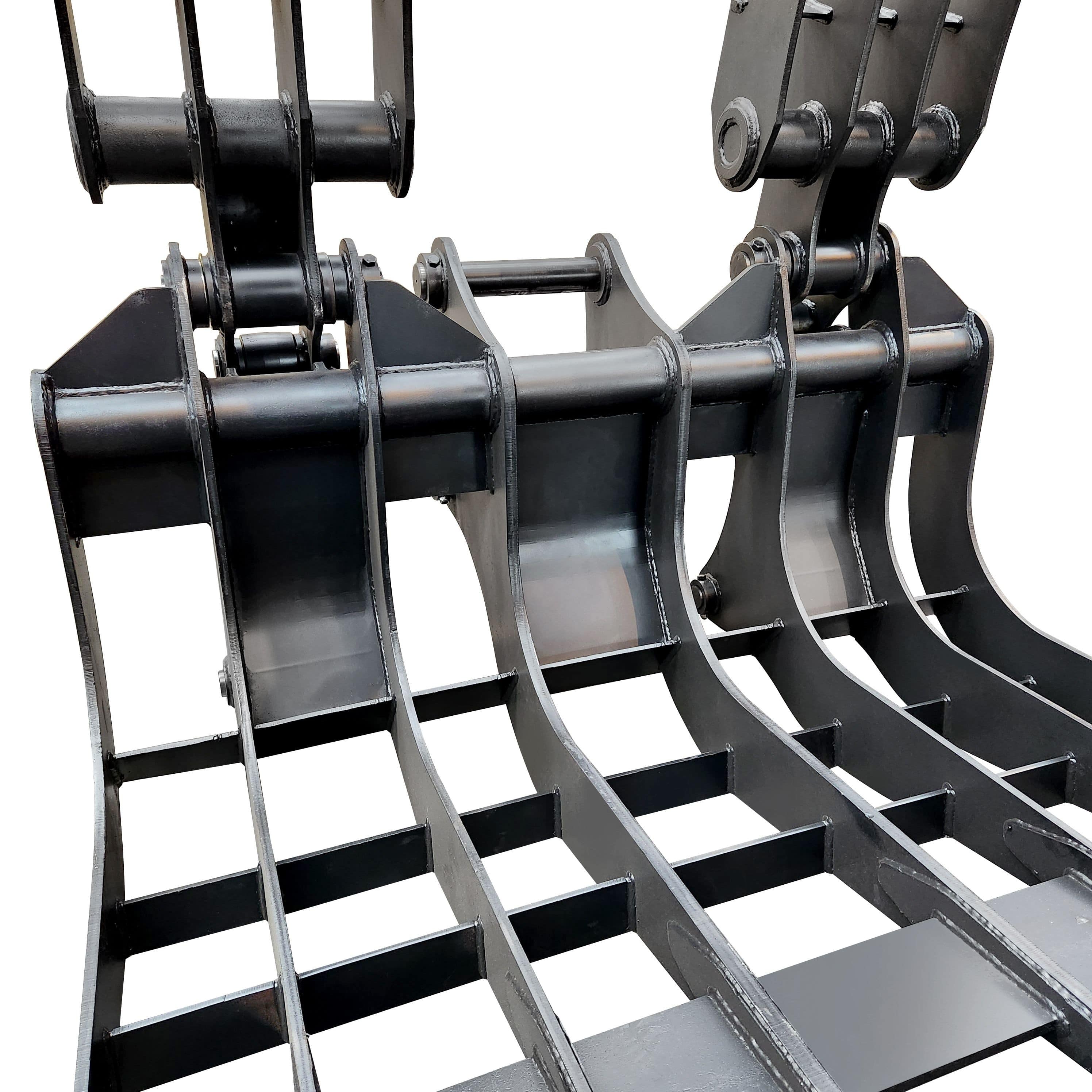

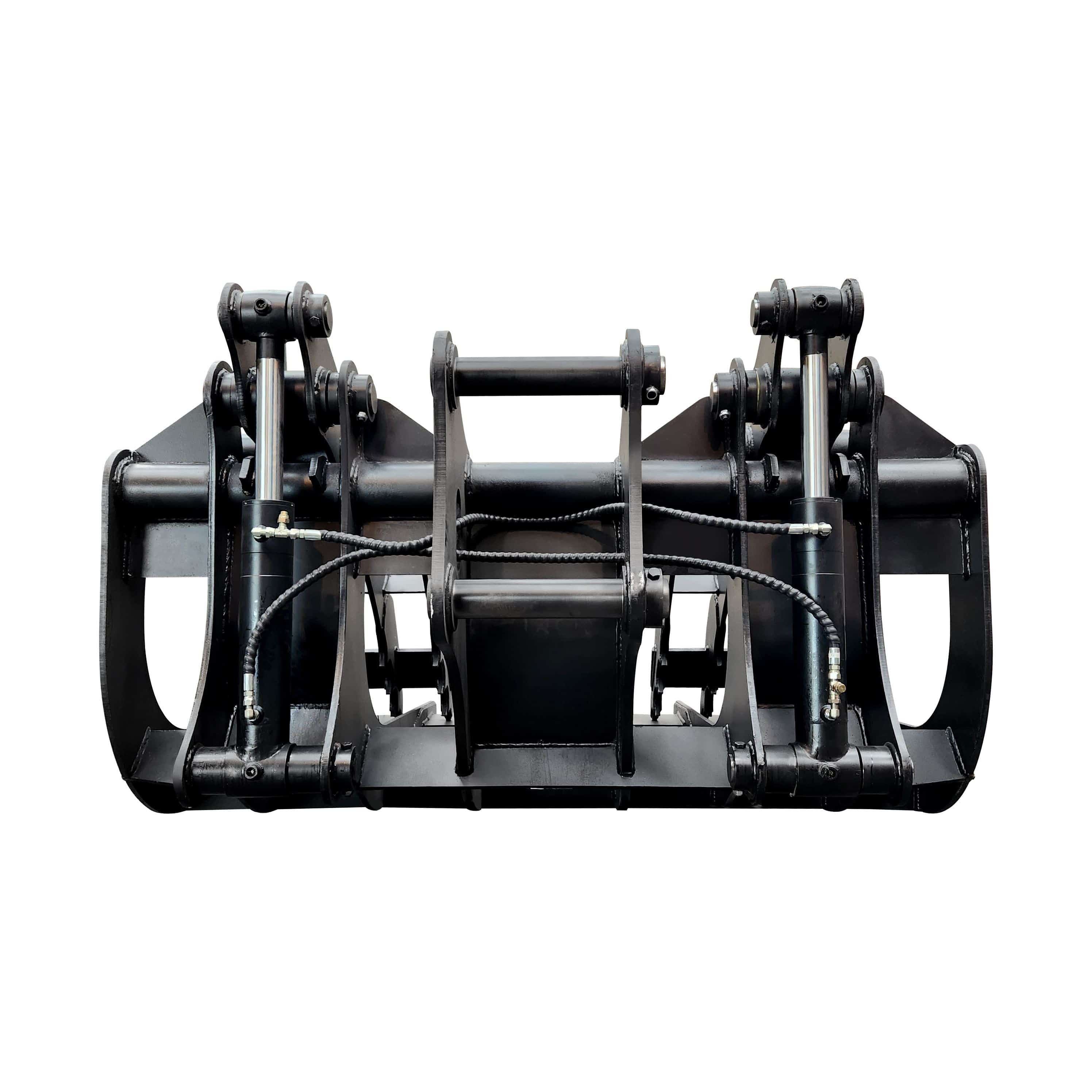

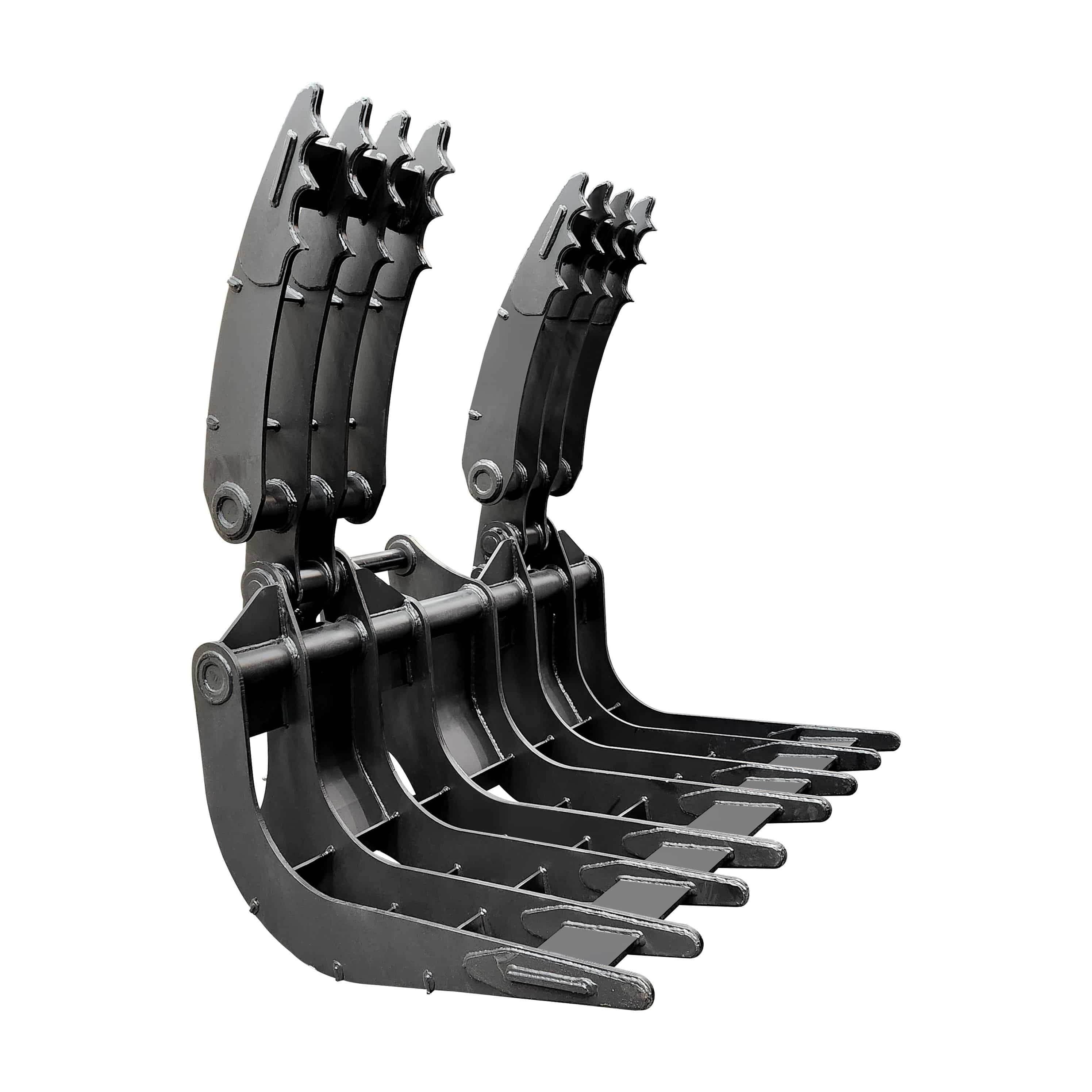

GRAB RAKE PICTURES
.jpg)
DigMax 14T Class Double Humper Action
Jacob Cowie from J Cowie Contracting going Harder Faster Deeper in the heart of Alexandra

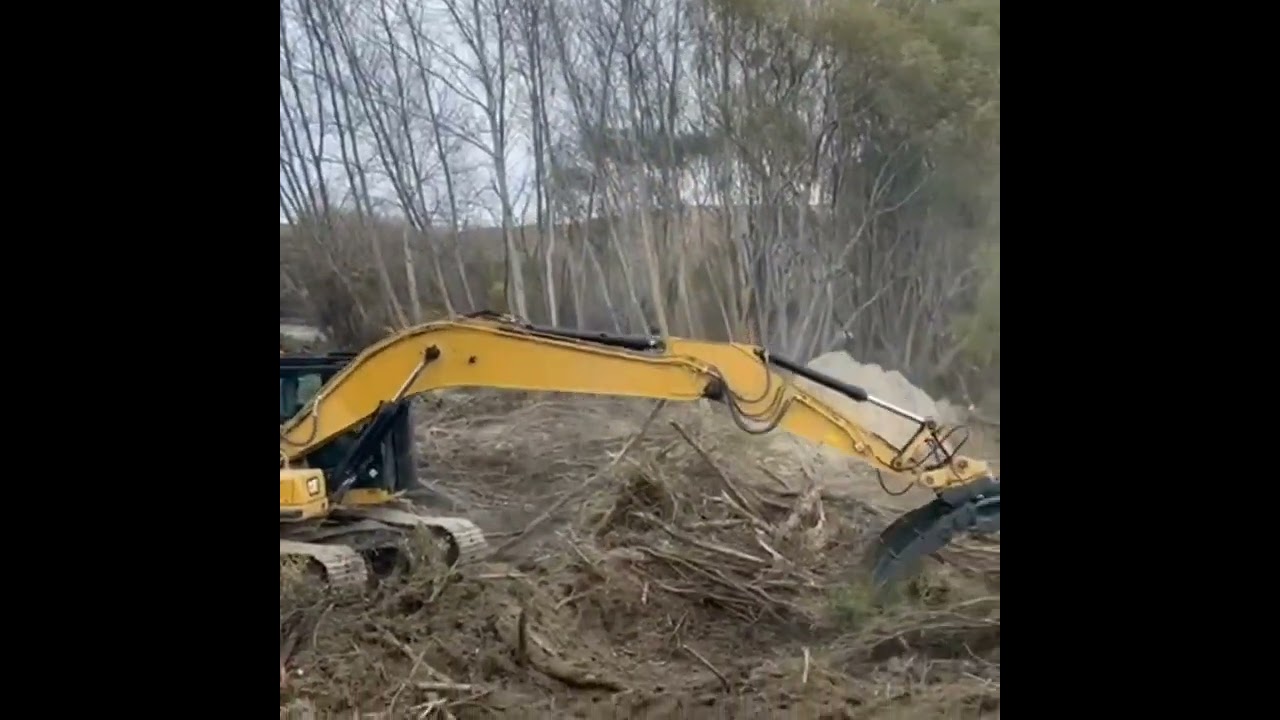

DigMax 20T Class Grab Rake in Action
Truman Earthworks Limited making short work of cyclone cleanup in Napier, Hawkes Bay
DigMax 30T Class Grab Rake in Action
Torea Loggers going harder faster deeper into cyclone cleanup work in the Mata Catchment, Ruatoria, East Cape

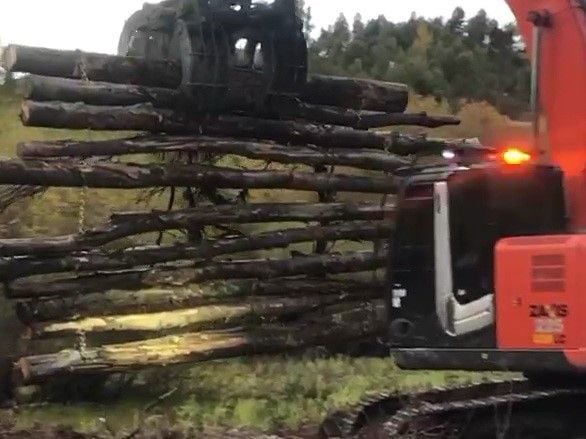

United Earthworks in Queenstown putting their 20T Grab Rake to work. Feedback has been massively increased production
Please note this video is of our previous design, grab max opening 1580mm, our new design opens to 2330mm

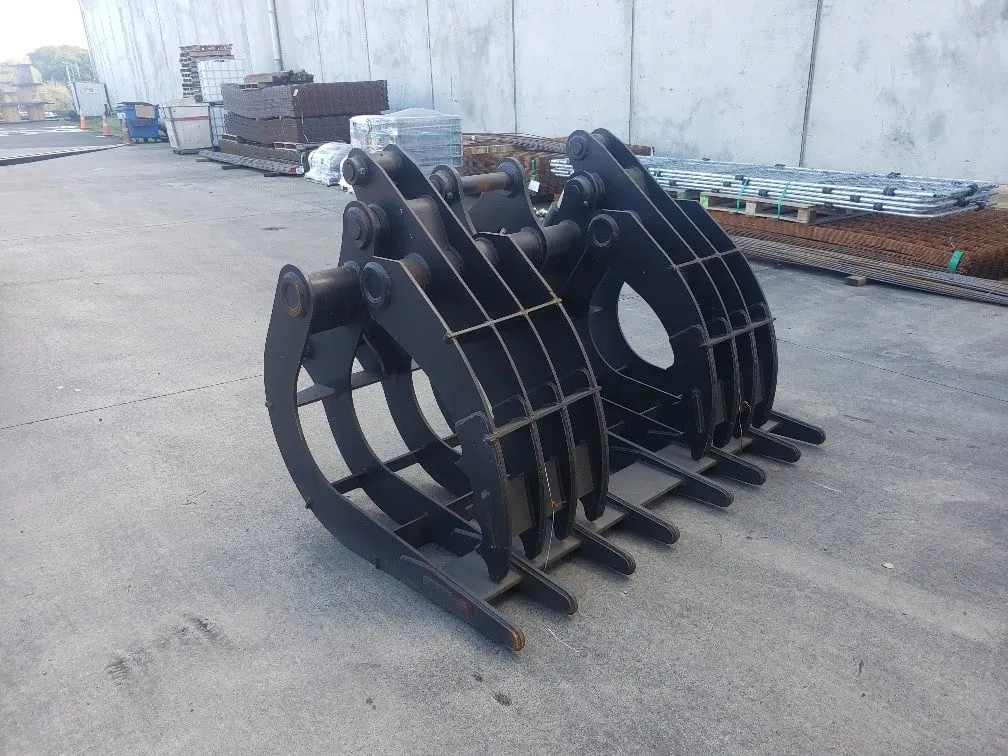

.jpg)

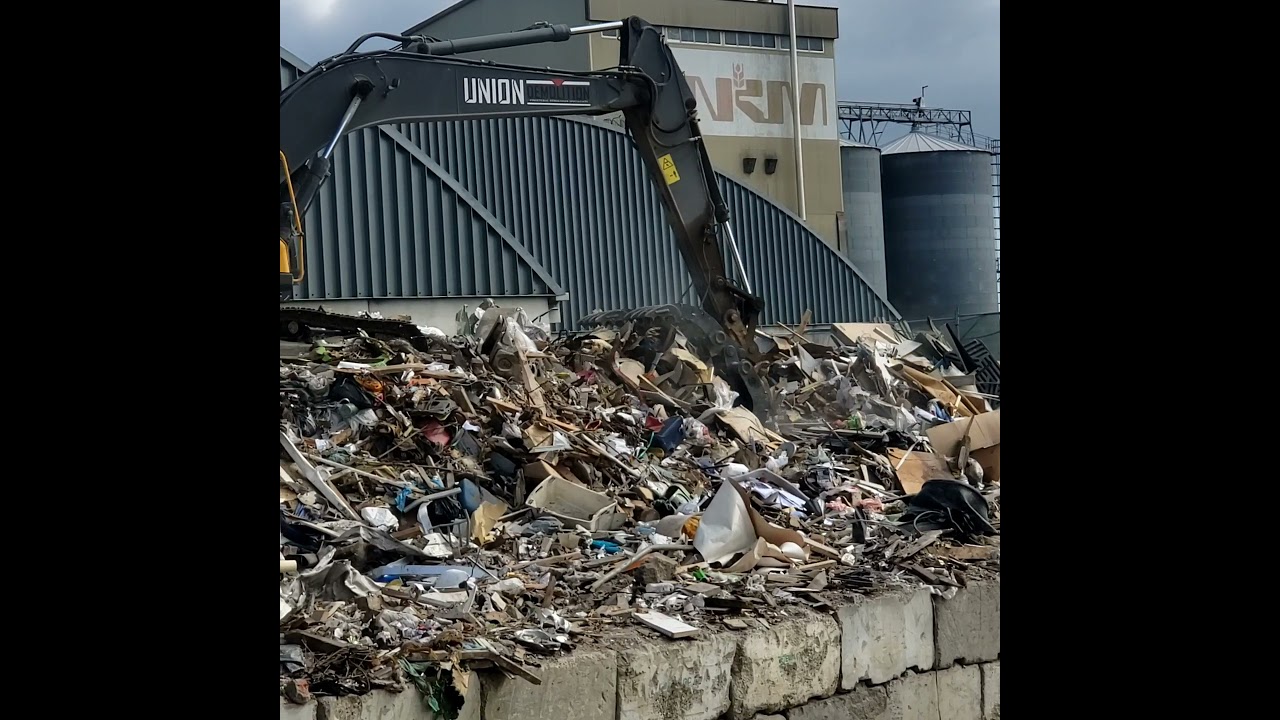

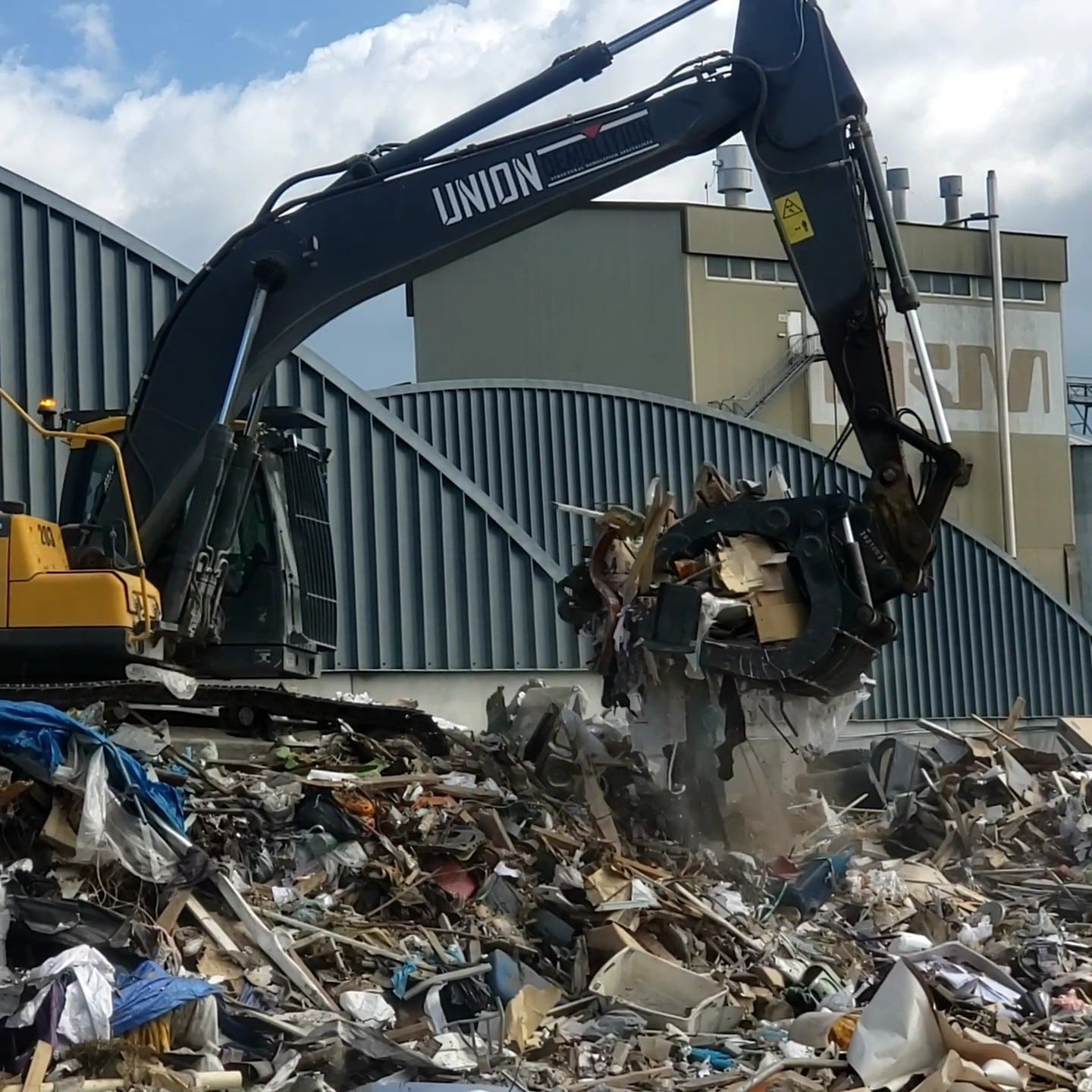

Union Demoltion have massively increased their porduction with the introduction of the DigMax 20T Grab Rake
Please note this video is of our previous design, grab max opening 1580mm, our new design opens to 2330mm

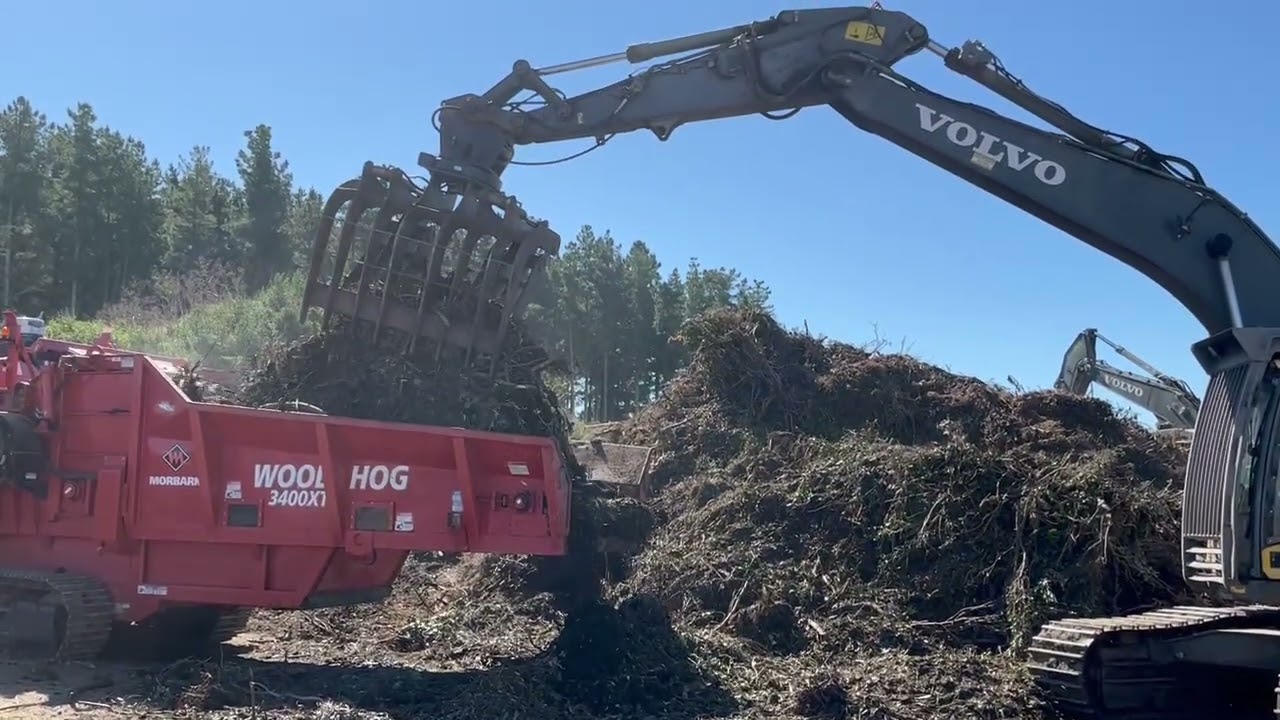

20T Grab Rake with 360 degree rotation
Paranui Organics from Foxton needed a Grab Rake with 360 degree rotation for feeding their mulcher. No problem for the team at Digmax Equipment Limited.
14 T class in action
Taupo Bobcats Limited loving the increased production with their 14T Grab Rake in action
