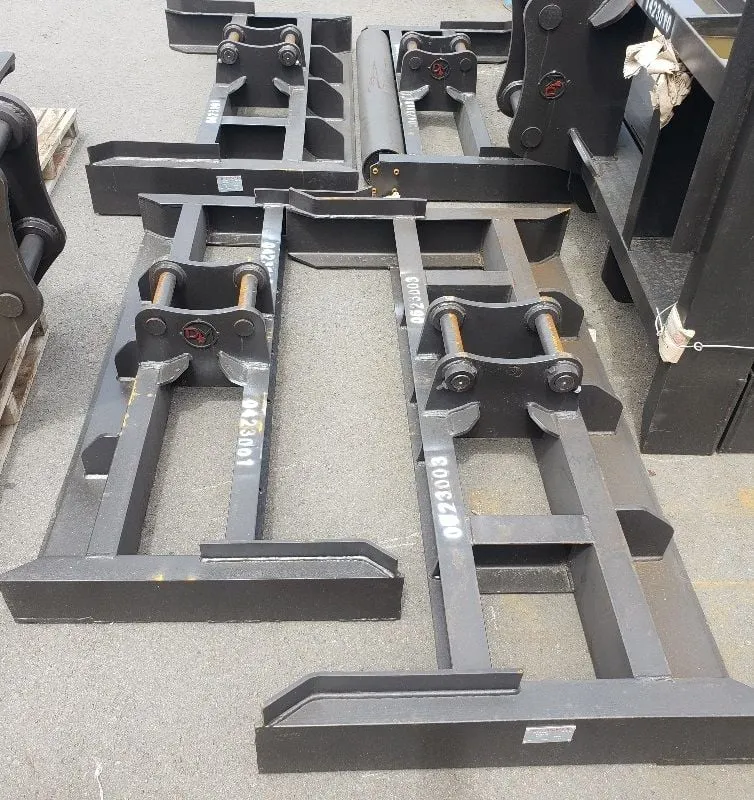

BOX GRADING BEAMS WITH REAR SCOOP BLADE OR REAR ROLLER

Numerous customer requests lead us to develop our box grading beams. BIS400 wear plates on underside to protect the main frame and for ease of replacement Choice of Rear Scoop Blade or Rear roller 1.8 ton to 20 ton available ex stock, and can custom build any size to request Both beams will cut high points. Material is held at the front and between the beams, filling low points Rear Scoop Blade provides the ability to pick material up and place / spread it, as well as assisting to compact and smooth material Rear Roller assists with compaction and fine finishing for sand, soils, fine metals For versatility the rear roller can be easily removed by unbolting the bearings Rear roller bearings are common UCF206 and UCF208, available from DigMax or your local bearing supplier These have proven to be hugely successful for increased productivity and quality of finishing work. Floor pads, driveways, road shoulders, batters We can custom build to order, such as adding tilt function and 360° continuous rotation Customer feedback: "The 14T grading beam we grabbed off you, amazing. We do a lot of race work and honestly don't know how we used to do it before with just a wide bucket. Brilliant piece of kit" "Love the 8T levelling beam you supplied, real game changer for us. We have just done 5km of 1m wide shoulder widening with our wheel digger, sent the grader back to the yard!" "Our 2 ton grader beam you supplied, magic! We do a lot of long driveways, we flip it around so the roller is facing the operator and walk it like a bulldozer, works magic! We no longer hire in a grader, saves us a fortune!" Specifications: 1.6 - 2.8 Ton: 1400m wide, beam height 140mm, length 720mm, BIS400 wear strips underside Weight: Rear Scoop Blade 155kg Rear Roller 170kg 3 - 4.8 Ton: 1600mm wide, beam height 160mm, length 850mm, BIS400 wear strips underside, Weight: Rear Scoop Blade 175kg Roller Roller 200kg 5 - 6 Ton: 1800mm wide, beam height 200mm, length 1000mm, BIS400 wear plates underside, Weight: Rear Scoop Blade 290kg Rear Roller 335kg 8 - 10 Ton: 2200mm wide, beam height 200mm, length 1200mm, BIS400 wear plates underside, Weight: Rear Scoop Blade 420kg Rear Roller 490kg 12 - 15 Ton: 2500mm wide, beam height 200mm, length 1400mm, BIS400 wear plates underside, Weight: Rear Scoop Blade 480kg Rear Roller 550kg 20 Ton: 3000mm wide, beam height 250mm, length 1400mm, BIS400 wear plates underside,Weight: Rear Scoop Blade 790kg
14T class fitted with 360 continuous rotation. Works on a standard 2 way auxiliary circuit
Custom build - 4 ton class with tilt ram
