DigMax heavy duty digging buckets offer unparalleled value.
DigMax can custom build according to your preferences and application, at very affordable prices.
Materials are Q345, Q345B, Q355B Hardox, and Bisaloy.

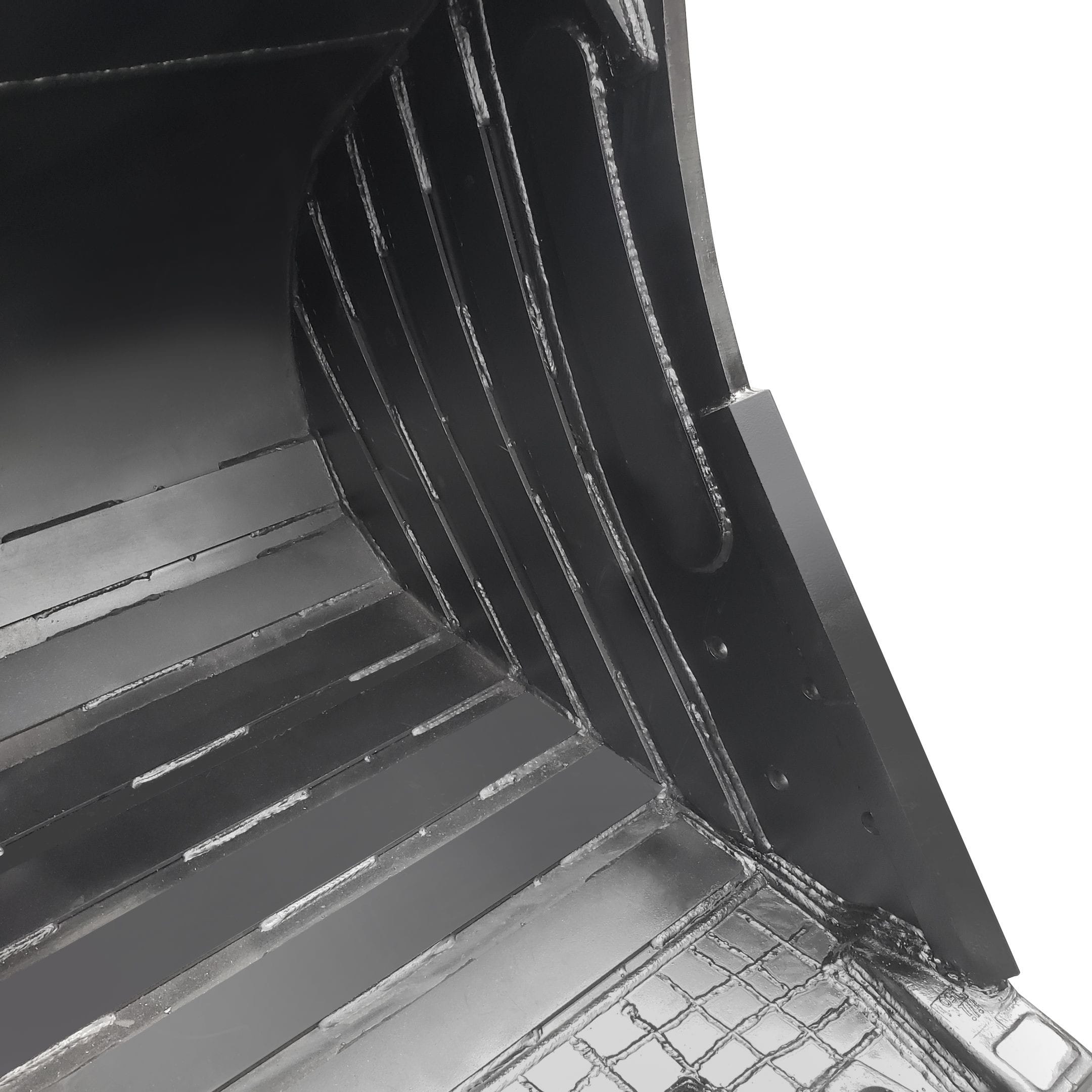

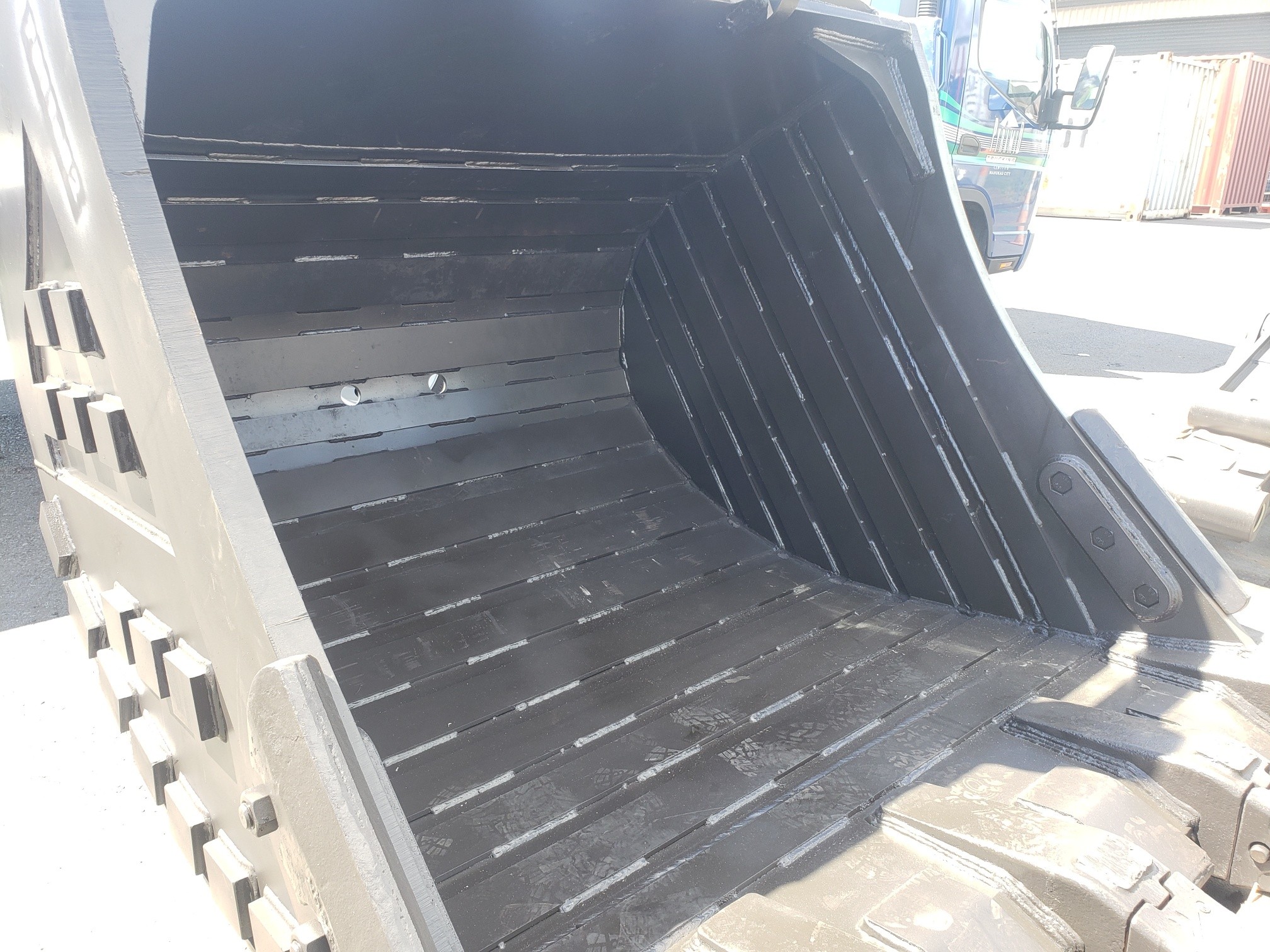

DigMax Rock / Heavy Duty digging buckets are serious gear, without the serious price tag. The bucket floor is protected on the top side and double layer protection on the bottom side, with bisaloy 400 wear strips. Heel Shrouds on quarry buckets. Just a few of the heavy duty features that come standard with these bad boys. You can choose your GET preference, standard fitment is Cat J-Series Teeth & Adaptors.
When the teeth are due for replacement, DigMax can supply Futura hammerless teeth to fit Cat J-Series adaptors. The tooth is placed over the adaptor, slide the pin through and twist the pin with either an allen key or socket. The Futura teeth have proven to be very durable and are now the prefered tooth of choice for many of our clients.
For more information on the Futura product visit:
https://byg.com/en/products/teeth-and-adapters/
Digmax have supplied 20, 25, 30, 35, 40, 50 & 75 ton class Heavy Duty digging buckets for forestry roading, quarries and demolition, and the word is spreading how well built, and how cost effective these are. Durability and wear life is proven after 5 years in the market, references available.
Scroll down for examples.

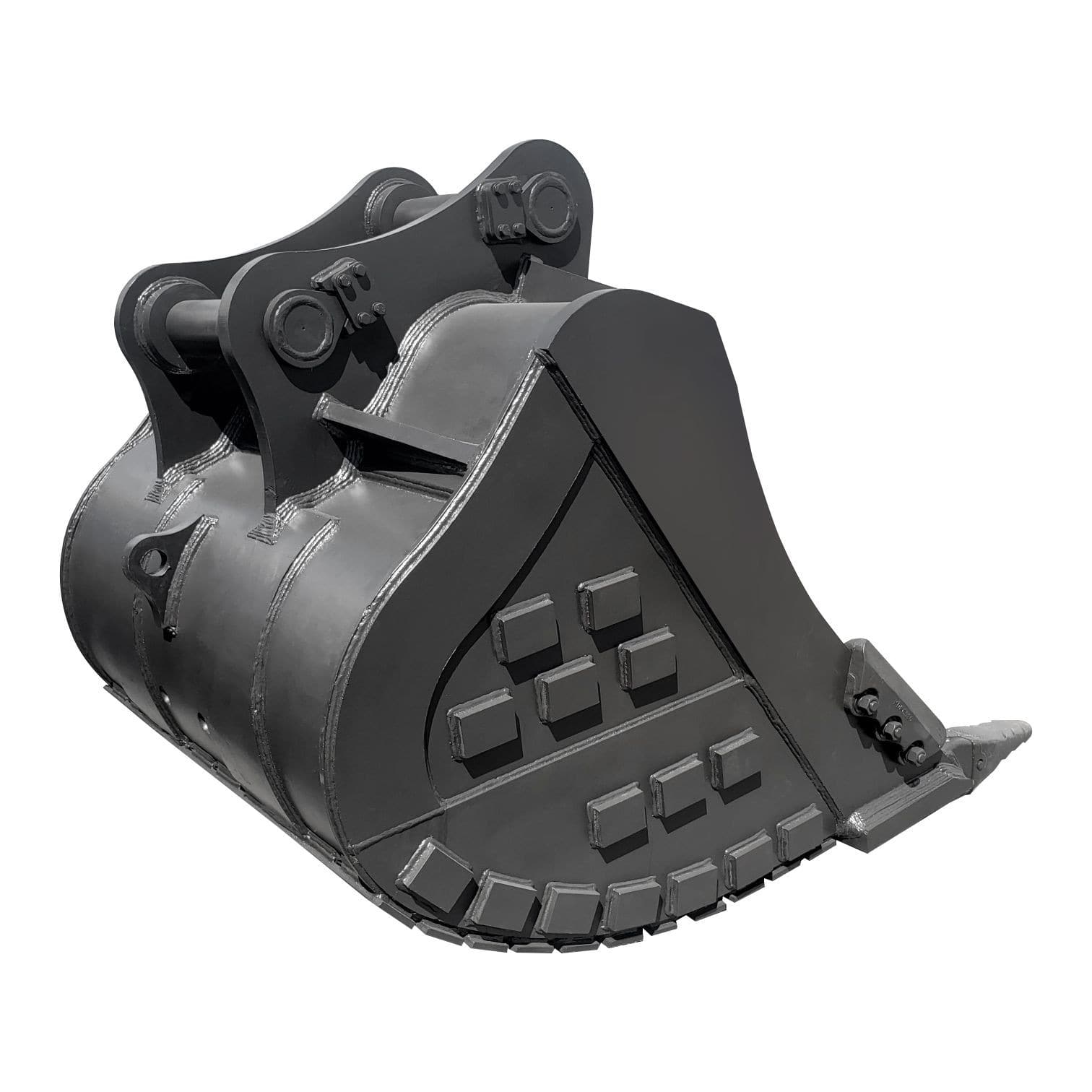

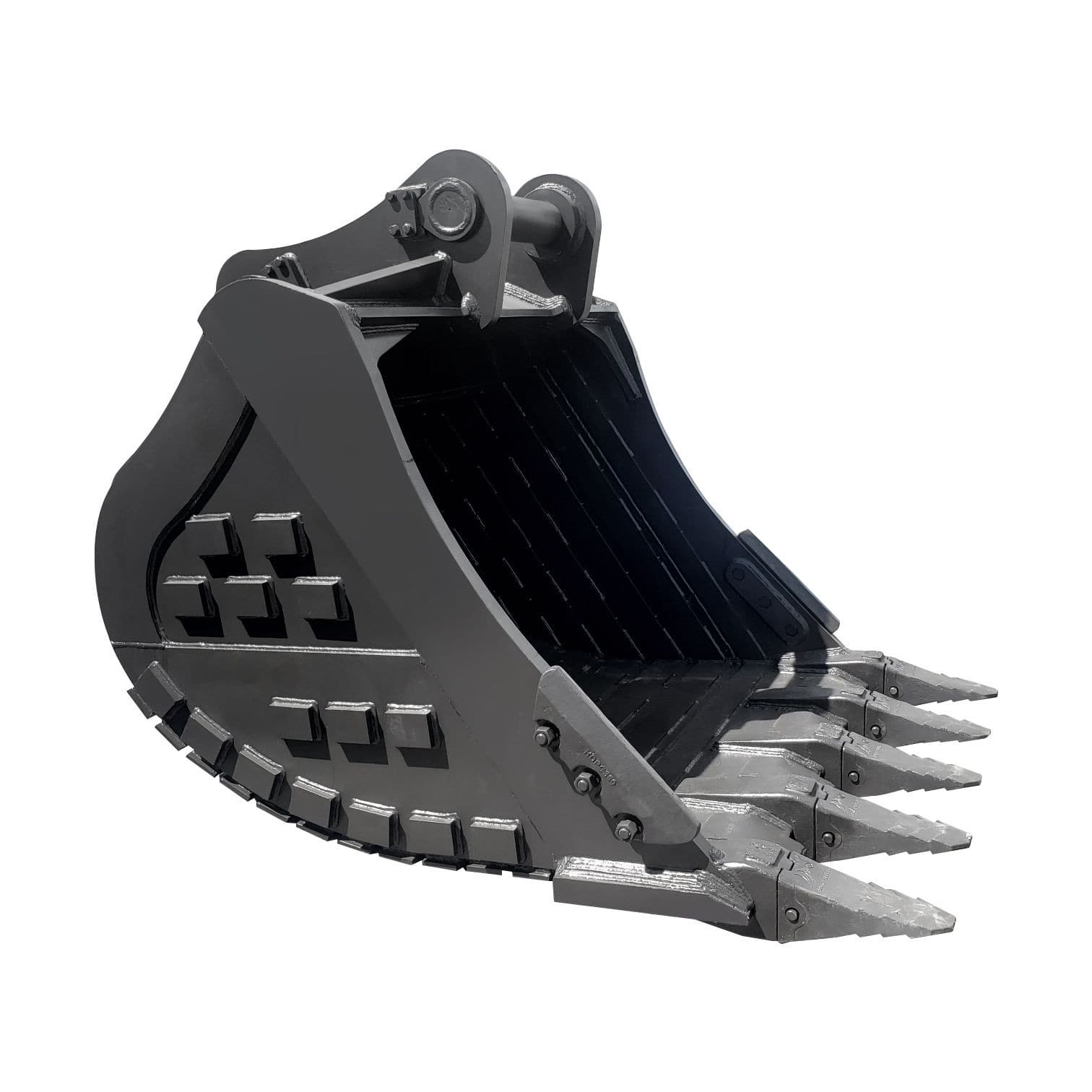

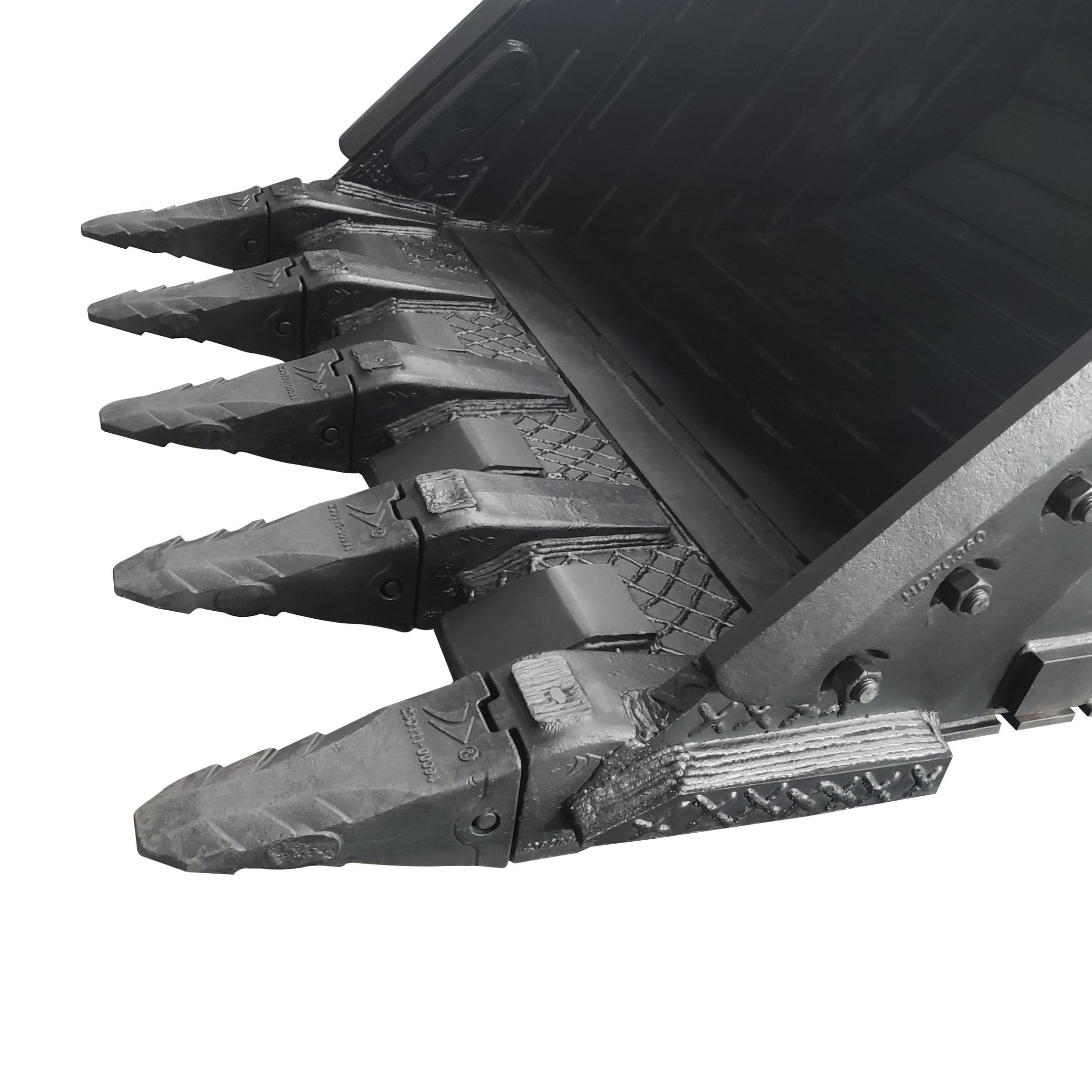

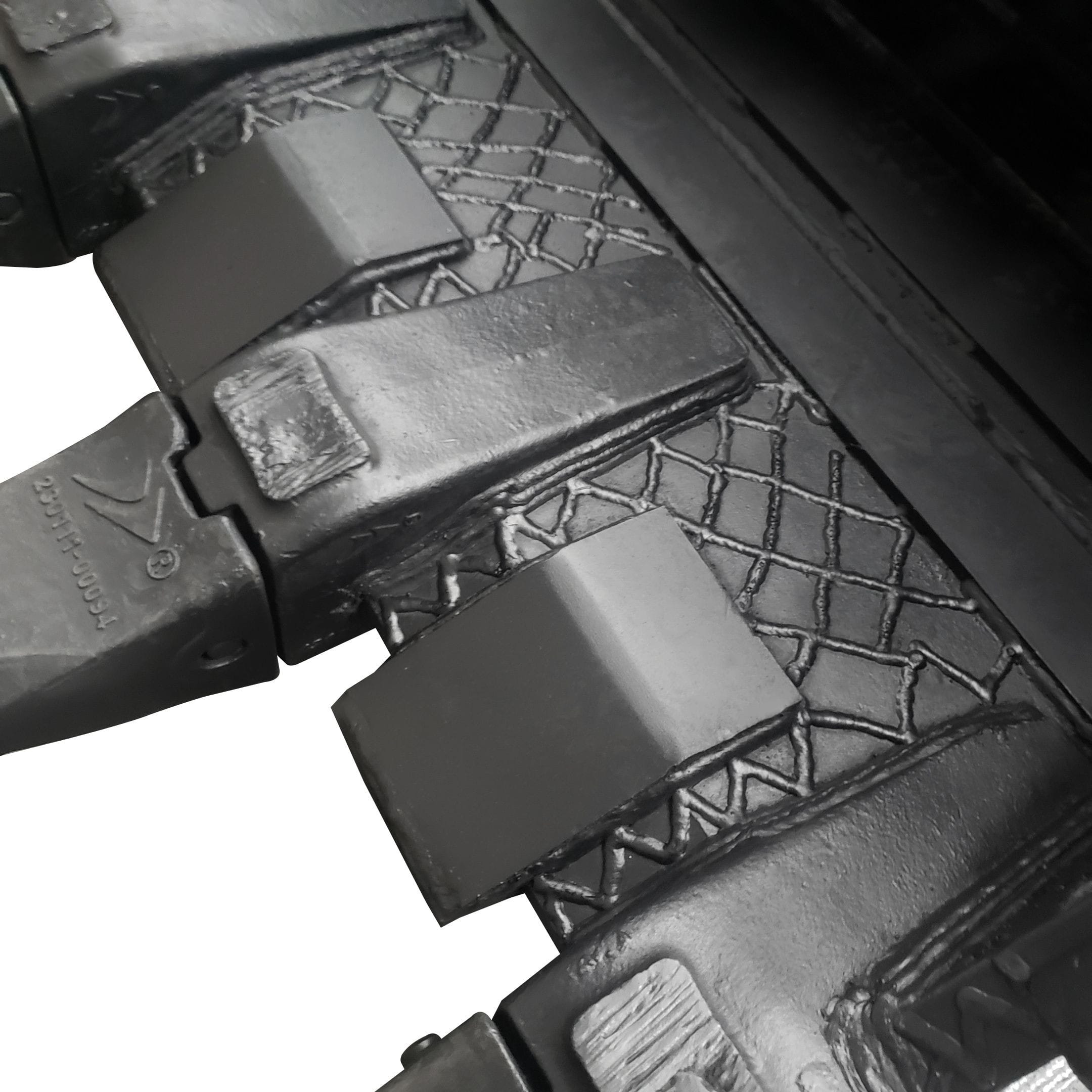

75 Ton Class
Scott Base expansion project, Antartica
Custom build for extreme application, suit Volvo EC950EL
1900mm wide. 4.0m3 heaped capacity, weight 4600kg

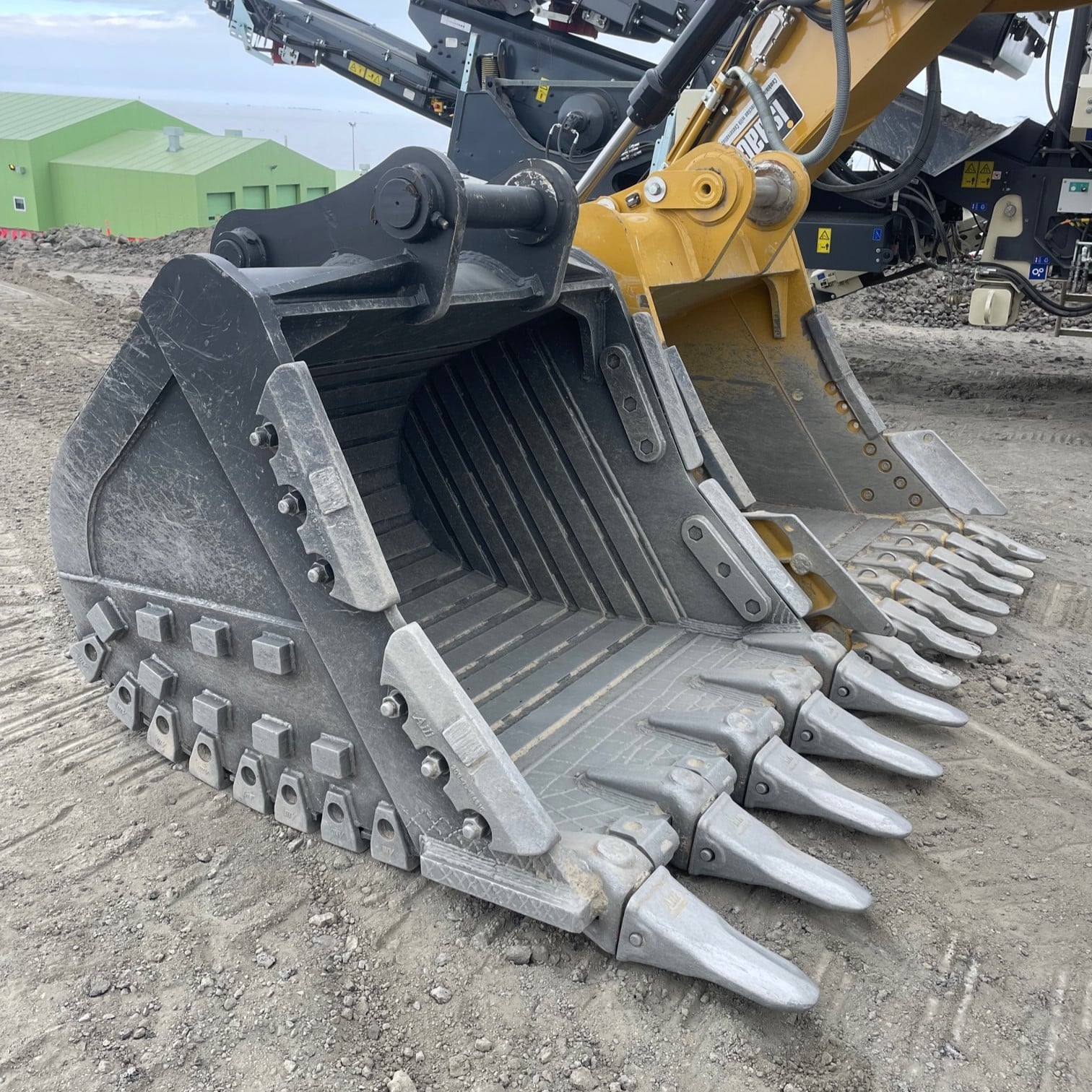

50 & 35 Ton Class

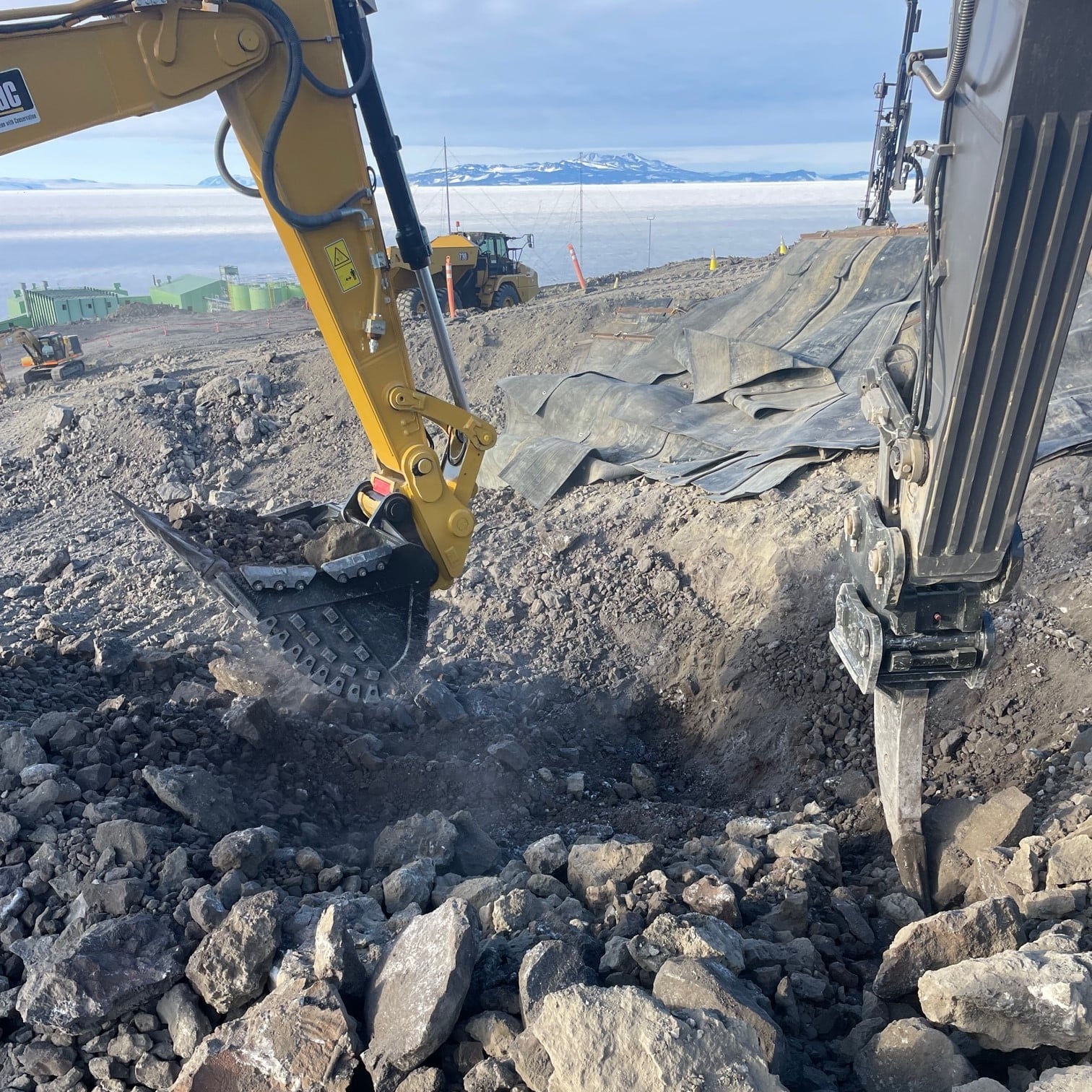

Scott Base expansion project, Antartica
Custom build for extreme application, suit Cat 330GC and Cat 345GC
Cat 330GC: Heaped capacity 1.7m3, weight 1600kgCat 345GC: Heaped capacity 2.6m3,weight 2690kg
Cat 330GC HD Bucket
Cat 345GC HD Bucket
Cat 330GC HD Bucket

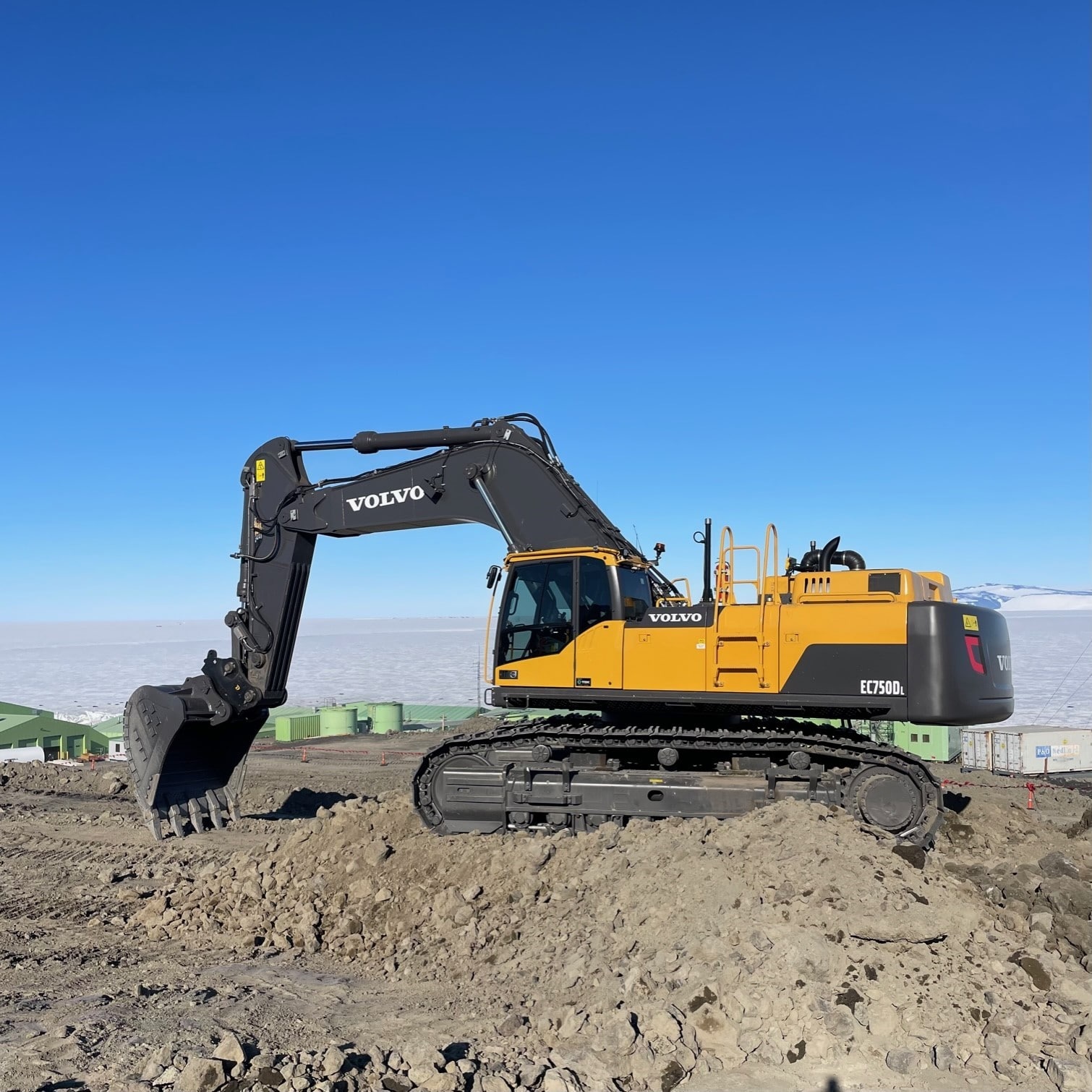

Cat 345GC and Volvo 750EL (with DigMax ripper)

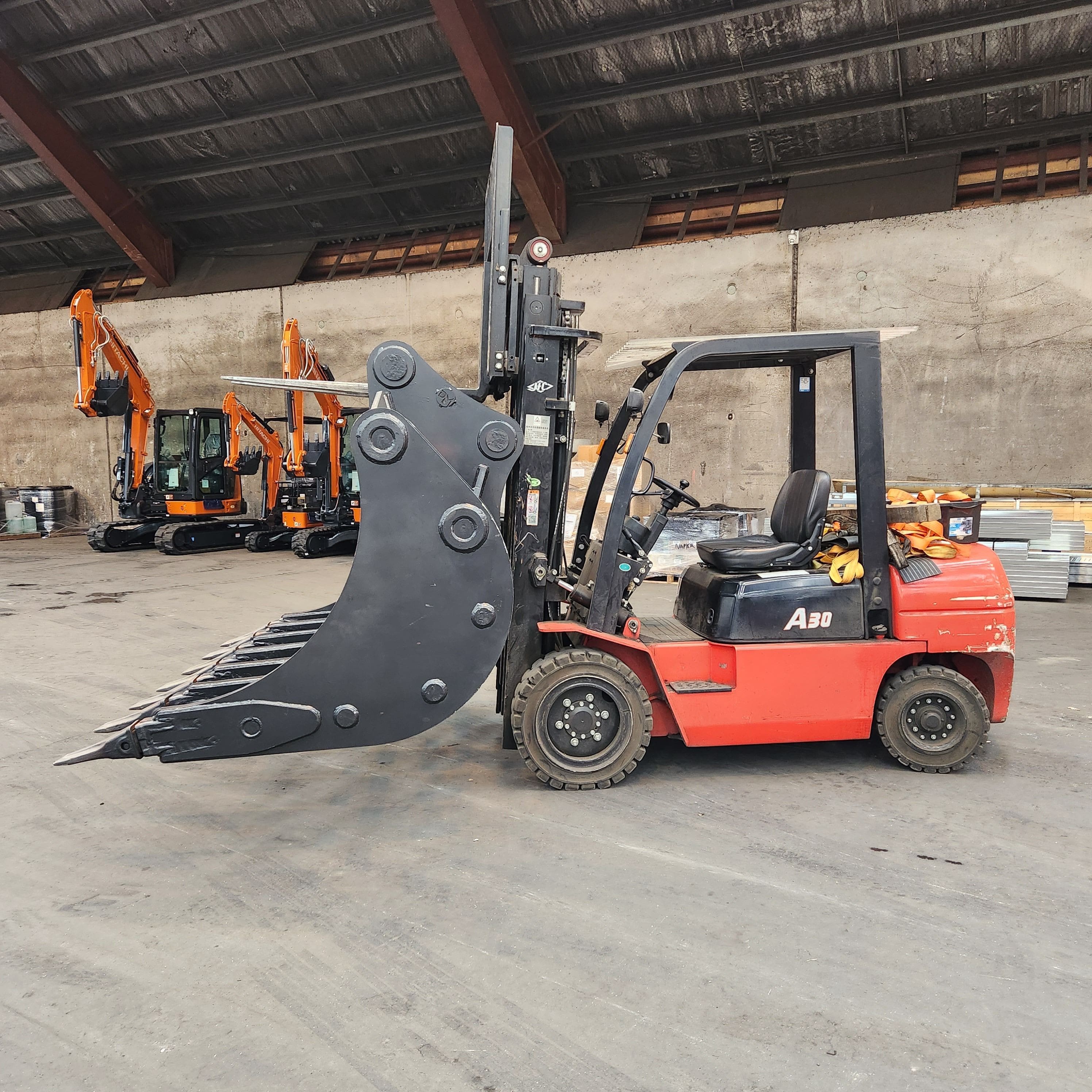

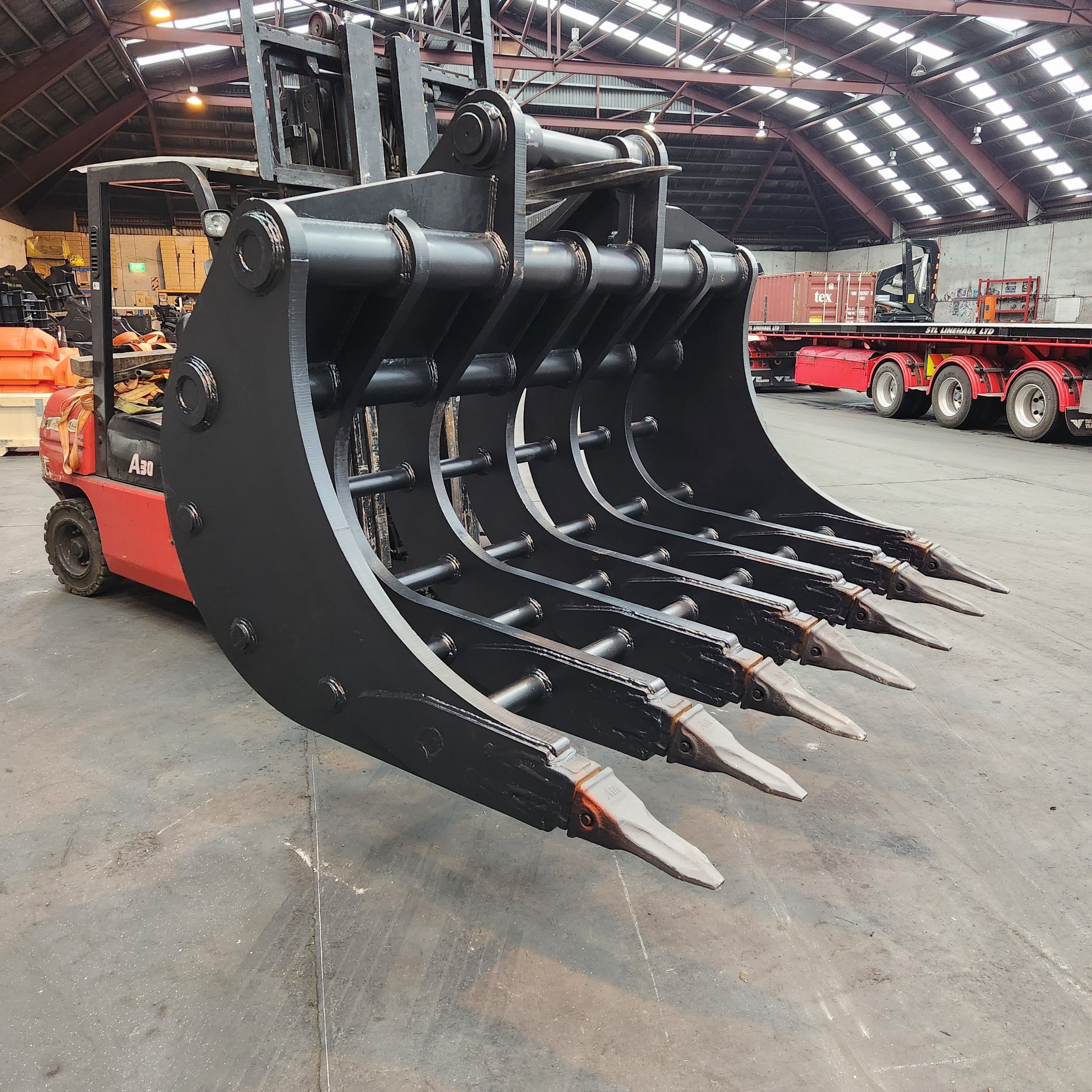

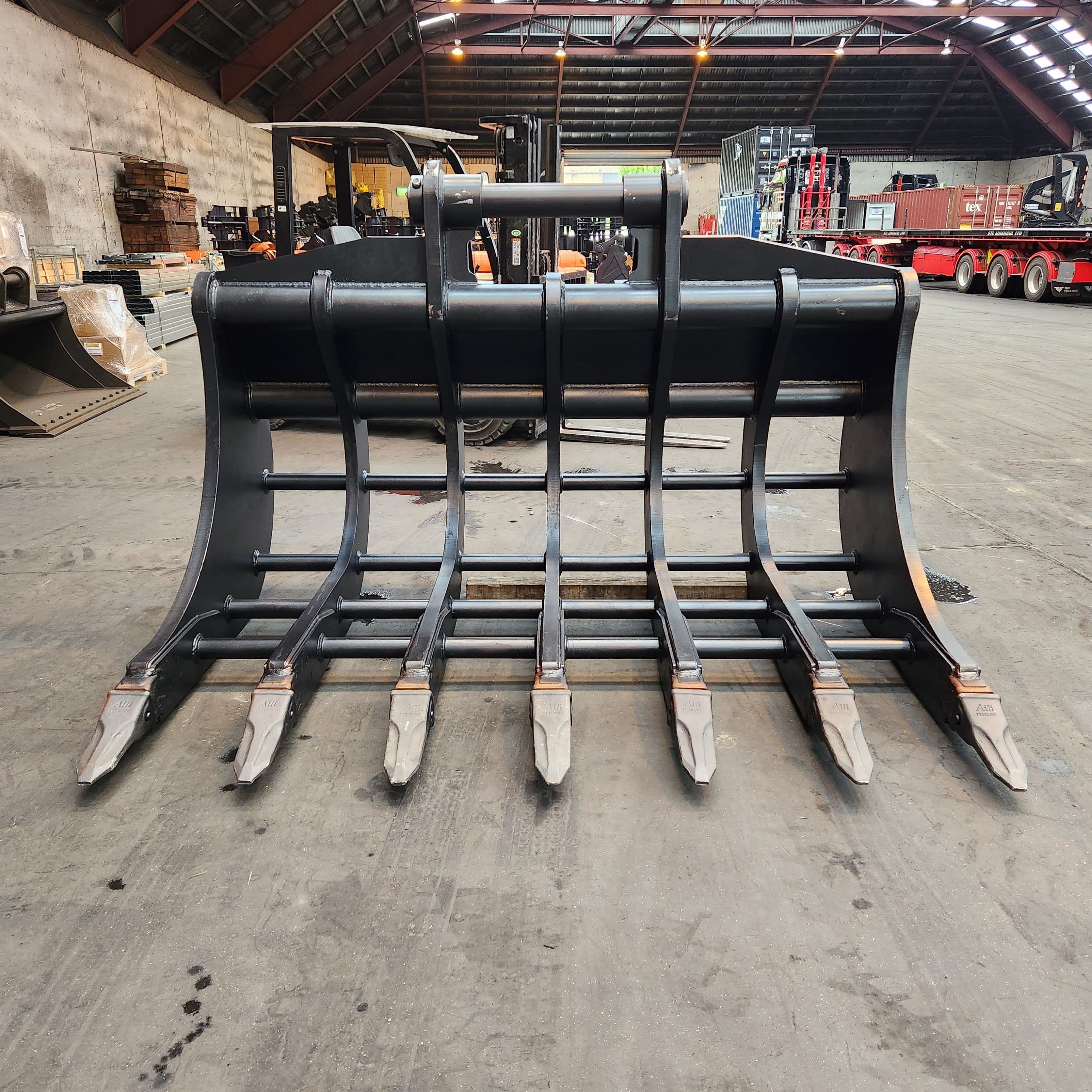

50 Ton Class "Bucket Rake"
Scott Base expansion project, Antartica
Custom build for severe application of screening shot Basalt & Scoria
2450mm wide, 50mm thick solid Bisaloy 400 tynes, weight 3200kg

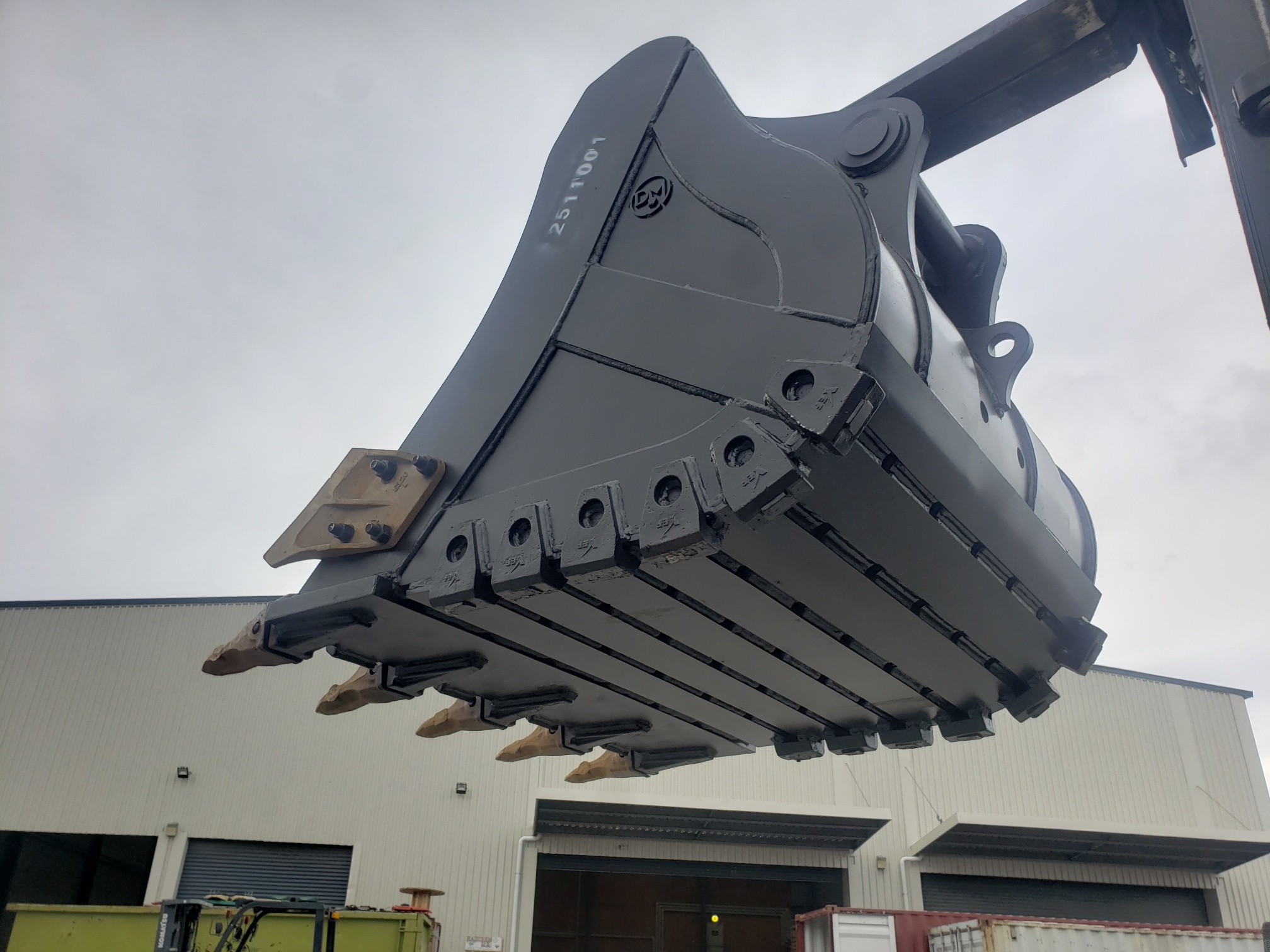

50 Ton Class
Wharehine Contractors, blue rock quarry, Wellsford
Custom build suit Doosan DX480LC
1690mm wide, 2.7cm3 heaped capacity, Weight 2400kg

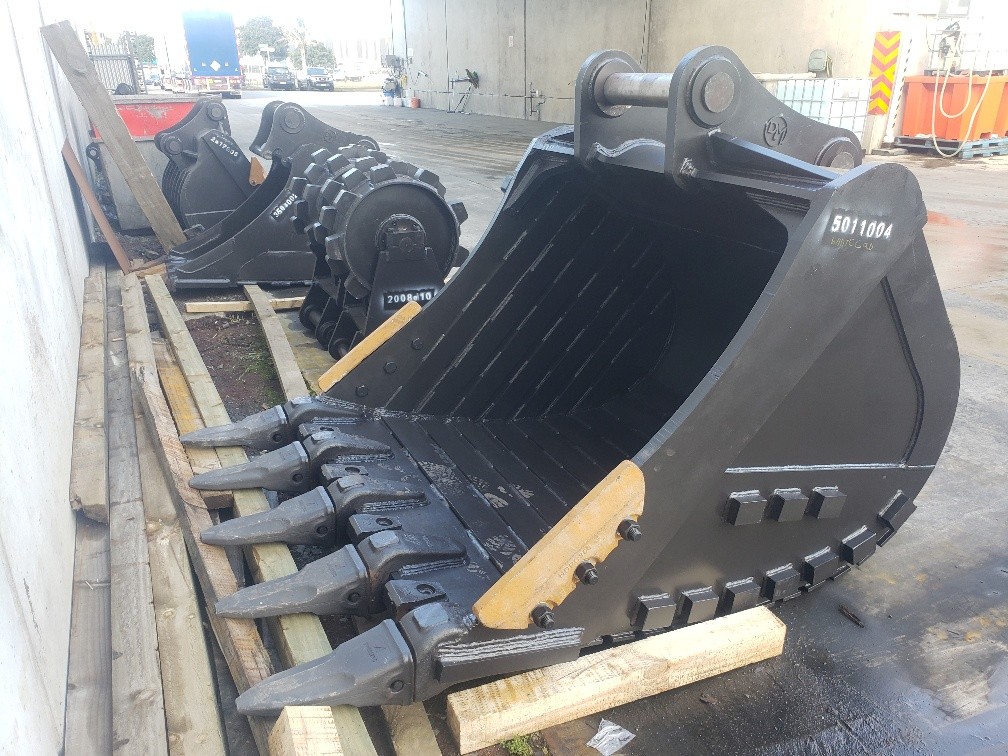

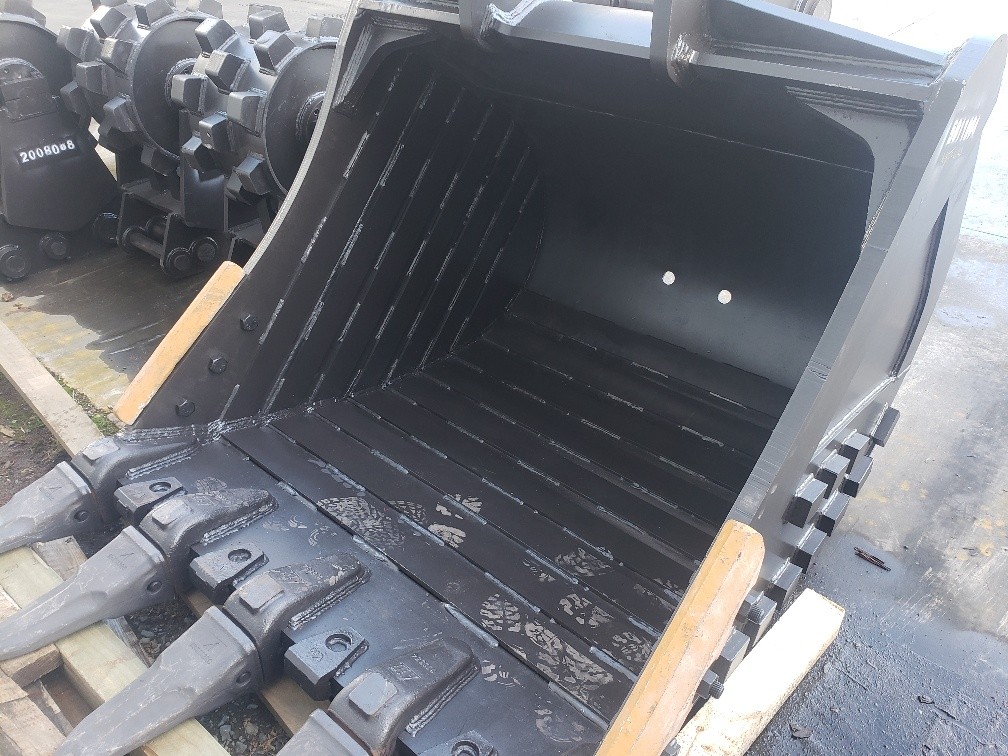

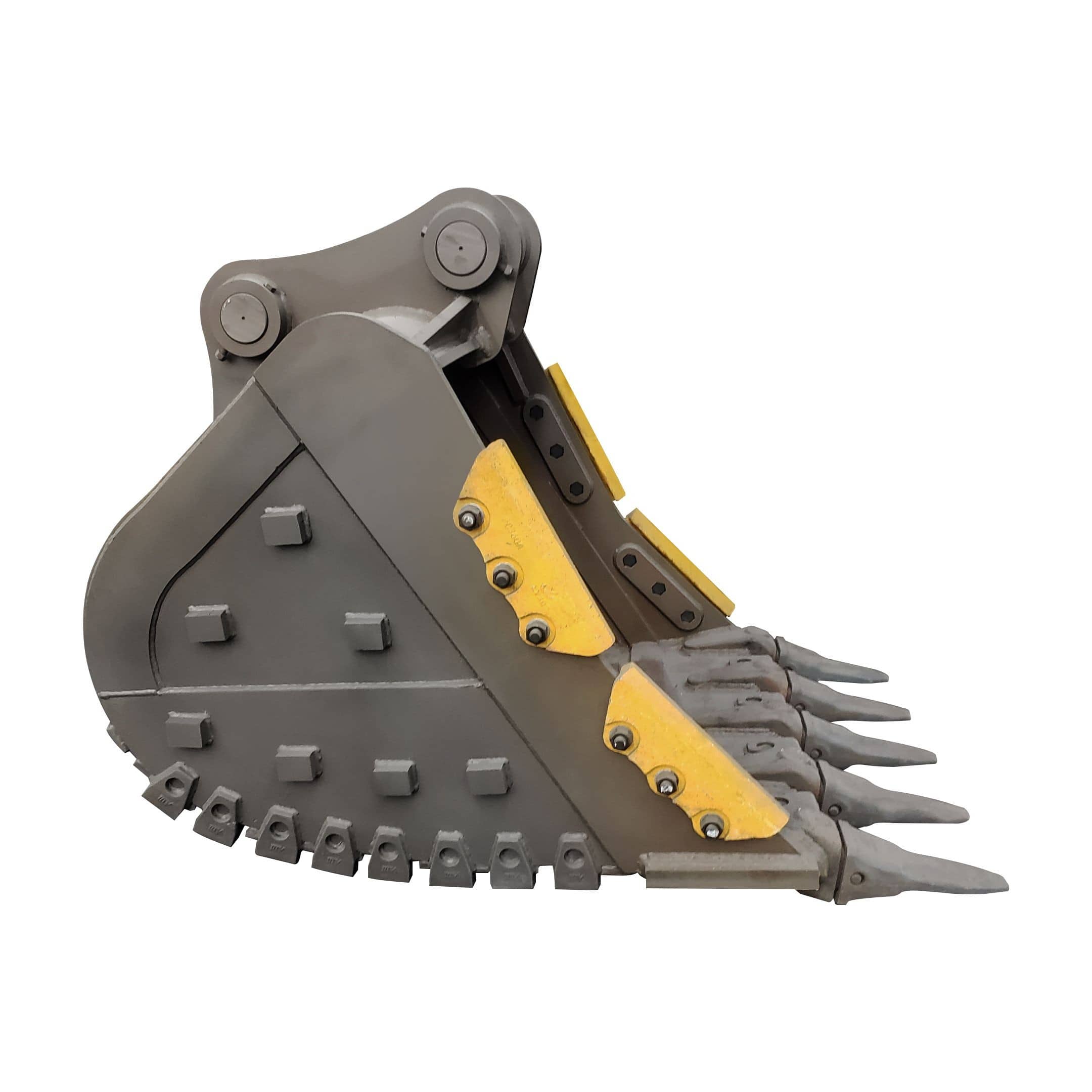

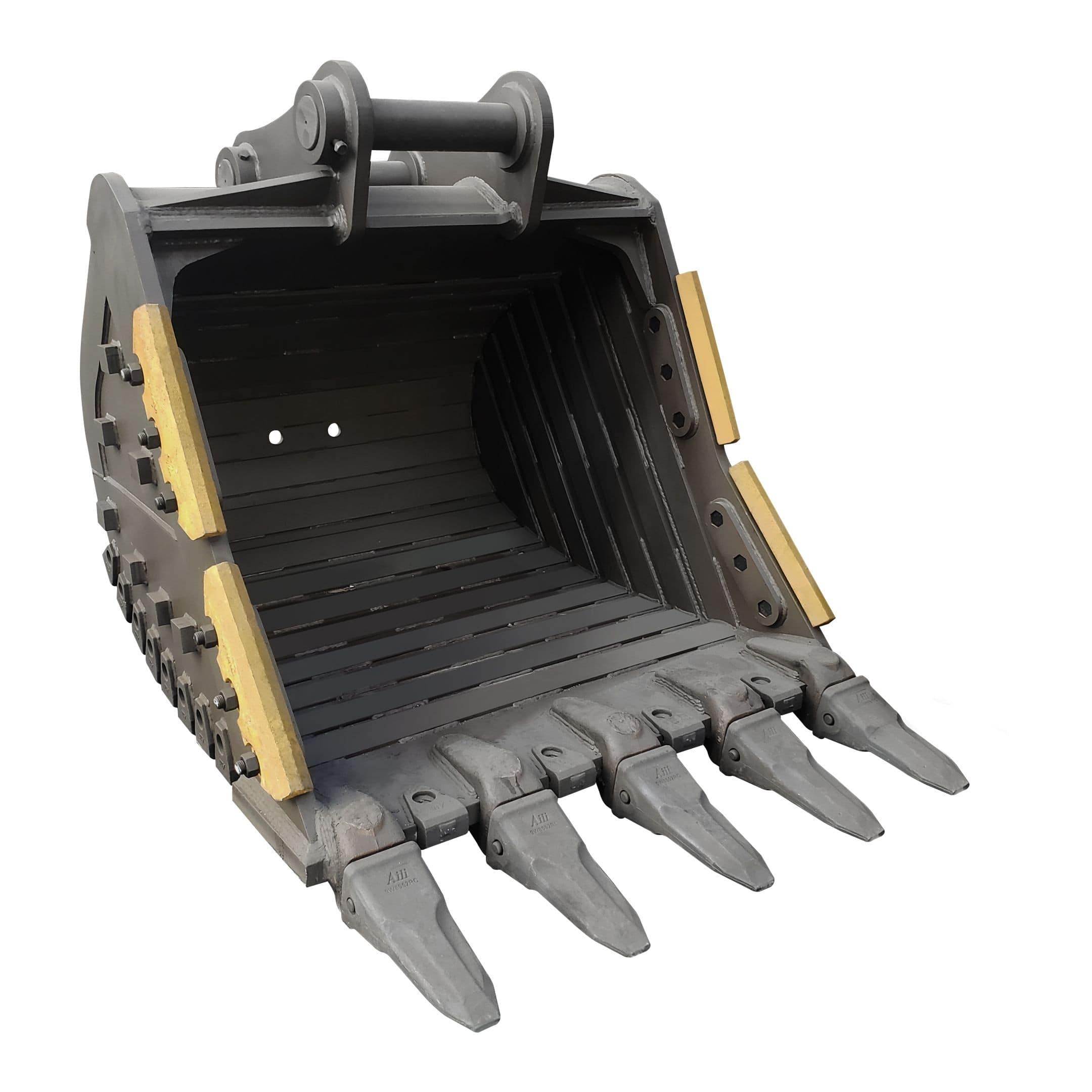

50 Ton Class
Ward Demolition, Auckland. Custom build suit Hyundai R500LC
Heaped capacity 2.5m3, weight 3200kg

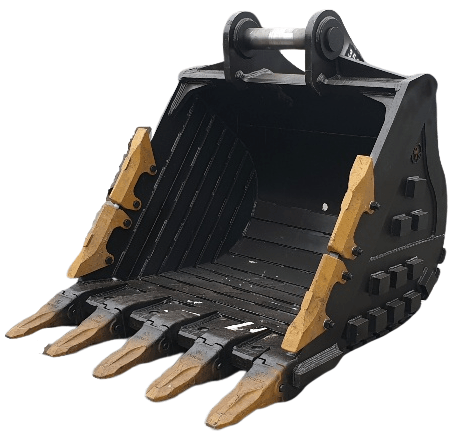

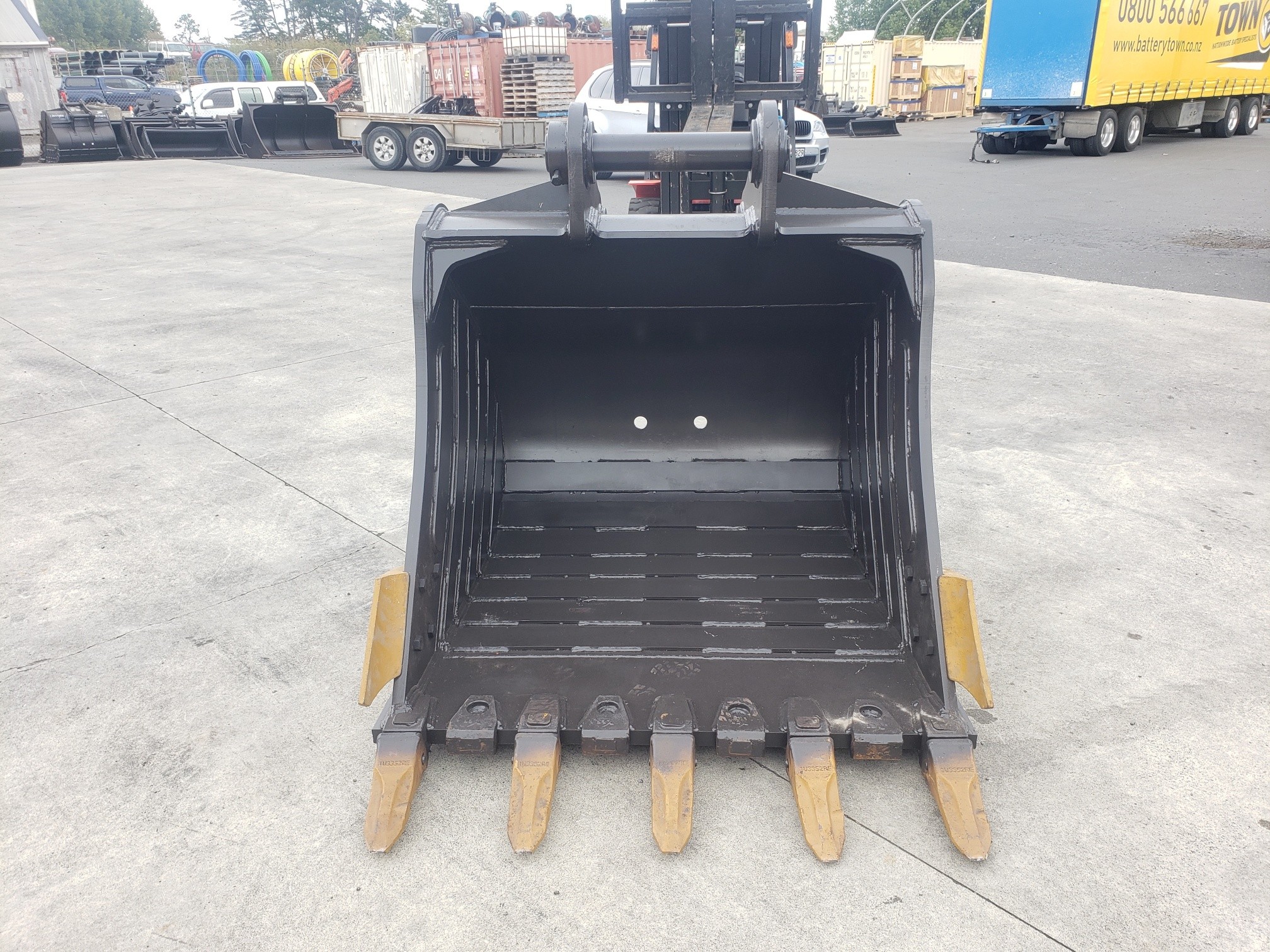

40 Ton Class
Custom build: 1400mm wide, heaped capacity 1.7m3, weight 2220kg
.png)
.png)
30 Ton Class
1420mm wide, heaped capacity 1.4m3, weight 1400kg
.jpg)

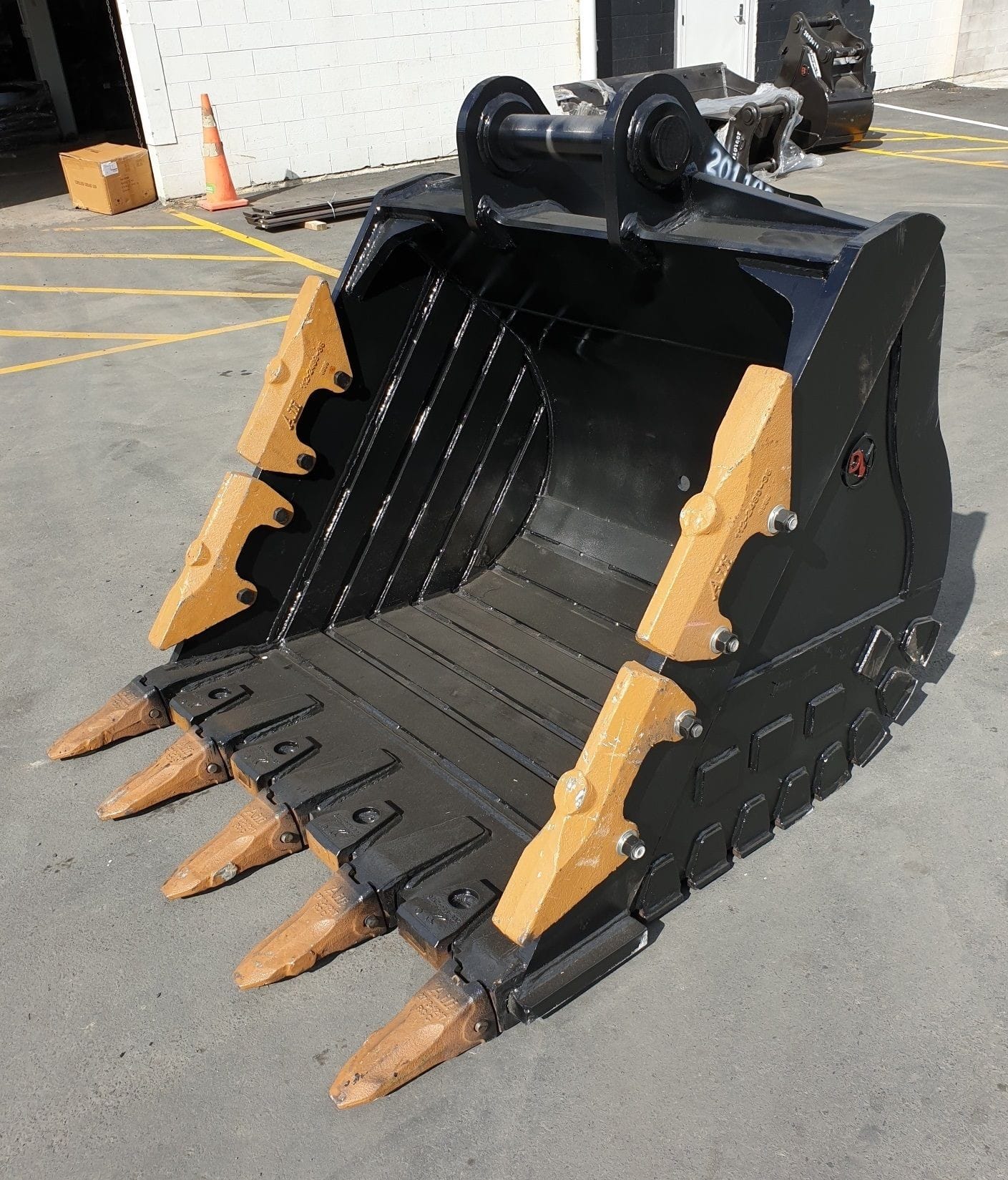

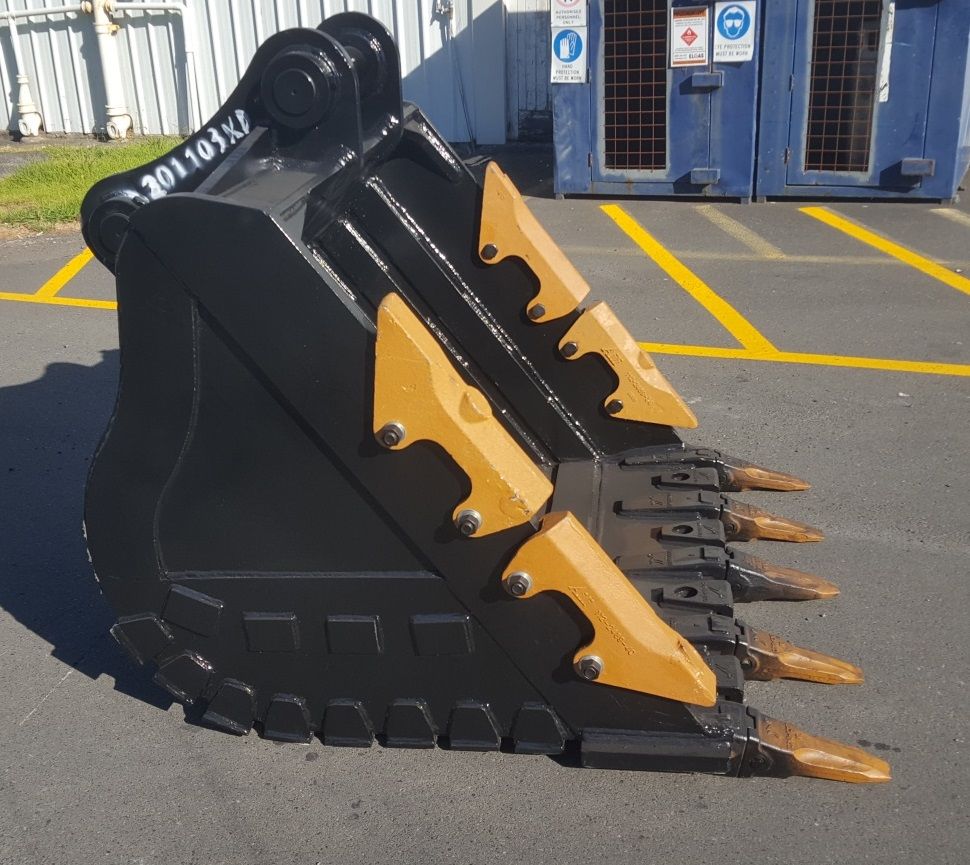

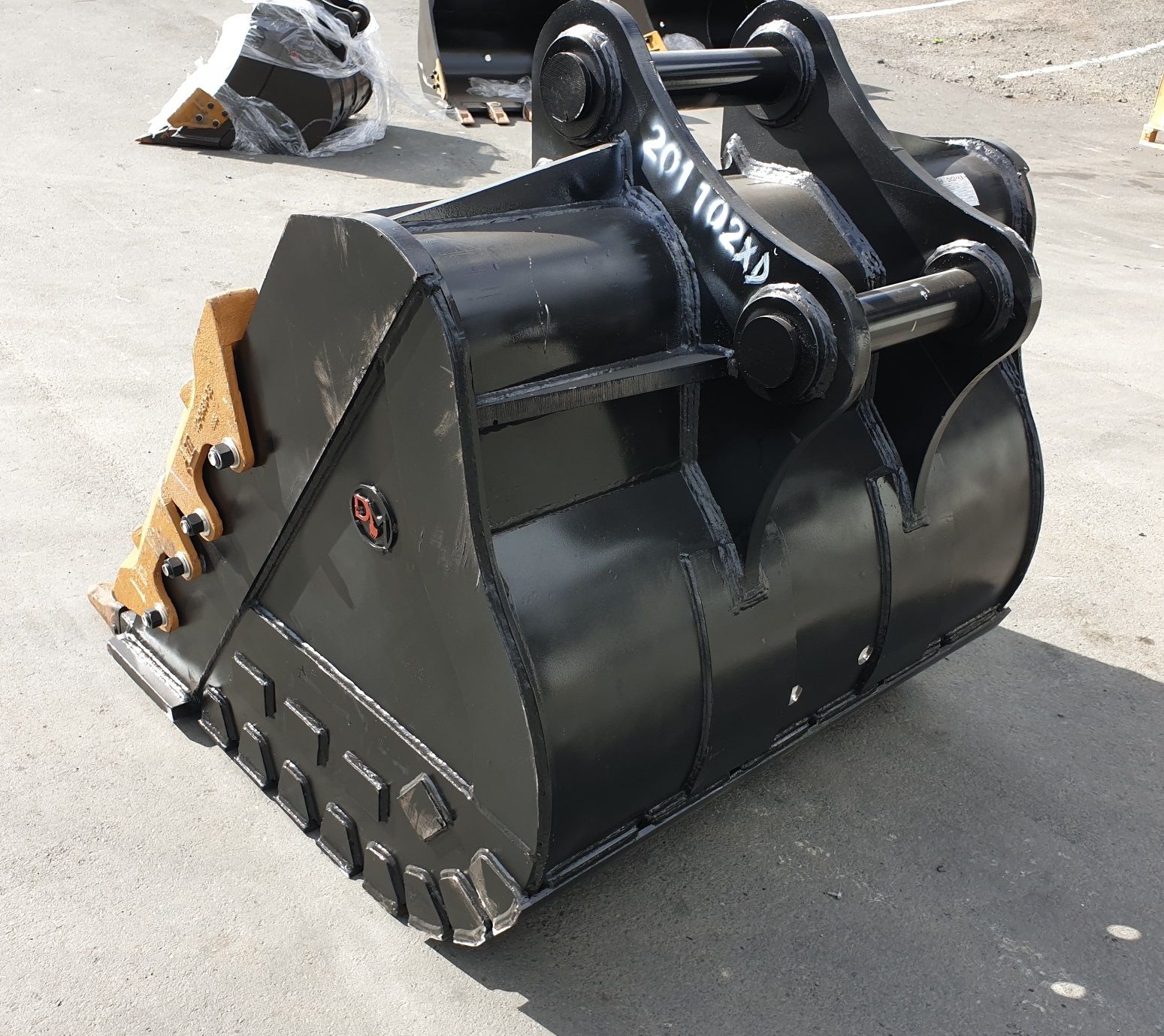

20 Ton Class
Standard HD specification
1300mm wide, heaped capacity 1.15m3, weight 1170kg

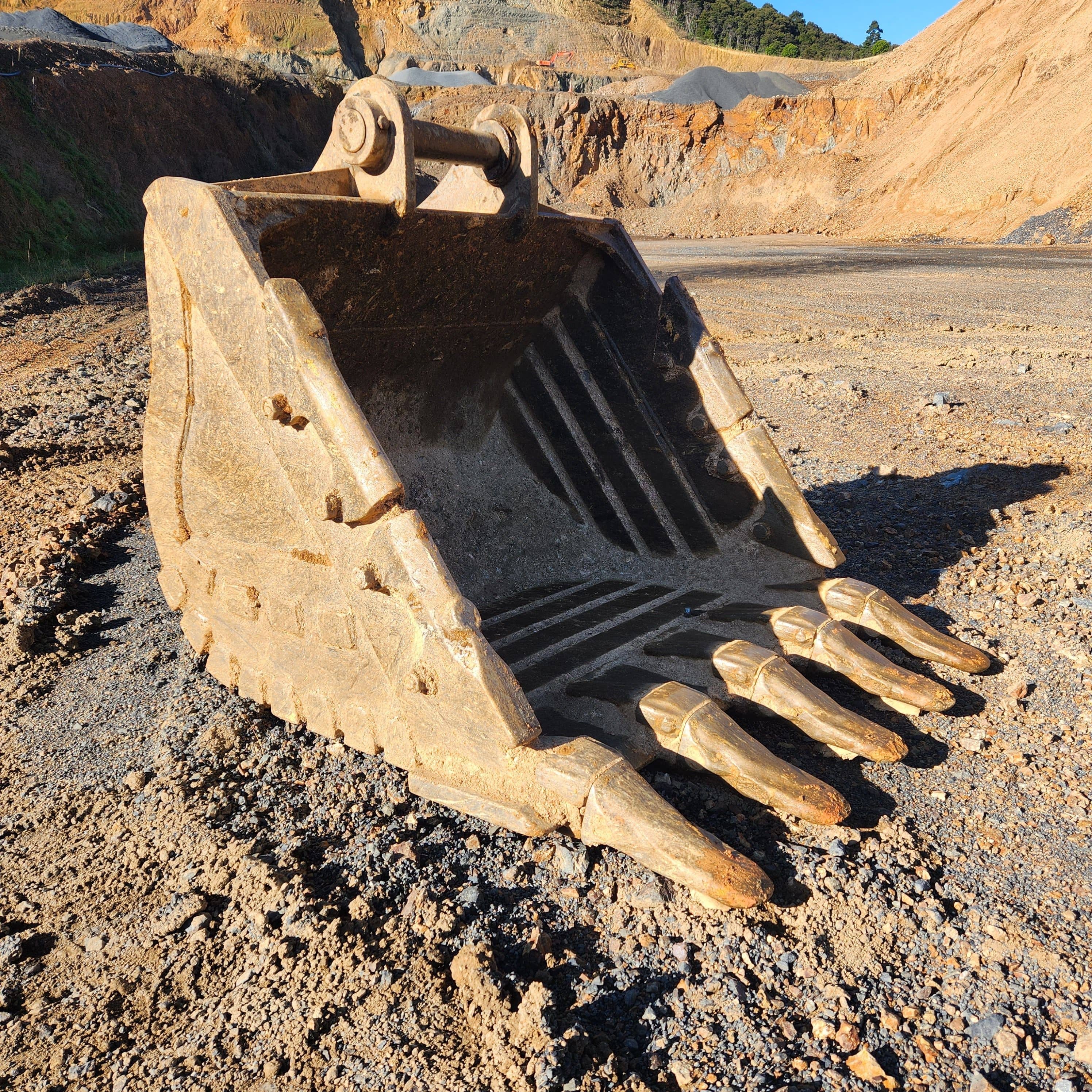

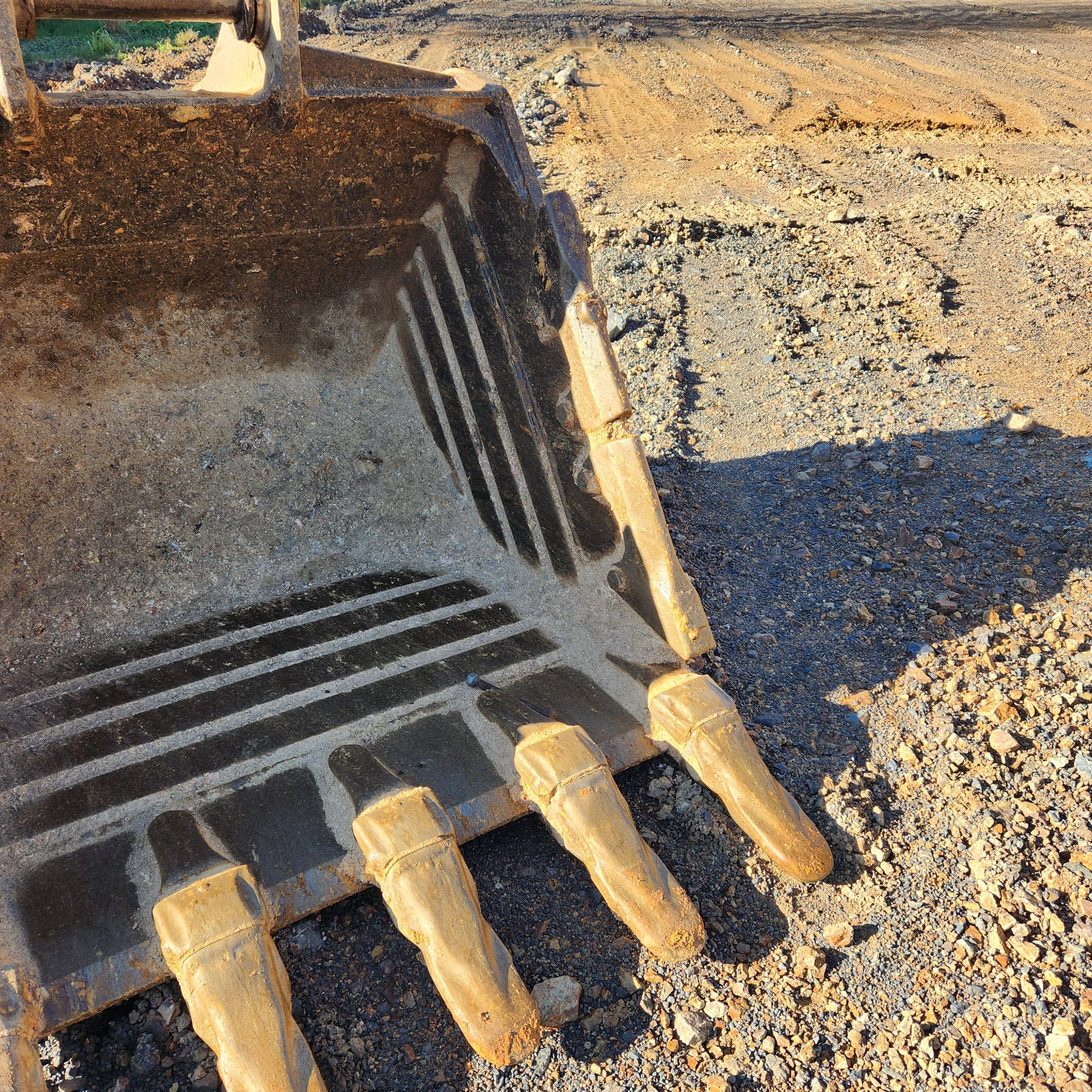

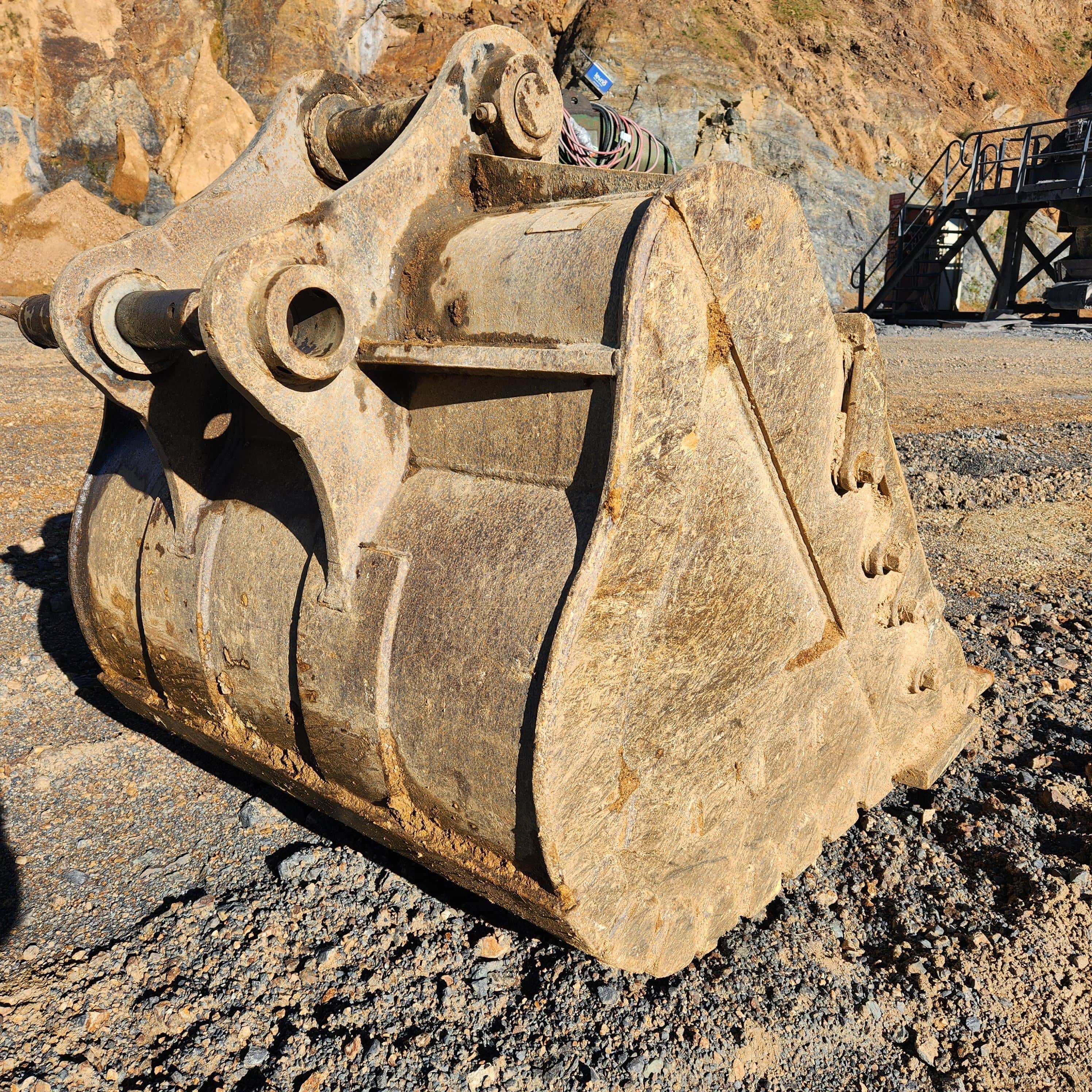

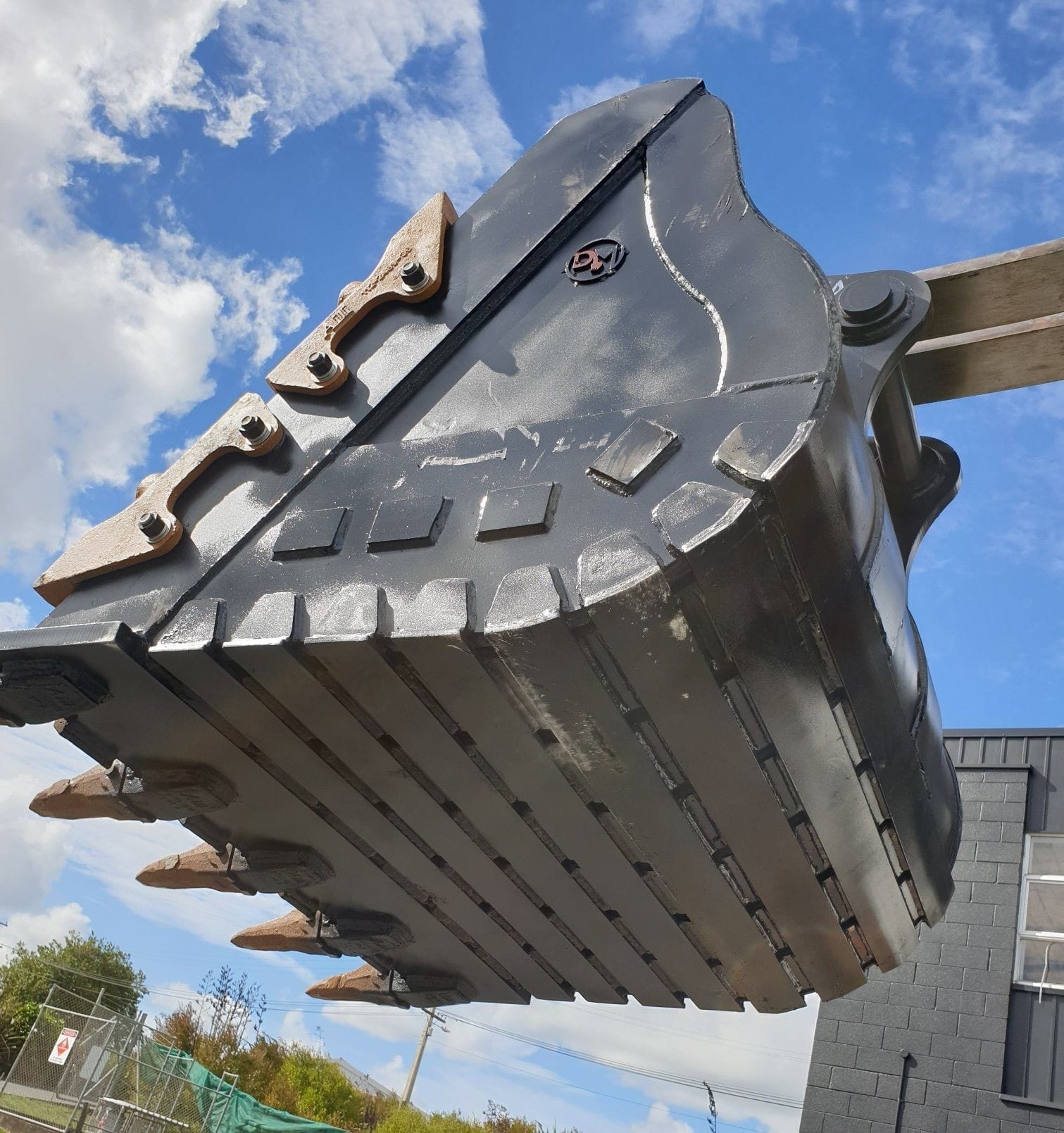

20T class Heavy Duty Bucket
Dickson Quarry, Glenbervie, Whangarei

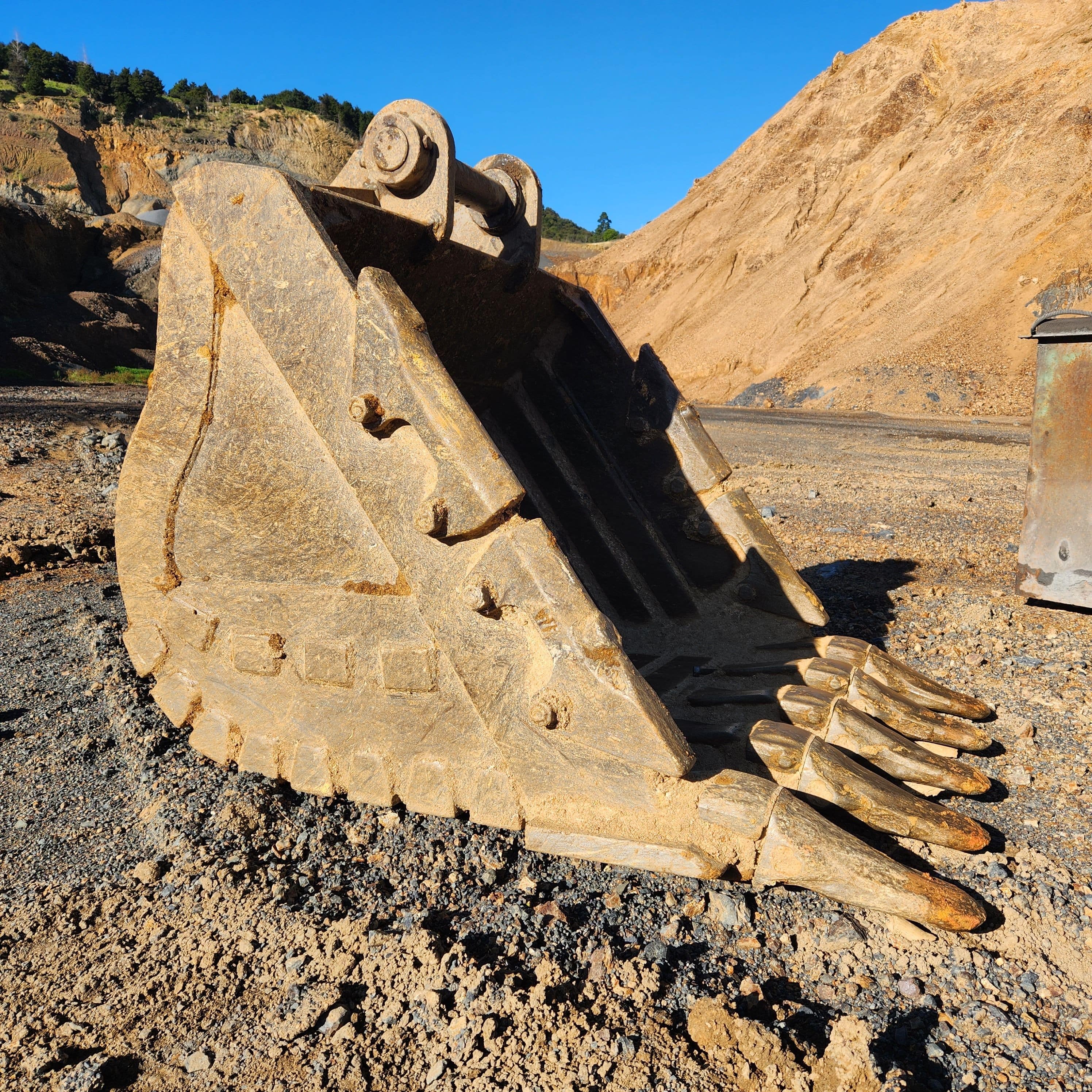

Pics of bucket after apprx. 3000 hours usage of loading shot greywacke rock into the crusher
14 & 20 Ton Class Severe Duty Buckets
Steelserv, New Zealand Steel, Glenbrook steel mill, Auckland
DigMax were approached to custom build severe duty buckets for handling semi-cooled slag ingots. Specifications were developed specifically for the application
.jpg)

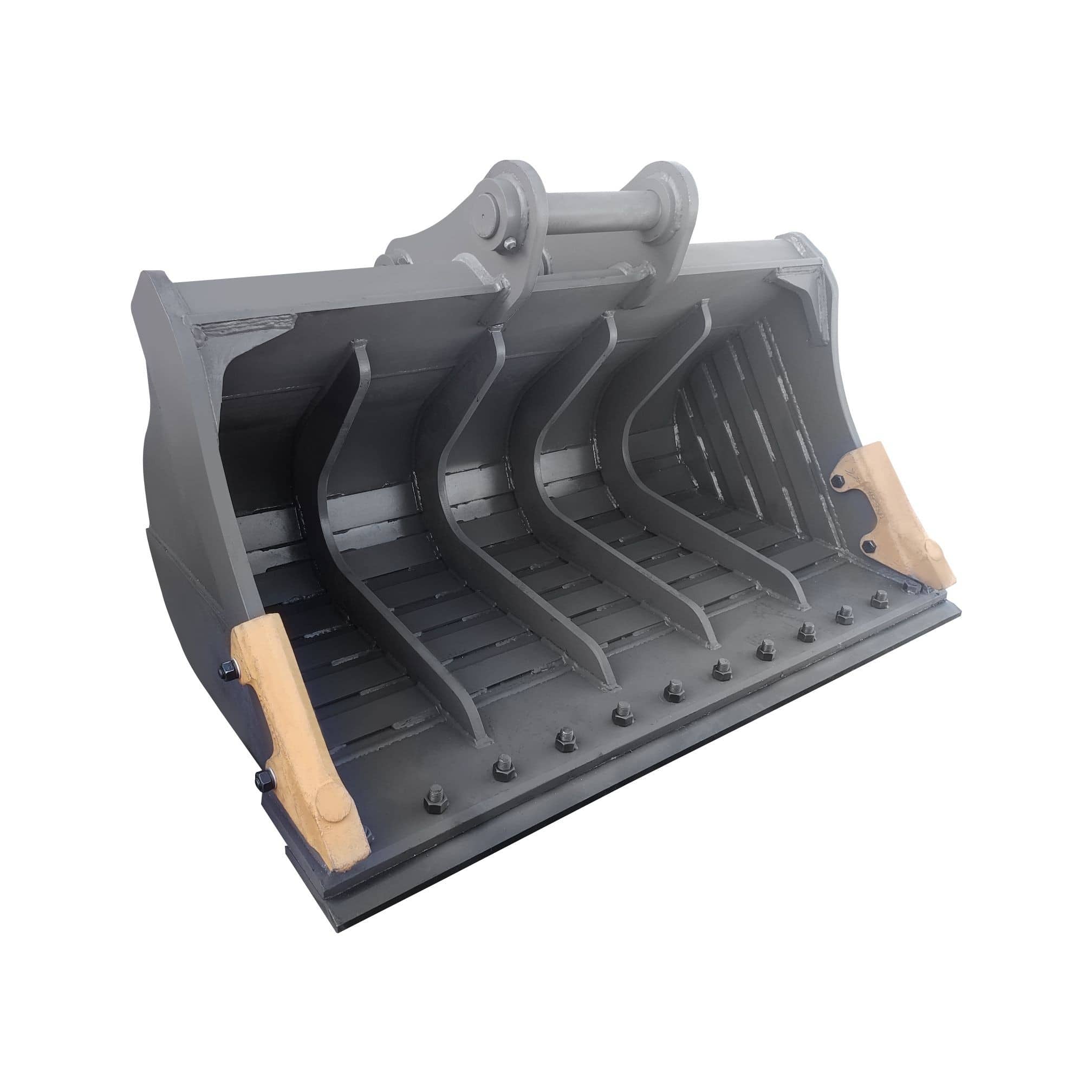

50T Class Coal Bulking Bucket
Steelserv, New Zealand Steel, Glenbrook Steel Mill, Auckland
2450mm wide, Heaped Capacity 3.4m3, Weight 2310kg

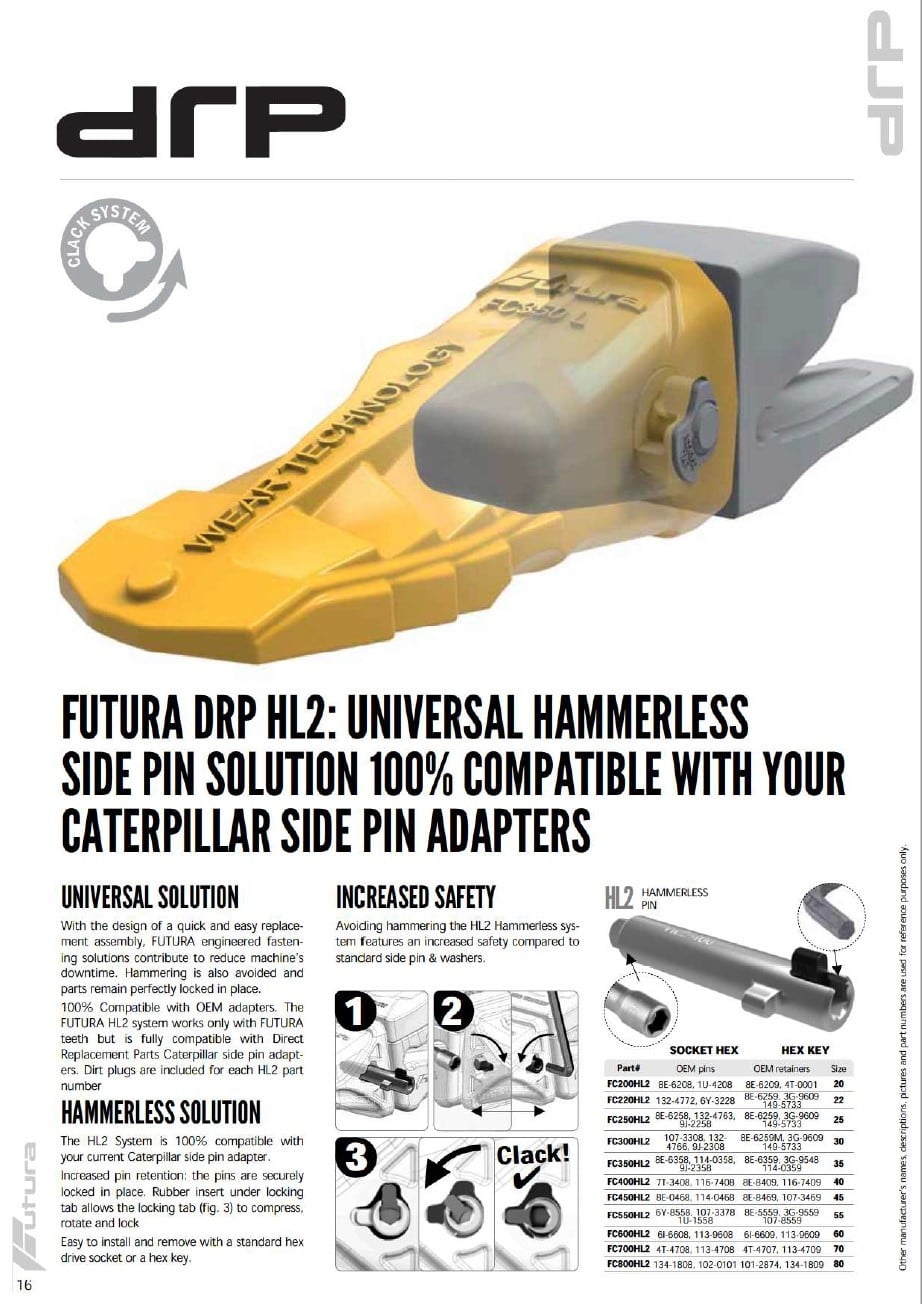

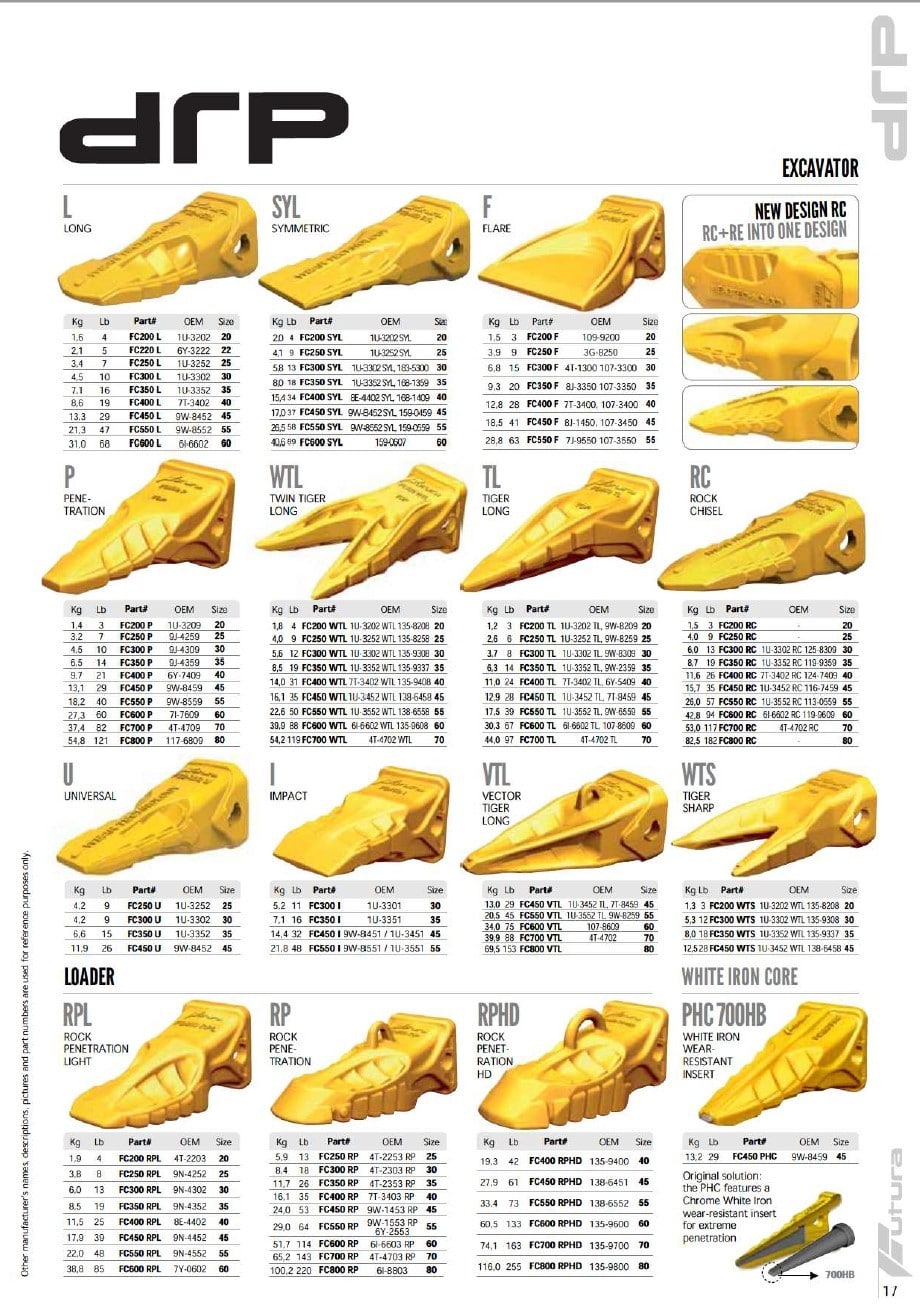

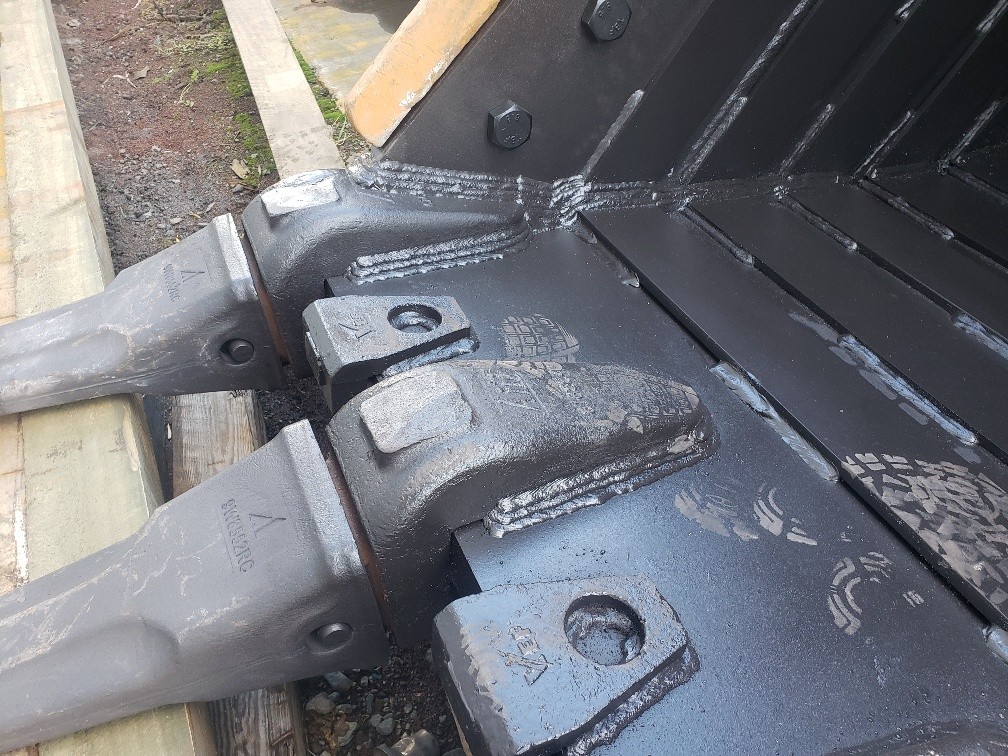

FUTURA HAMMERLESS TEETH 100% COMPATIBLE WITH CAT J-SERIES
Futura DRP HL2 teeth are fully compatible with Cat J-Series adaptors.Simply place the tooth over the adaptor, slide the pin through and twist the pin with either an allen key or socket.
For more information on the Futura product visit:https://byg.com/en/products/teeth-and-adapters/
.jpg)
.jpg)
